HE4HNWPR/04 Eurostrip, 4 pole,10mm spacing, standoff, 30A, 600V, 24-10AWG
HE4HNWPR/04
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection

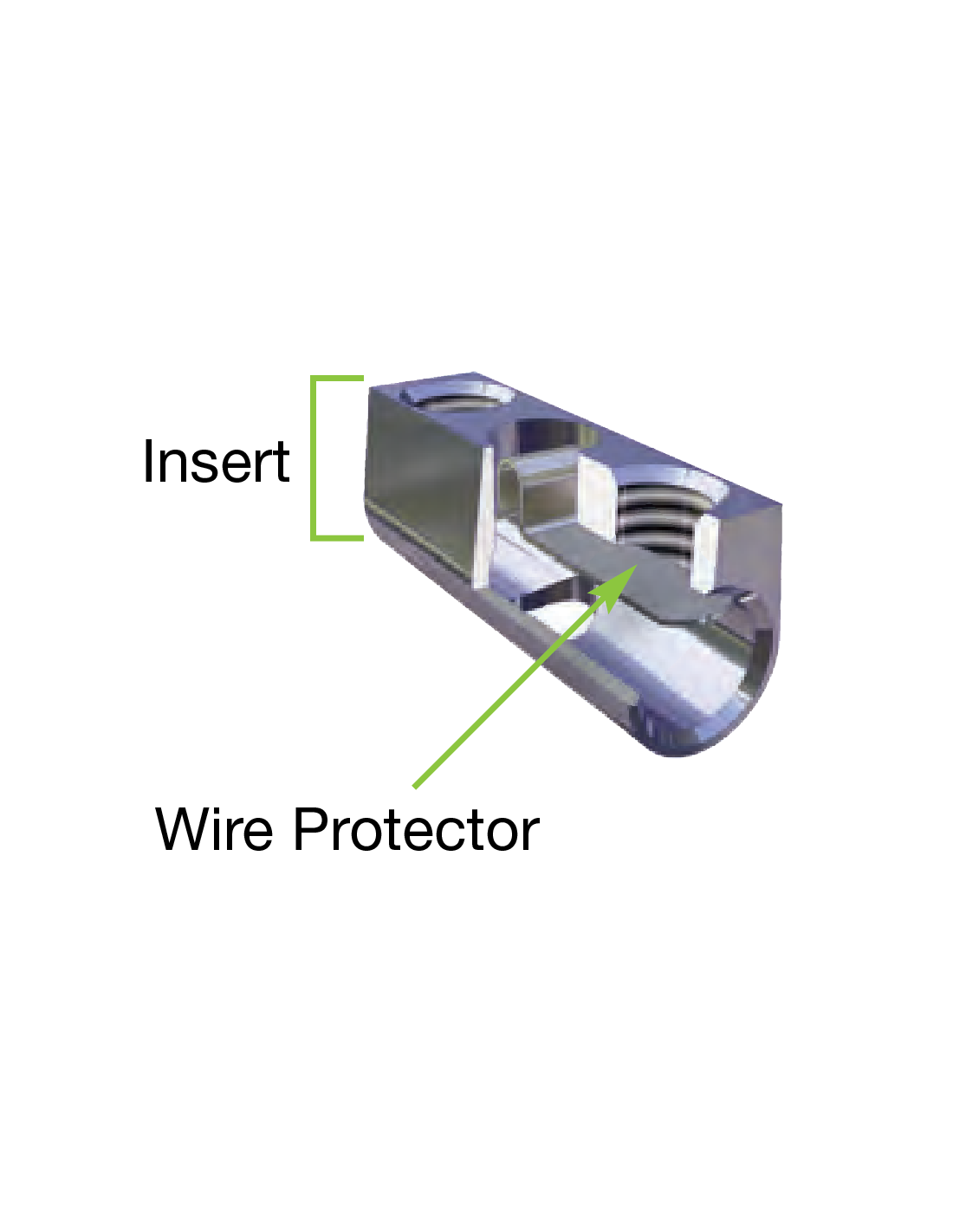

- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage
HE 4H Series with wire protector
DATA Sheet Link
Eurostrip, 4 pole,10mm spacing, standoff, 30A, 600V, 24-10AWG
- Eurostrip UL Recognized Current Ratings
- 30 A
- Eurostrip UL Recognized Voltage Rating
- 600 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 10 mm
- Eurostrip UL Recognized Wire Size
- 24-12 AWG
- Eurostrip IEC Wire Size
- 2.5-4 mm²
- Eurostrip IEC Voltage Rating
- 500 V
- Eurostrip IEC Current Rating
- 10 A
- Eurostip Color
- White
