    FEATURES

    • Quick and Efficient Wire-to-Wire connection solution
    • Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
    • Touch-proof design to eliminate shorts
    • Available in 12 poles or precut to required number of poles
    • Easy to cut to length by using hacksaw or utility knife
    • Safe, Gas-tight connection
    • Reliable connection utilizing a precision machined tubular screw clamp insert
    • Accessories for convenient wire installation and usage

    HE 10 Series with wire protector

    DATA Sheet



    Eurostrip, 10 pole,15mm spacing, flatbase, 50A, 300V, 18-8AWG

    Eurostrip UL Recognized Current Ratings
    50 A
    Eurostrip UL Recognized Voltage Rating
    300 V
    Eurostrip Mounting
    Fixed Through
    Eurostrip Insert

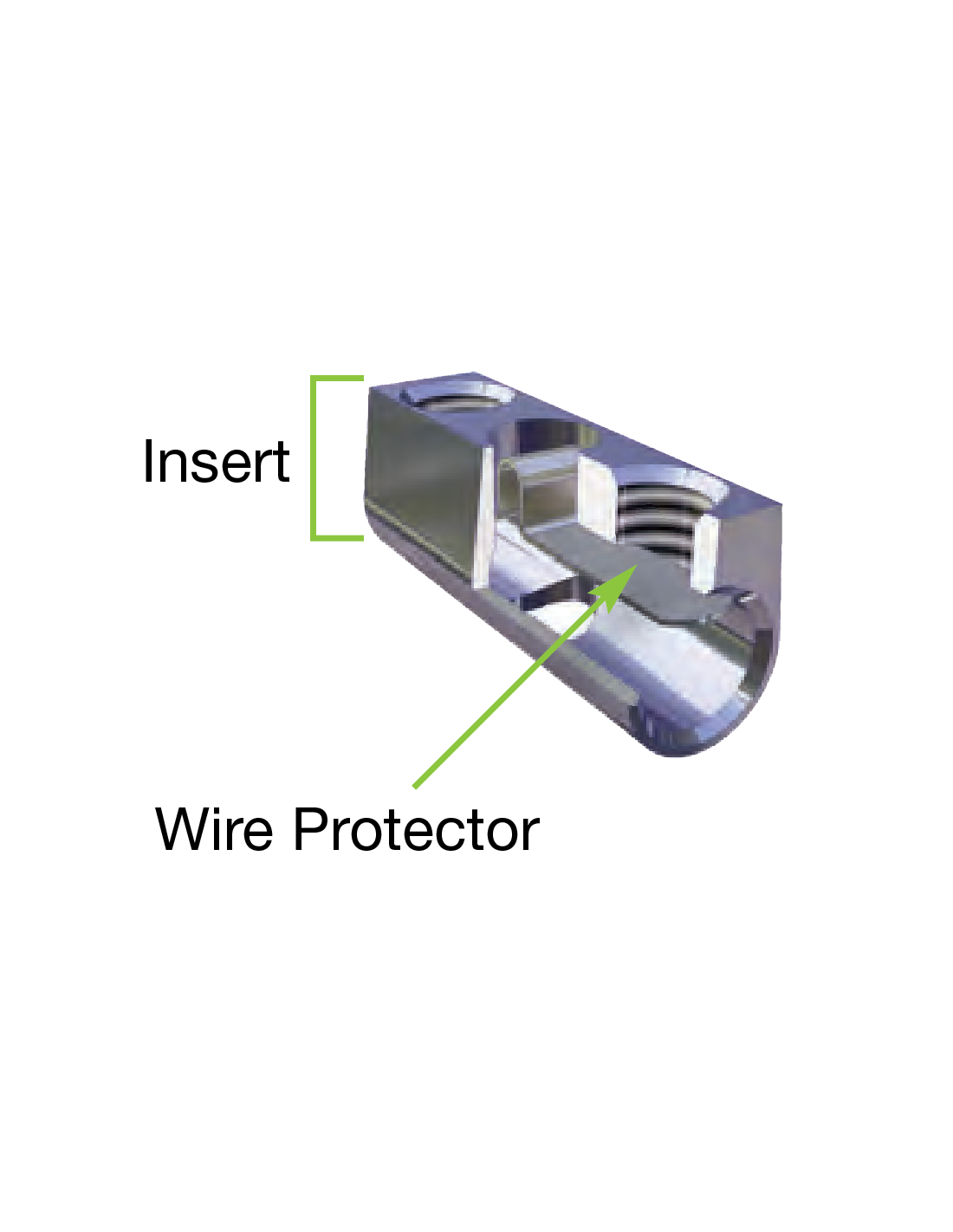

    Wire Protector

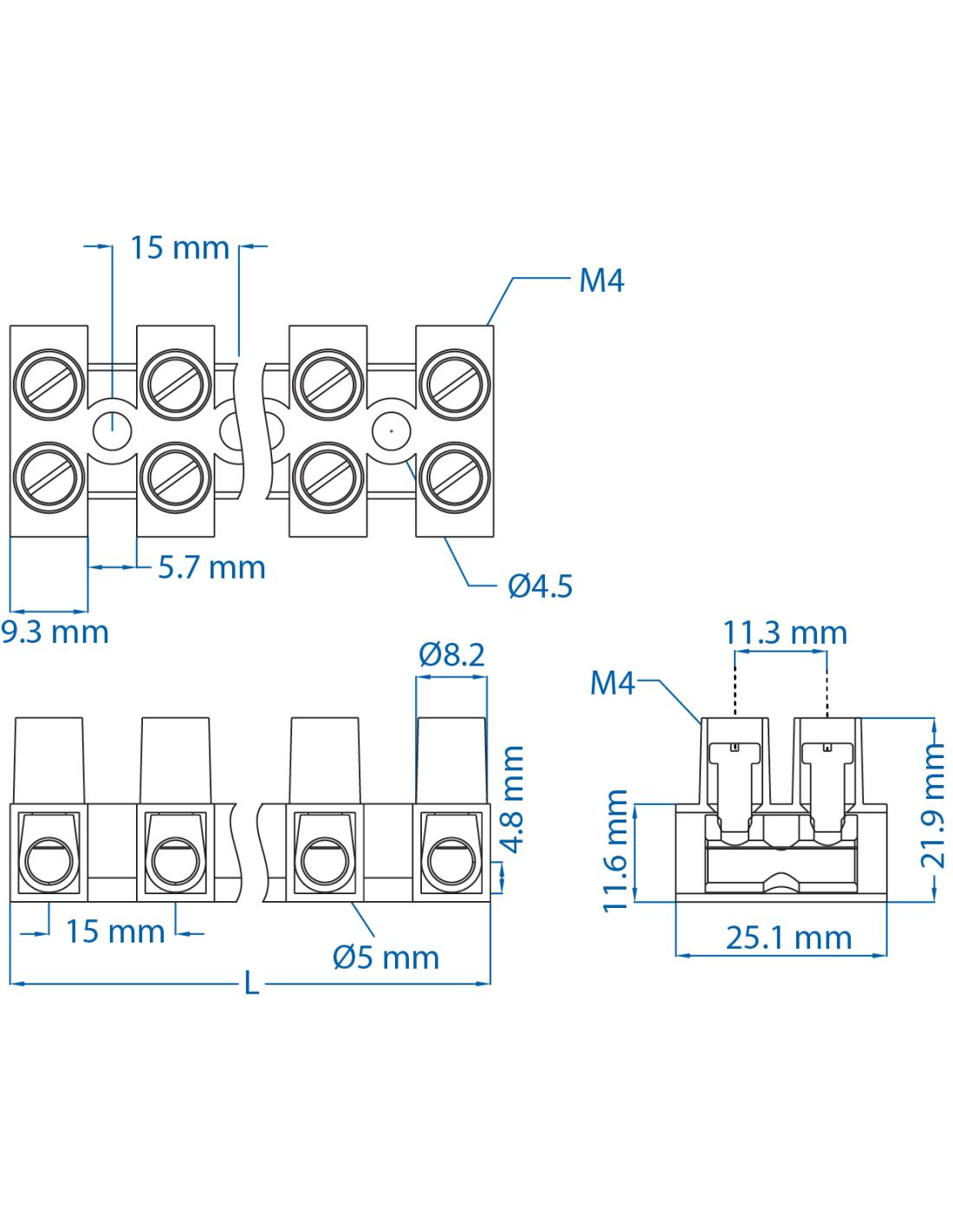

    Eurostrip Pin Spacing
    15 mm
    Eurostrip UL Recognized Wire Size
    18-8 AWG
    Eurostrip IEC Wire Size
    6-10 mm²
    Eurostrip IEC Voltage Rating
    400 V
    Eurostrip IEC Current Rating
    25 A
    Eurostip Color
    White
    HE10WPR/10
