HE6WPR/08/BK Eurostrip, 8 pole,12mm spacing, flat base, 40A, 300V, 20-10AWG, Black
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage

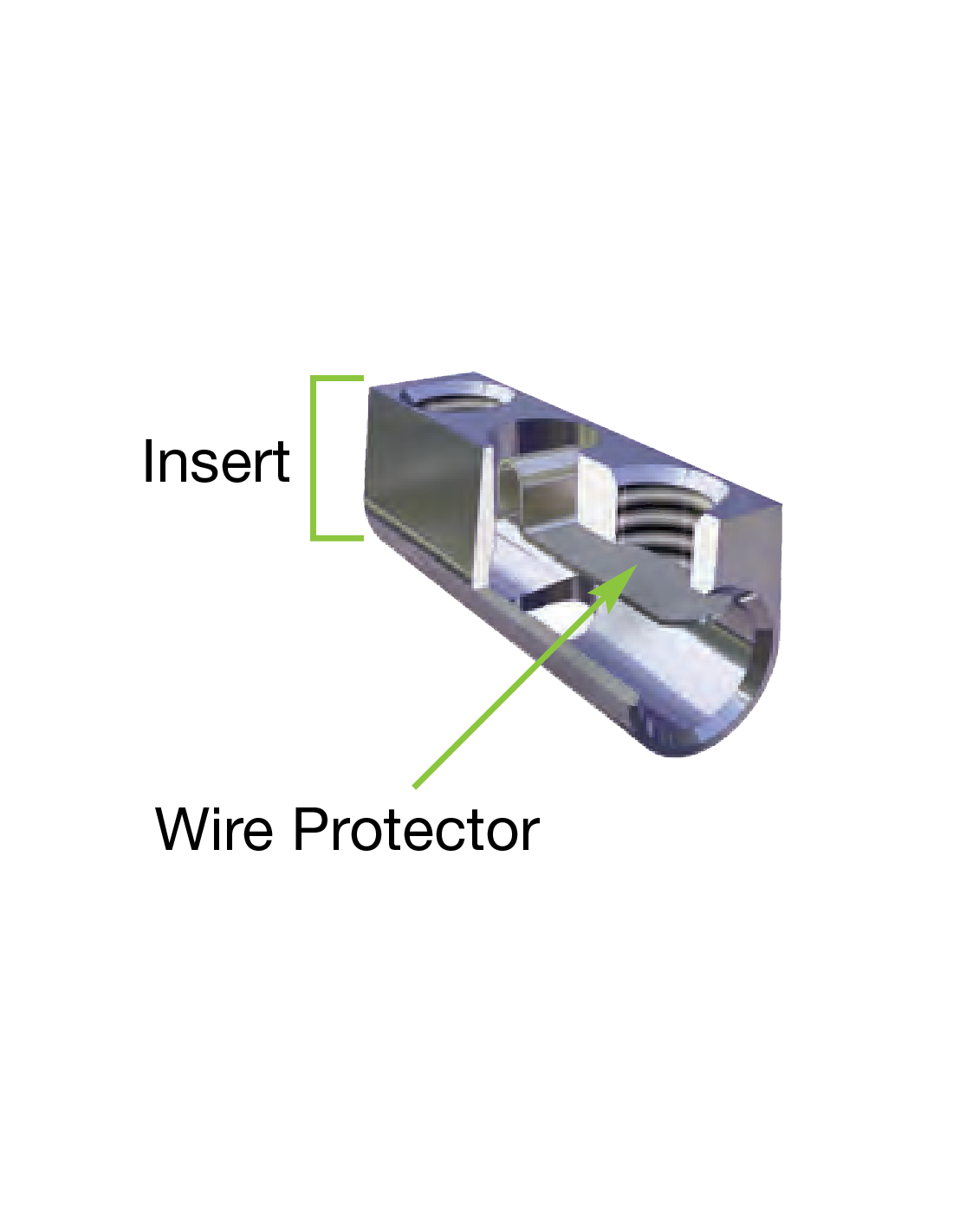

HE 6 Series with wire protector
DATA Sheet
Eurostrip, 8 pole,12mm spacing, flat base, 40A, 300V, 20-10AWG, Black
- Eurostrip UL Recognized Current Ratings
- 40 A
- Eurostrip UL Recognized Voltage Rating
- 300 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 12 mm
- Eurostrip UL Recognized Wire Size
- 20-10 AWG
- Eurostrip IEC Wire Size
- 4-6 mm²
- Eurostrip IEC Voltage Rating
- 400 V
- Eurostrip IEC Current Rating
- 16 A
- Eurostip Color
- Black
HE6WPR/08/BK
