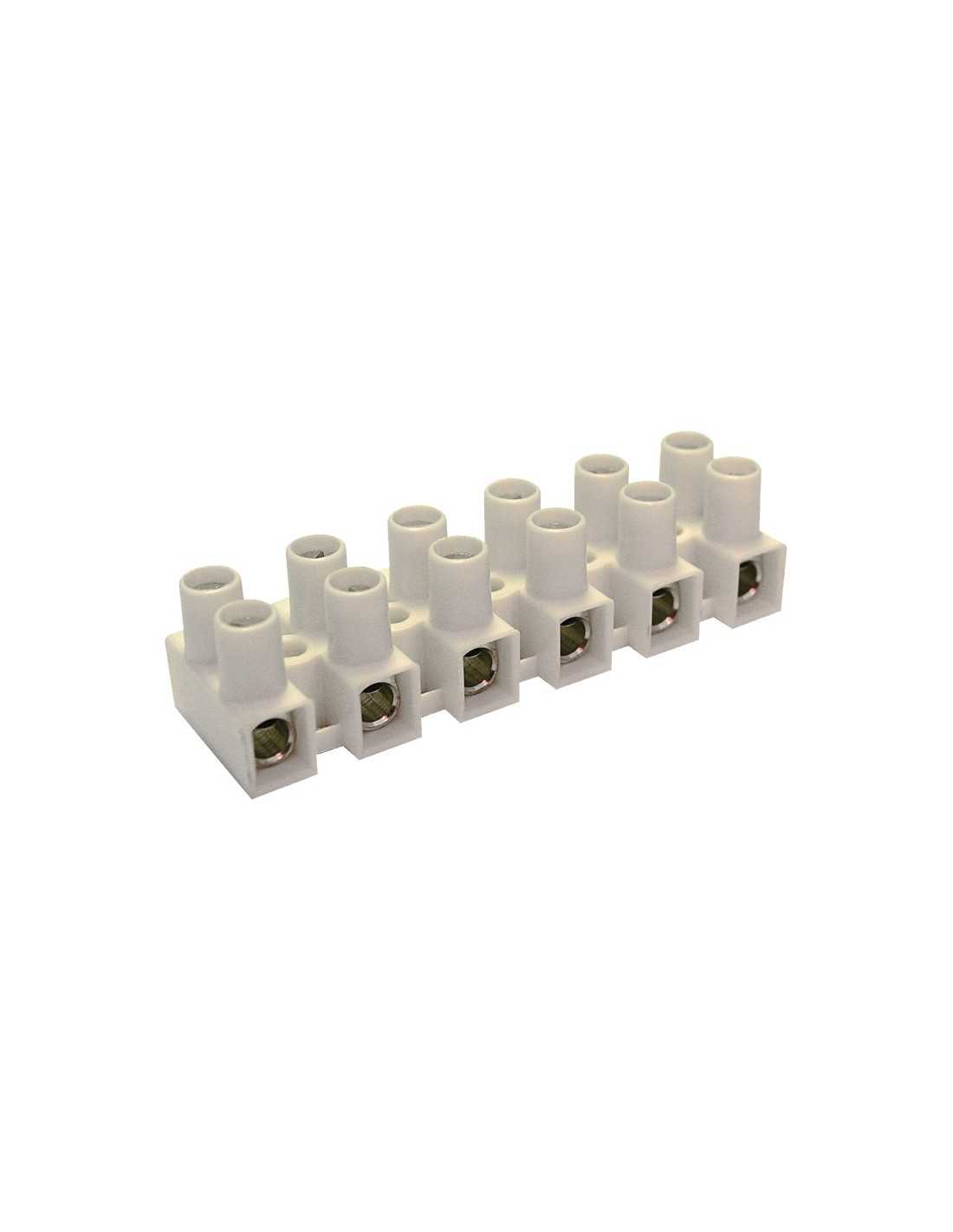

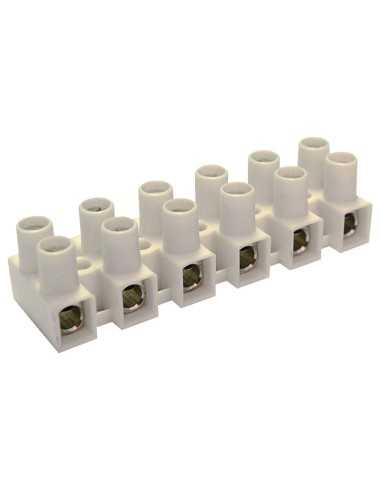

HE1WPR/02 Eurostrip, 2 pole, 8mm spacing, flat base, 20A, 300V, 24-12AWG
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage

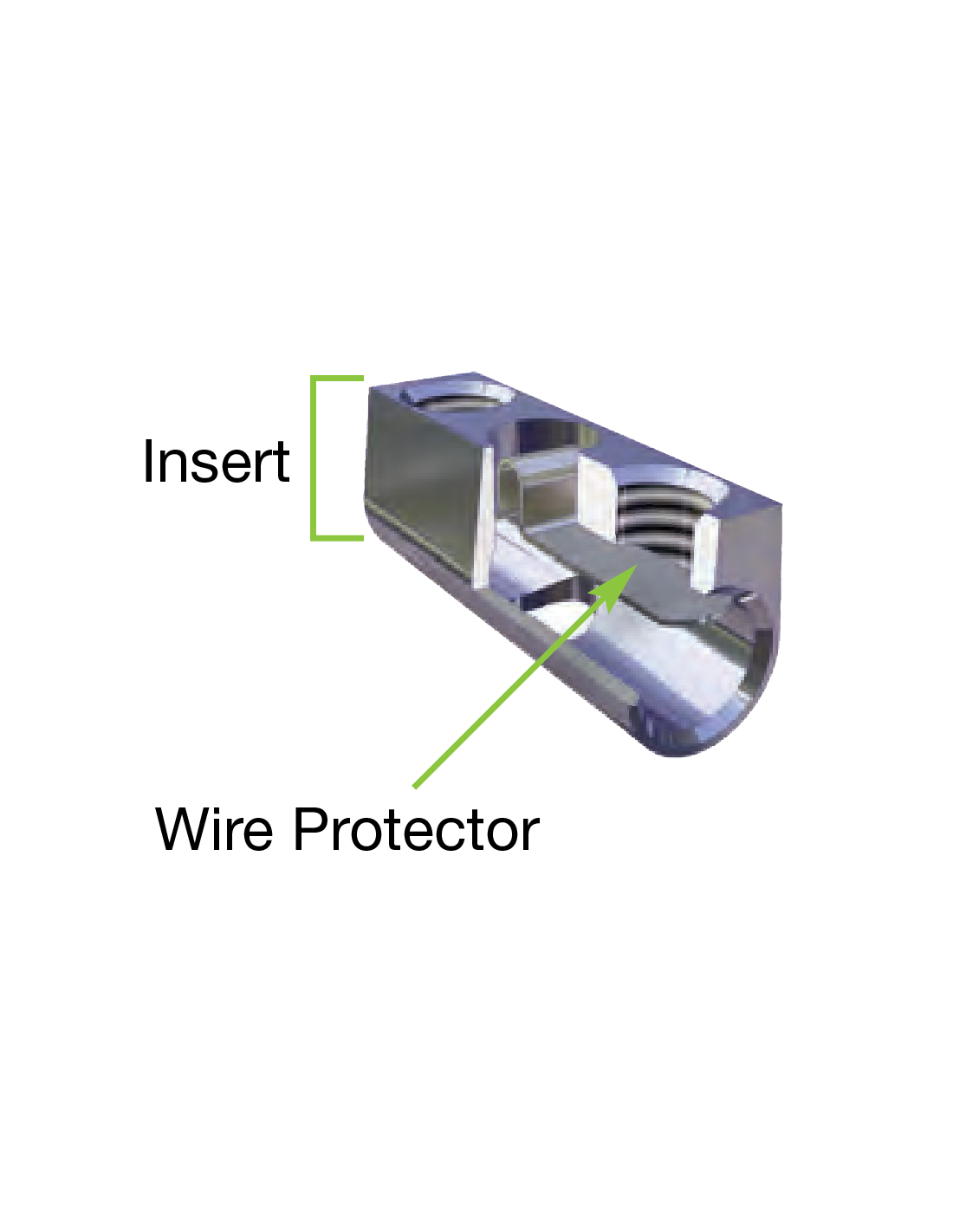

HE 1 Series with wire protector
DATA Sheet
Eurostrip, 2 pole, 8mm spacing, flat base, 20A, 300V, 24-12AWG
- Eurostrip UL Recognized Current Ratings
- 20 A
- Eurostrip UL Recognized Voltage Rating
- 300 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 8 mm
- Eurostrip UL Recognized Wire Size
- 24-12 AWG
- Eurostrip IEC Wire Size
- 1-2.5 mm²
HE1WPR/02
