40.509 Terminal Strip, Panel Mount, ATSF6/2, 9 Pole, 12mm spacing, 600V, 40A
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection

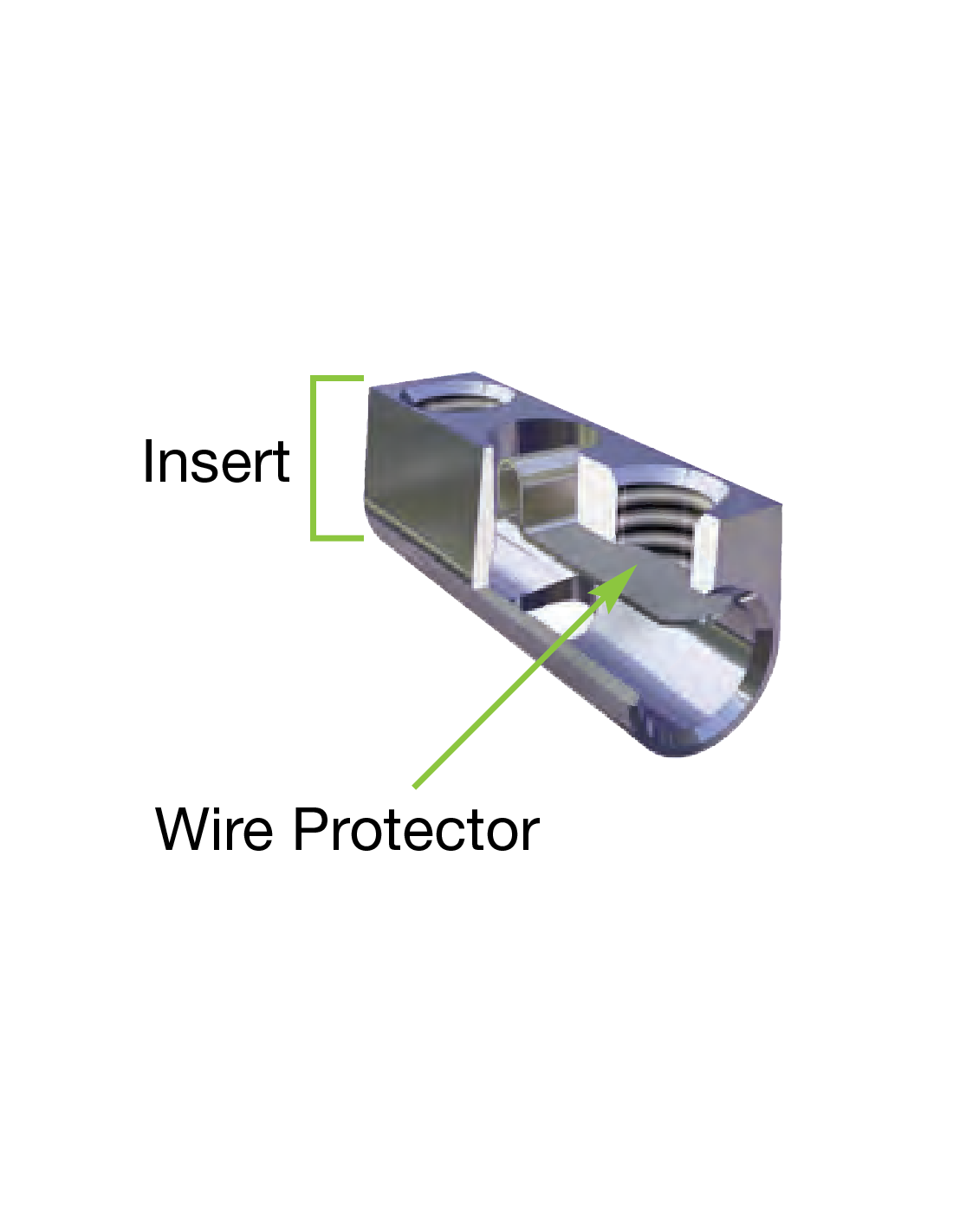

- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage
ATSF 6 Series with wire protector - Center Barrier
DATA Sheet link.
Terminal Strip, Panel Mount, ATSF6/2, 9 Pole, 12mm spacing, 600V, 40A
- Eurostrip UL Recognized Current Ratings
- 40 A
- Eurostrip UL Recognized Voltage Rating
- 600 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 12 mm
- Eurostrip UL Recognized Wire Size
- 20-8 AWG
- Eurostrip CSA Wire size
- 18-10 AWG
- Eurostrip IEC Wire Size
- 0.2-6 mm²
- Eurostrip CSA Voltage Rating
- 600 V
- Eurostrip IEC Voltage Rating
- 400 V
- Eurostrip CSA Current Rating
- 40 A
- Eurostrip IEC Current Rating
- 44 A
40.509
