    FEATURES

    • Quick and Efficient Wire-to-Wire connection solution
    • Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
    • Touch-proof design to eliminate shorts
    • Available in 12 poles or precut to required number of poles
    • Easy to cut to length by using hacksaw or utility knife
    • Safe, Gas-tight connection

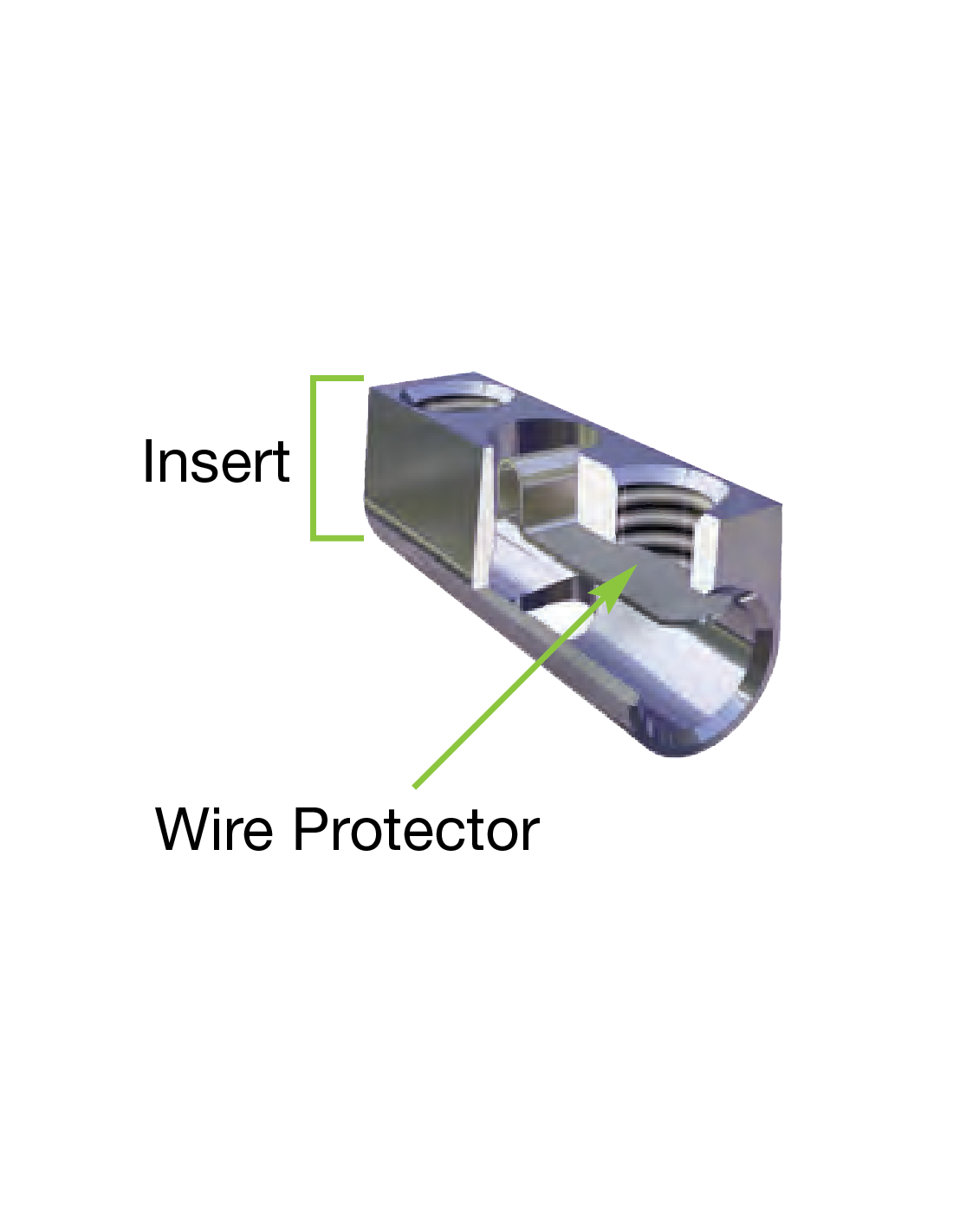

    • Reliable connection utilizing a precision machined tubular screw clamp insert
    • Accessories for convenient wire installation and usage

    ATSF 6 Series with wire protector - Center Barrier

    DATA Sheet link.



    Terminal Strip, Panel Mount, ATSF6/2, 7 Pole, 12mm spacing, 600V, 40A

    Eurostrip UL Recognized Current Ratings
    40 A
    Eurostrip UL Recognized Voltage Rating
    600 V
    Eurostrip Mounting
    Fixed Through
    Eurostrip Insert
    Wire Protector
    Eurostrip Pin Spacing
    12 mm
    Eurostrip UL Recognized Wire Size
    20-8 AWG
    Eurostrip CSA Wire size
    18-10 AWG
    Eurostrip IEC Wire Size
    0.2-6 mm²
    Eurostrip CSA Voltage Rating
    600 V
    Eurostrip IEC Voltage Rating
    400 V
    Eurostrip CSA Current Rating
    40 A
    Eurostrip IEC Current Rating
    44 A
    40.507
