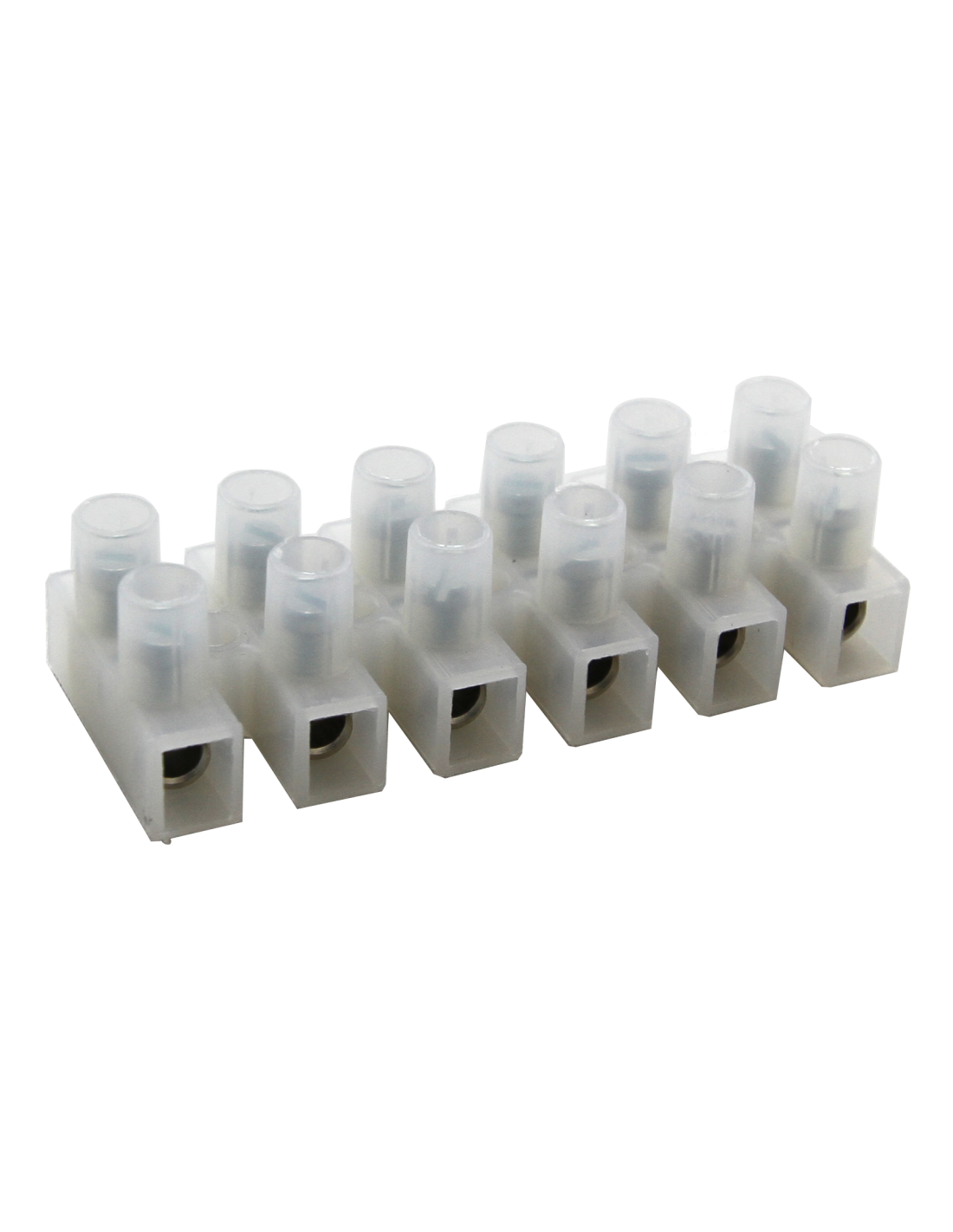

40.212 Terminal Strip, Panel Mount, ATS2.5/2, 12 Pole, 10mm spacing, 300V, 30A
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage
ATS 2.5 Series with wire protector - Center Barrier
DATA Sheet link.
Terminal Strip, Panel Mount, ATS2.5/2, 12 Pole, 10mm spacing, 300V, 30A
- Eurostrip UL Recognized Current Ratings
- 30 A
- Eurostrip UL Recognized Voltage Rating
- 300 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 10 mm
- Eurostrip UL Recognized Wire Size
- 22-10 AWG
- Eurostrip CSA Wire size
- 18-12 AWG
- Eurostrip IEC Wire Size
- 0.2-4 mm²
- Eurostrip CSA Voltage Rating
- 300 V
- Eurostrip IEC Voltage Rating
- 400 V
- Eurostrip CSA Current Rating
- 30 A
- Eurostrip IEC Current Rating
- 26 A
40.212
