40.006 Terminal Strip, Panel Mount, ATS1.5/6, 6 Pole, 8mm spacing, 300V, 20A
FEATURES
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Available in 12 poles or precut to required number of poles
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage

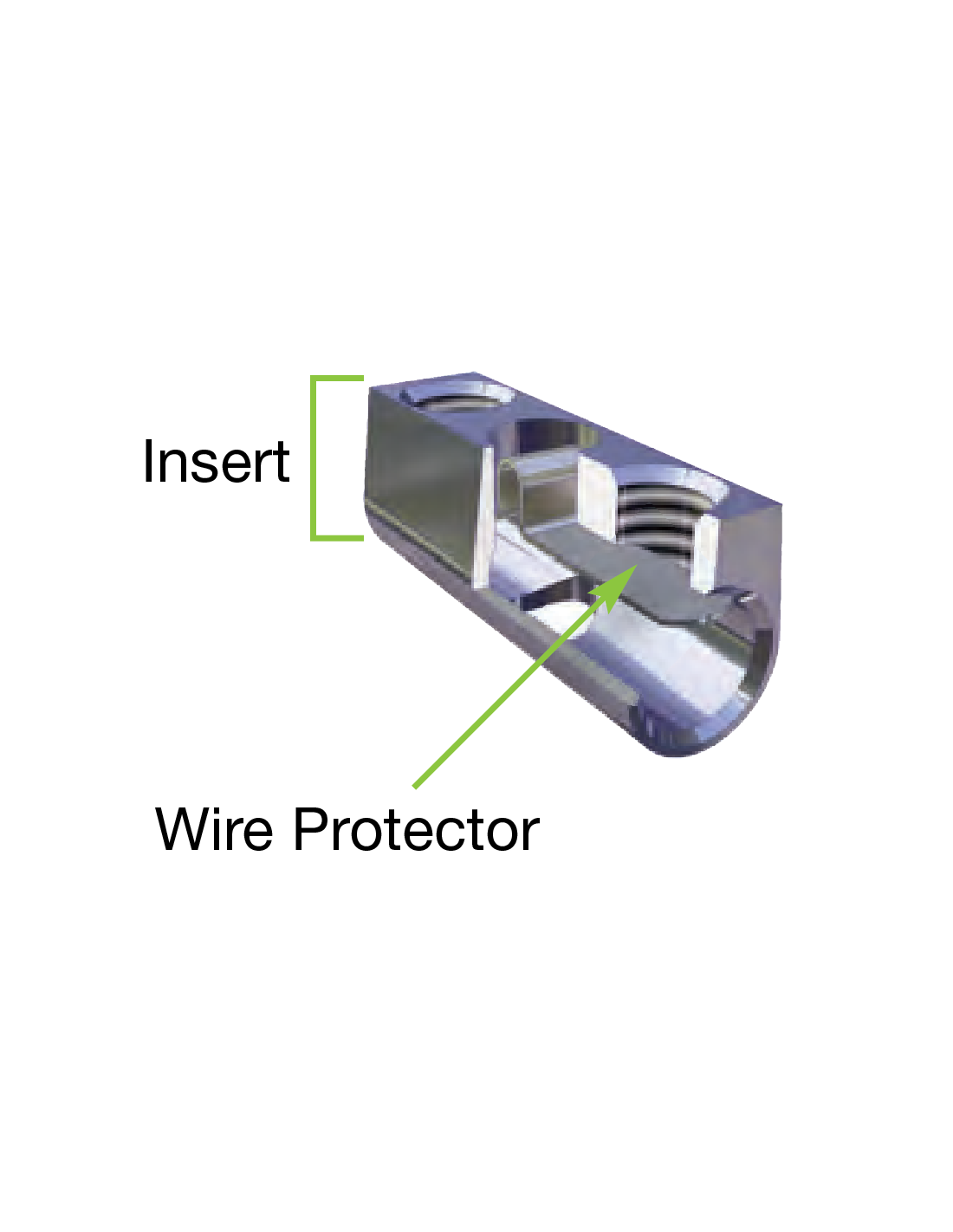

ATS 1.5 Series with wire protector - Center Barrier
DATA Sheet link.

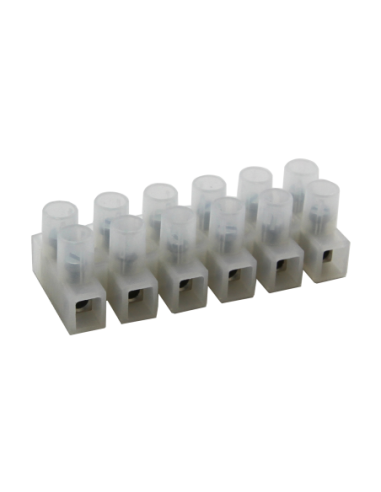

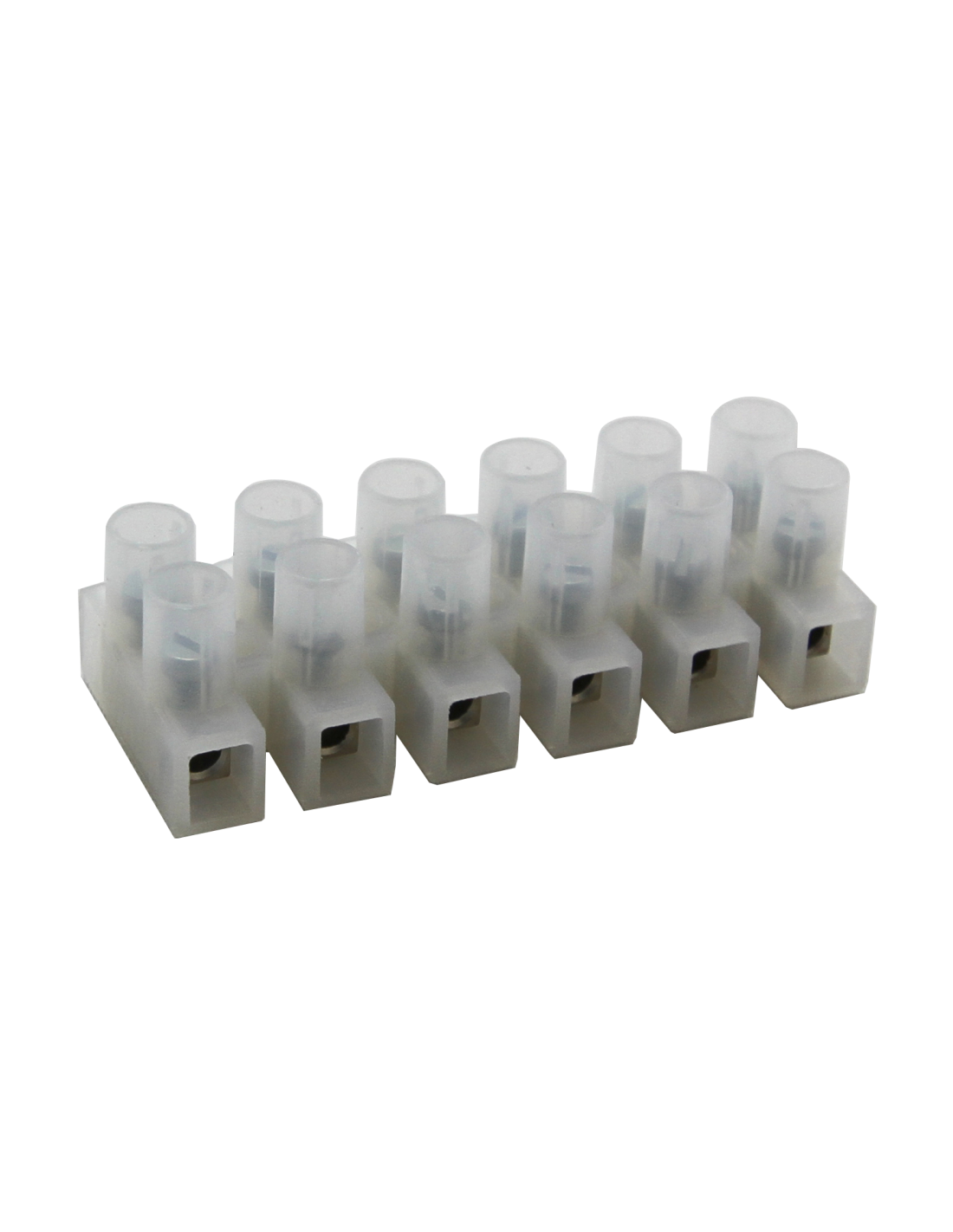

Terminal Strip, Panel Mount, ATS1.5/6, 6 Pole, 8mm spacing, 300V, 20A
- Eurostrip UL Recognized Current Ratings
- 20 A
- Eurostrip UL Recognized Voltage Rating
- 300 V
- Eurostrip Mounting
- Fixed Through
- Eurostrip Insert
- Wire Protector
- Eurostrip Pin Spacing
- 8 mm
- Eurostrip UL Recognized Wire Size
- 22-12 AWG
- Eurostrip CSA Wire size
- 22-16 AWG
- Eurostrip IEC Wire Size
- 0.2-1.5 mm²
- Eurostrip CSA Voltage Rating
- 300 V
- Eurostrip IEC Voltage Rating
- 400 V
- Eurostrip CSA Current Rating
- 15 A
- Eurostrip IEC Current Rating
- 15 A
40.006
