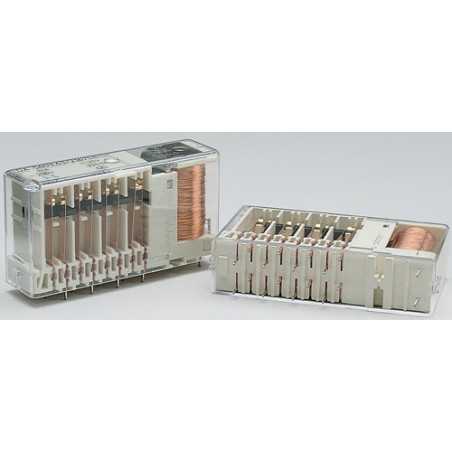

    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC
    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC
    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC
    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC
    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC
    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC

    Safety Relay : OA 5603 : 10A : 110V : 4 NO - 4 NC

    Contact Material

    Related products and accessories


    Current Rating
    10A
    Rated Voltage
    110V
    Contact Arrangement
    4 NO - 4 NC
    Voltage Range
    77.0- 176.0V
    Protection Rating
    RTIII solder line proof
    Series
    OA 5603
    Output Contacts
    8
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    9500Ω
    56.OA03.1144C
