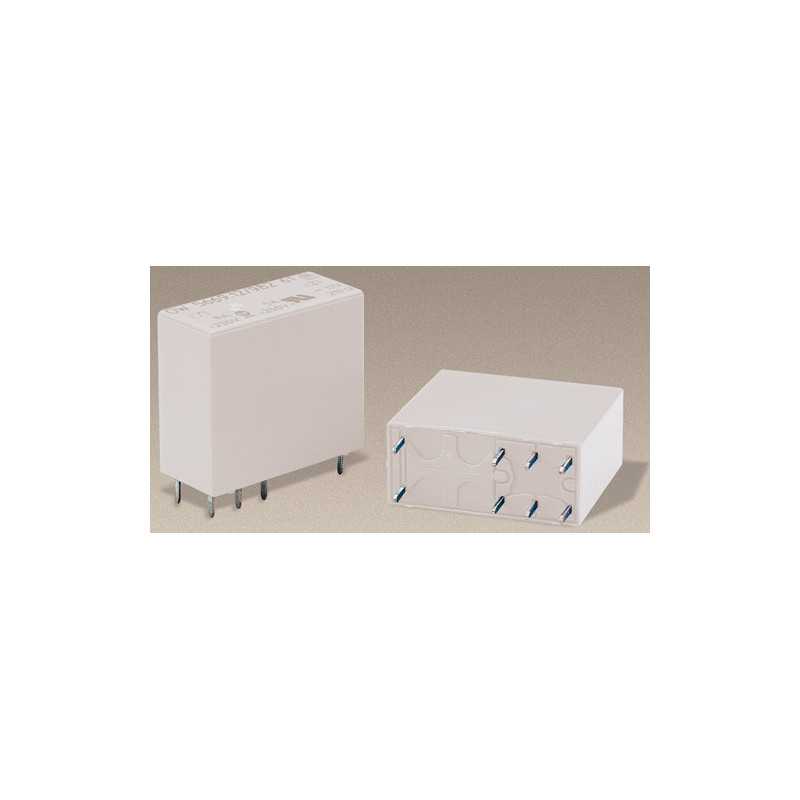

    Safety Relay : OA 5669 : 8A : 20V : 2 CO
    Safety Relay : OA 5669 : 8A : 20V : 2 CO
    Safety Relay : OA 5669 : 8A : 20V : 2 CO
    Safety Relay : OA 5669 : 8A : 20V : 2 CO
    Safety Relay : OA 5669 : 8A : 20V : 2 CO
    Safety Relay : OA 5669 : 8A : 20V : 2 CO

    Safety Relay : OA 5669 : 8A : 20V : 2 CO

    Contact Material

    Current Rating
    8A
    Rated Voltage
    20V
    Contact Arrangement
    2 CO (DPDT)
    Voltage Range
    16.0- 32.0V
    Protection Rating
    RTIII solder line proof
    Series
    OA 5669
    Output Contacts
    2
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    580Ω
    56.OA69.2000C
