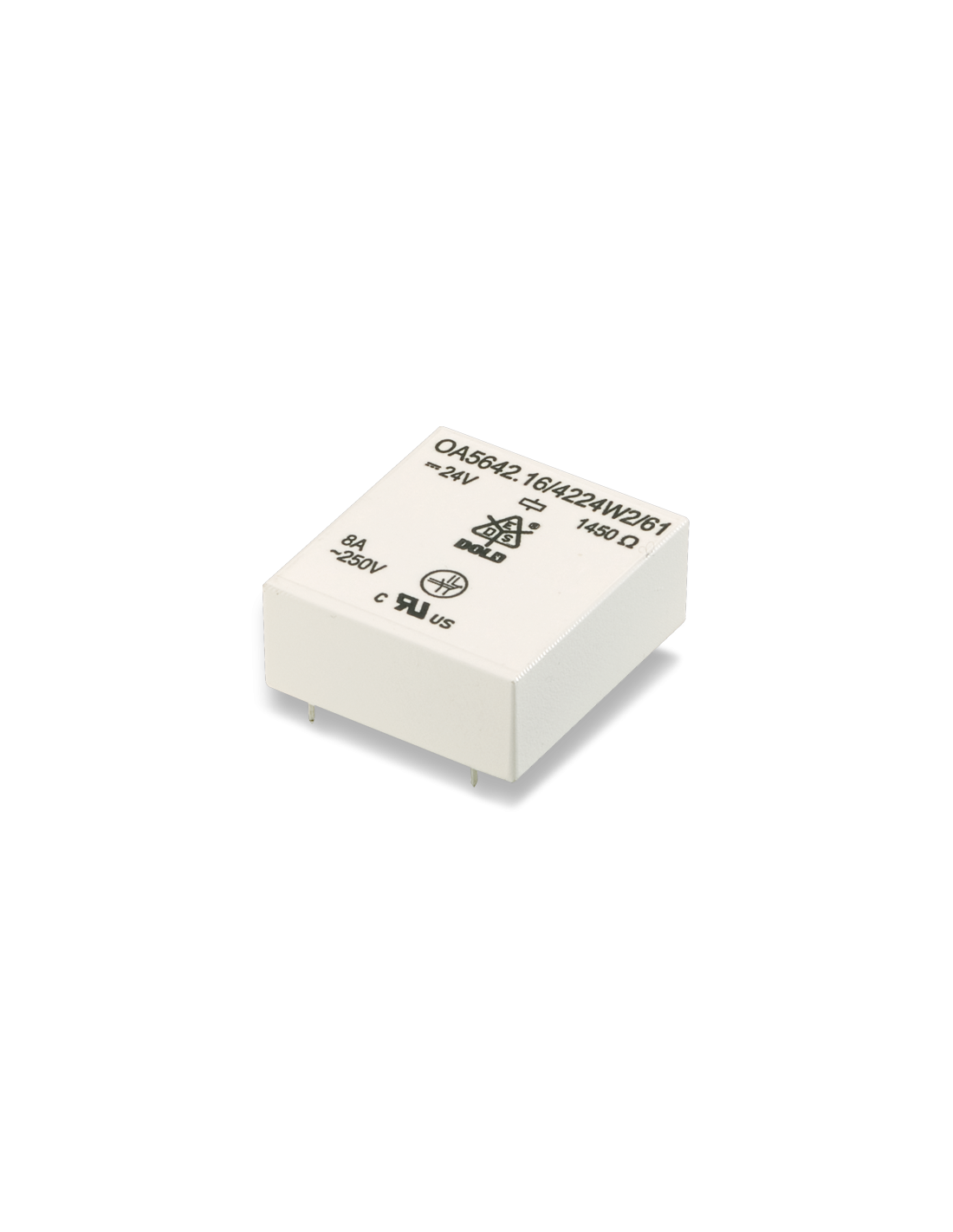

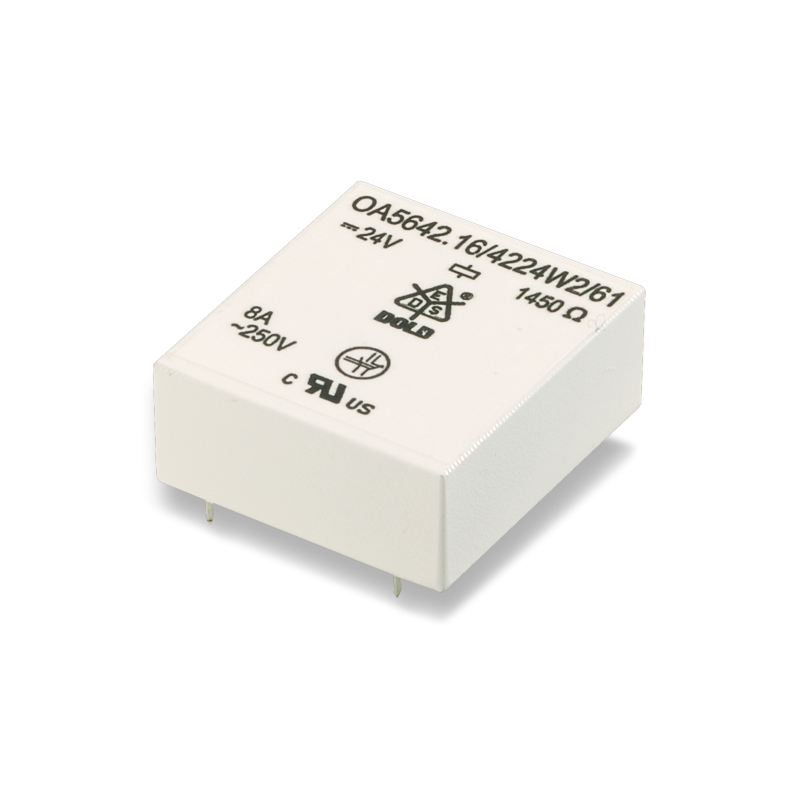

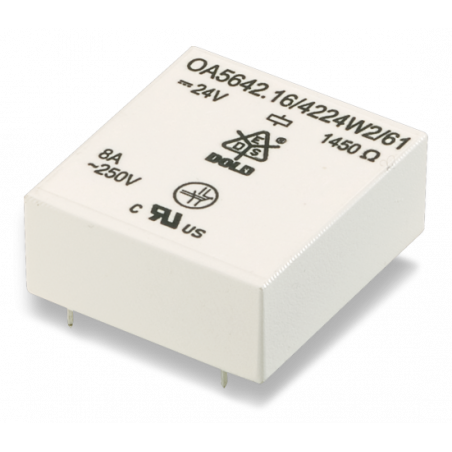

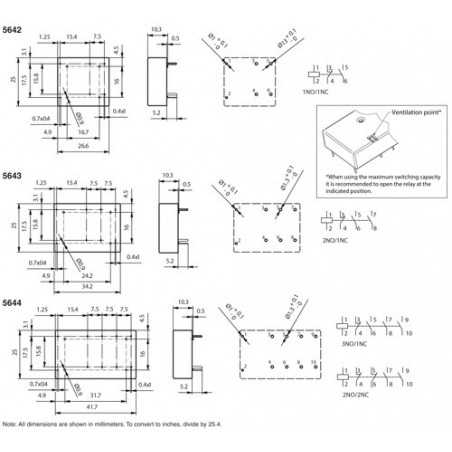

    Safety Relay : OA 5642 : 8A : 48V : 1 NO - 1 NC

    Contact Material

    Current Rating
    8A
    Rated Voltage
    48V
    Contact Arrangement
    1 NO - 1 NC
    Voltage Range
    33.6- 62.4V
    Protection Rating
    RTIII wash proof
    Series
    OA 5642
    Output Contacts
    2
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    6000Ω
    56.OA42.4811C
