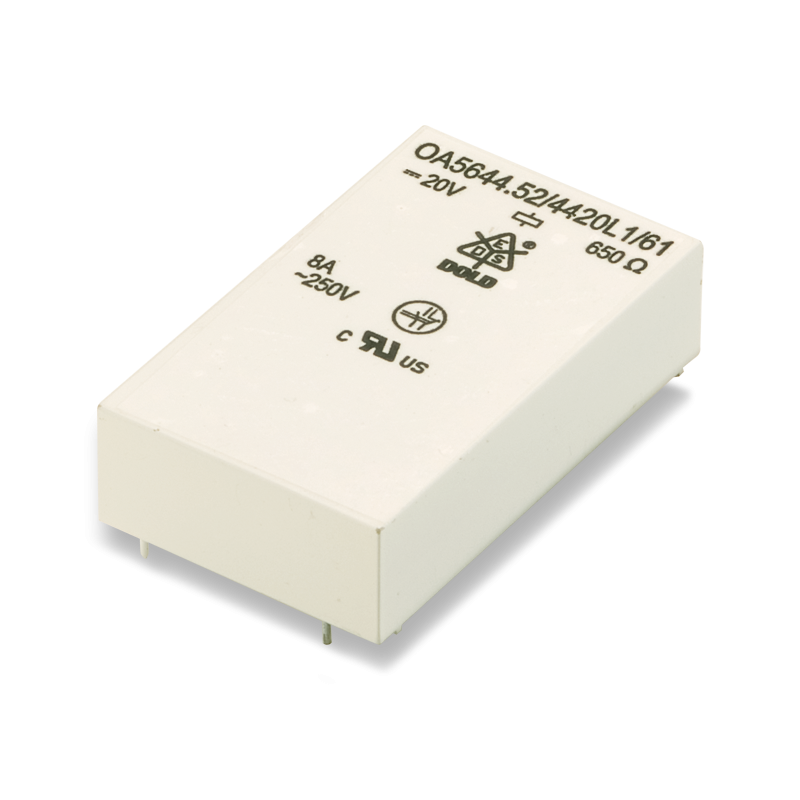

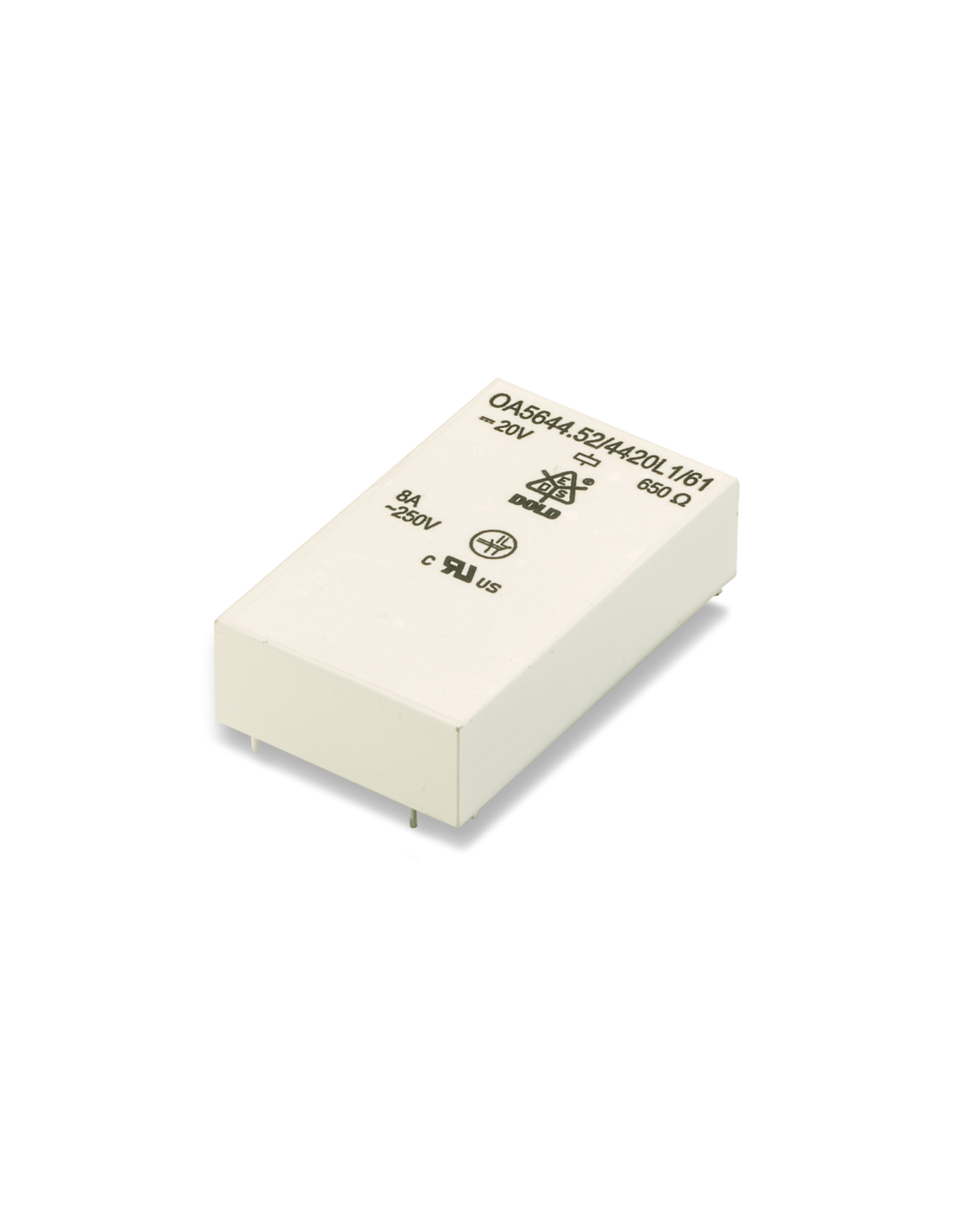

    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC
    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC
    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC
    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC
    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC
    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC

    Safety Relay : OA 5644 : 8A : 21V : 2 NO - 2 NC

    Contact Material

    Current Rating
    8A
    Rated Voltage
    21V
    Contact Arrangement
    2 NO - 2 NC
    Voltage Range
    15.0- 27.3V
    Protection Rating
    RTIII wash proof
    Series
    OA 5644
    Output Contacts
    4
    International Approvals
    TUV
    UL
    cUL
    Force-guided Contacts
    All gold flash plated
    Coil Resistance (10%)
    680Ω
    56.OA44.2122C
