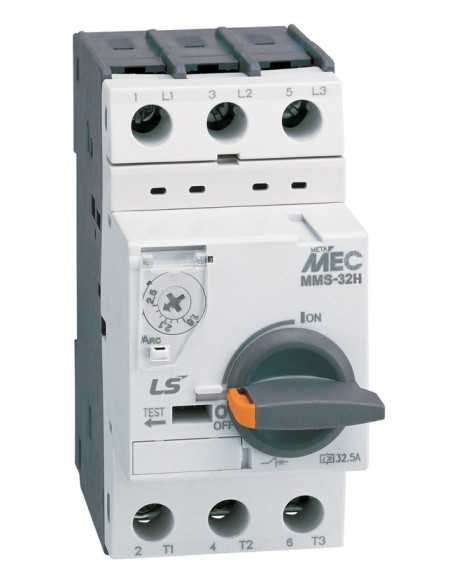

MMS-32H-40A Manual Motor Starter
MMS-32H-40A - Manual Motor Starter
- UL508 (Manual Motor Controller)
- UL508 (Type E self-protected Manual Motor Controller)
- CSA C22.2 No.14
- IEC 60947-2 & IEC 60947-4-2
Features
- DIN Rail and Screw Mounting
- Lockable Handle in OFF position
- Finger safe terminals
- Class 10 thermal Overload protectio
- Trip test feature
- Phase failure protection
- Adjustable thermal release
- Type F combination Manual Motor Controller (with MC-Series Contactor)
Wide range of common accessories
- Auxiliary contacts
- Alarm Switch
- Undervoltage/ Shunt Trip
- Rotary Handle
- Busbar
- MC-Series Mounting Adapter
DATA SHEET

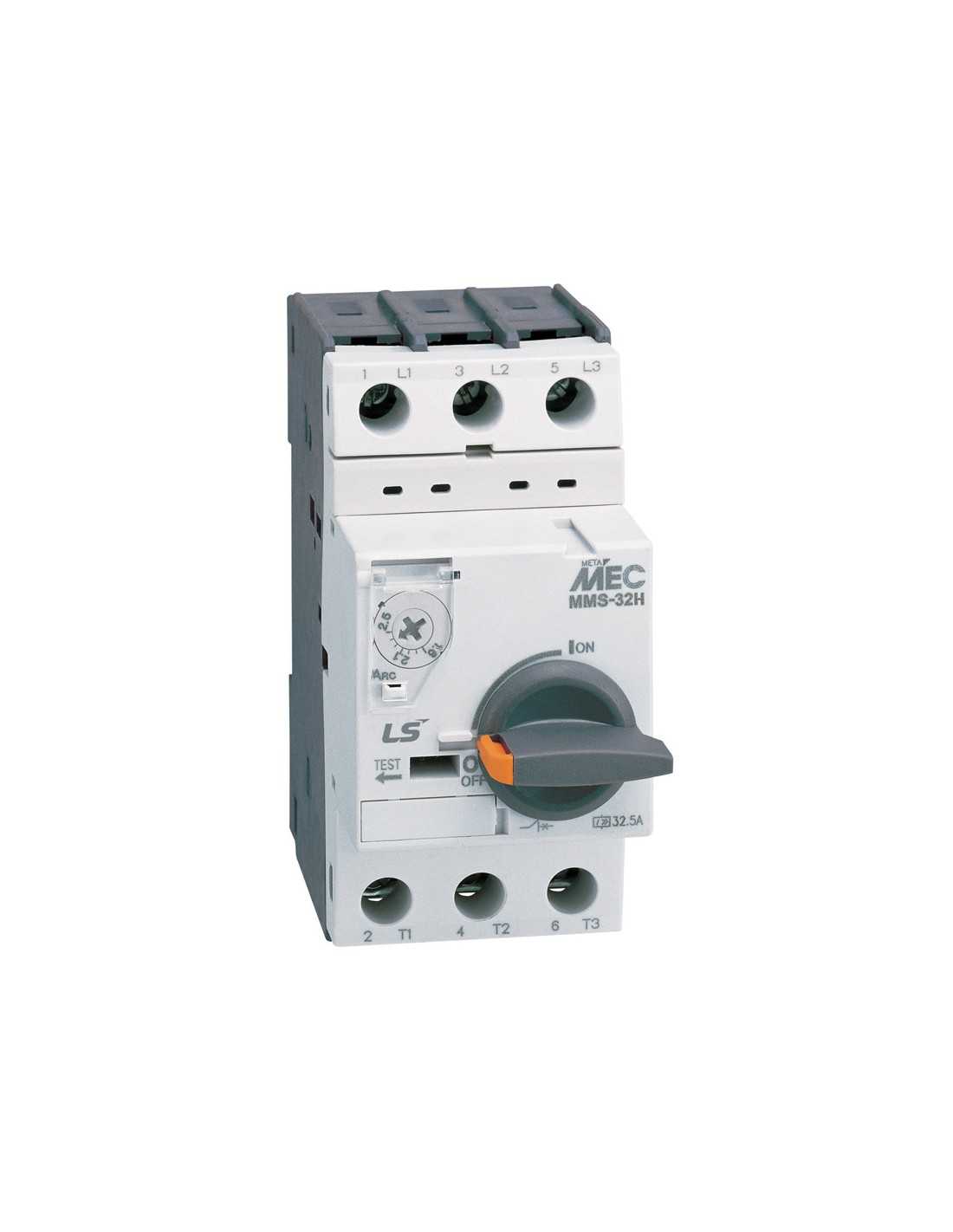

< Product photo may vary depending on part number selection.
- Manual Motor Starter
- Yes
- MMS - Rated Operational Current
- 40 A
- MMS - Thermal Release Adjustment Range
- 28...40 A
- MMS - Magnetic Release Operating Current
- 520 A
- MMS - HP - Single Phase (115V)
- 3
- MMS - HP - Single Phase (230V)
- 7 1/2
- MMS - HP - Three Phase (200V)
- 10
- MMS - HP - Three Phase (230V)
- 15
- MMS - HP - Three Phase (460V)
- 30
- MMS - HP - Three Phase (575V)
- 40
- MMS - Interrupting Capacity (kA) - 240V
- 100
- MMS - Interrupting Capacity (kA) - 480V
- 30
- MMS - Interrupting Capacity (kA) - 600V
- 10
