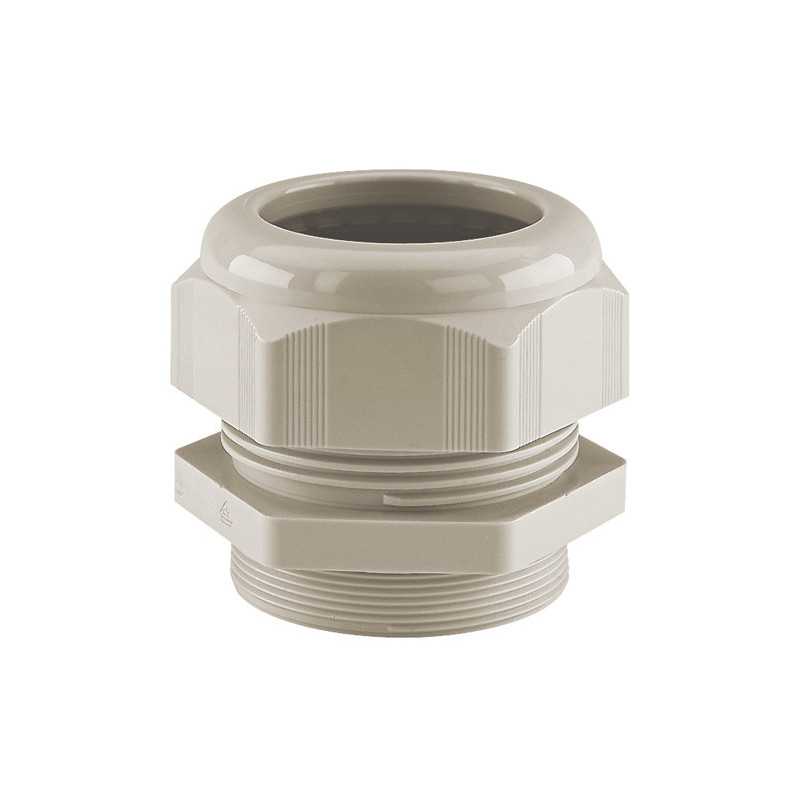

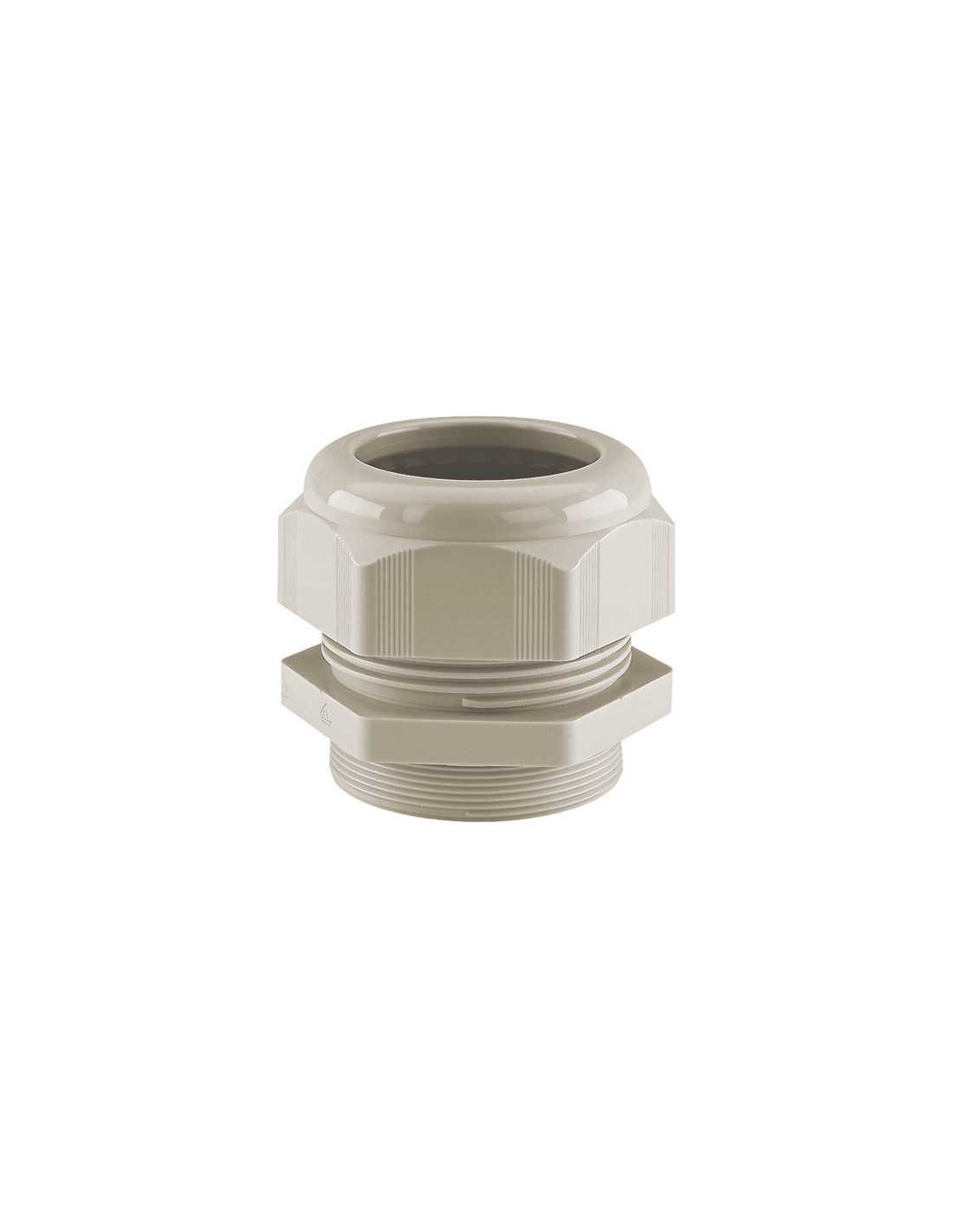

Liquid tight strain relief - cable gland for PG7 thread.
Standard Straight-Through
Polyamide 6
Technical Properties
- Maximum strain relief through clamping range
- IP68 achieved without seal rings (PG and metric only)
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- PG7
- Standard Package
- 100
- Conductor Configuration
- Straight-Through
- Thread Type
- PG
- Min Cable Diameter (mm)
- 1.5
- Max Cable Diameter (mm)
- 5
- Body Material
- Polyamide
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)
- H mm
- 15
- E mm
- 8
- L mm
- 32
- Ø C mm
- 6.7
- Ø P mm
- 6.8
- Ø Thread mm
- 12.5
5309 107
