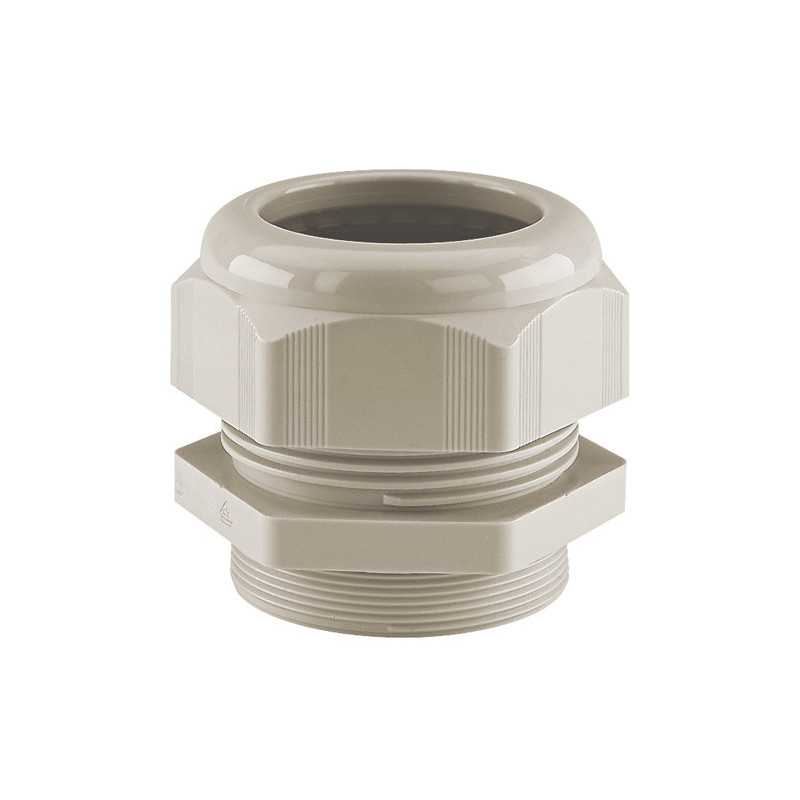

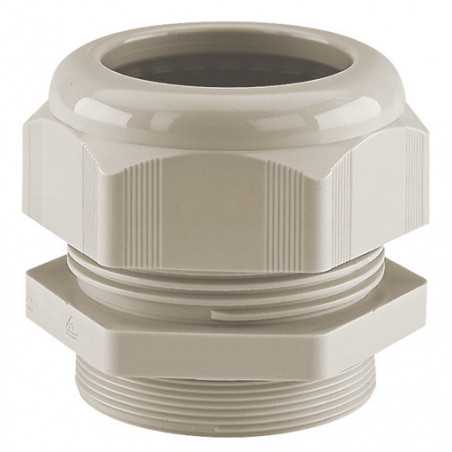

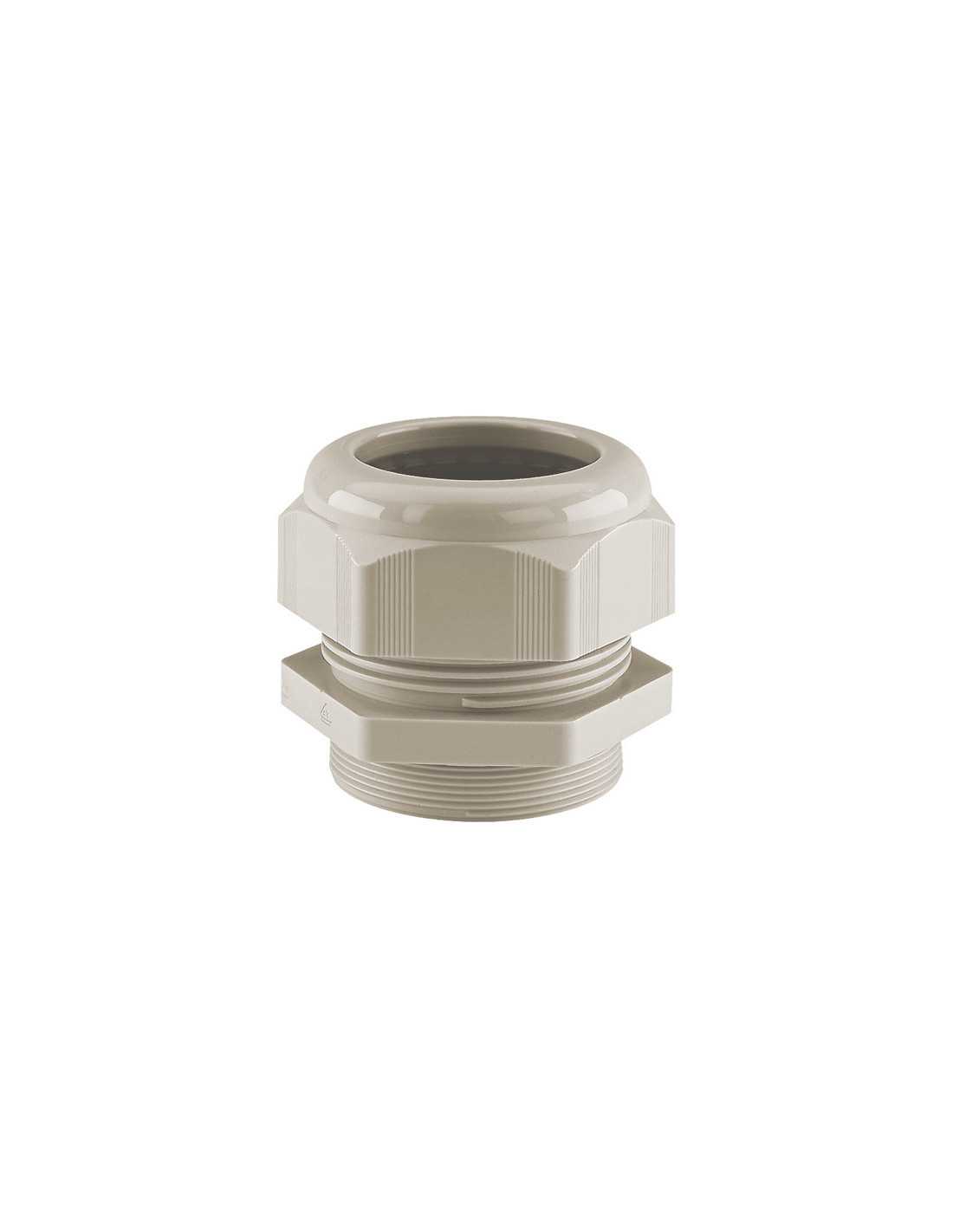

Liquid tight strain relief - cable gland for NPT 1/2" thread.
Standard Straight-Through
Polyamide 6
Technical Properties
- Maximum strain relief through clamping range
- IP68 achieved without seal rings (PG and metric only)
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- NPT 1/2"
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- NPT
- Min Cable Diameter (mm)
- 5
- Max Cable Diameter (mm)
- 12
- Body Material
- Polyamide
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

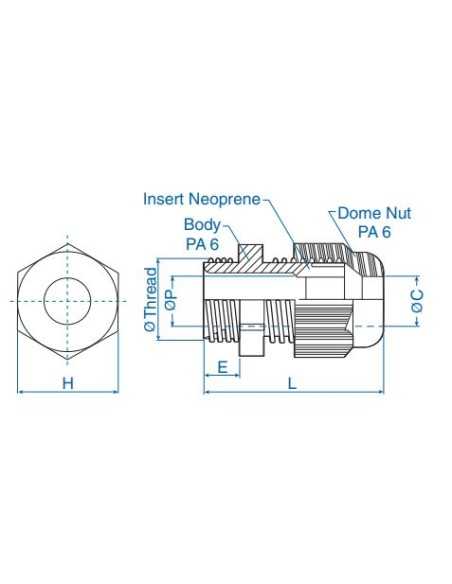

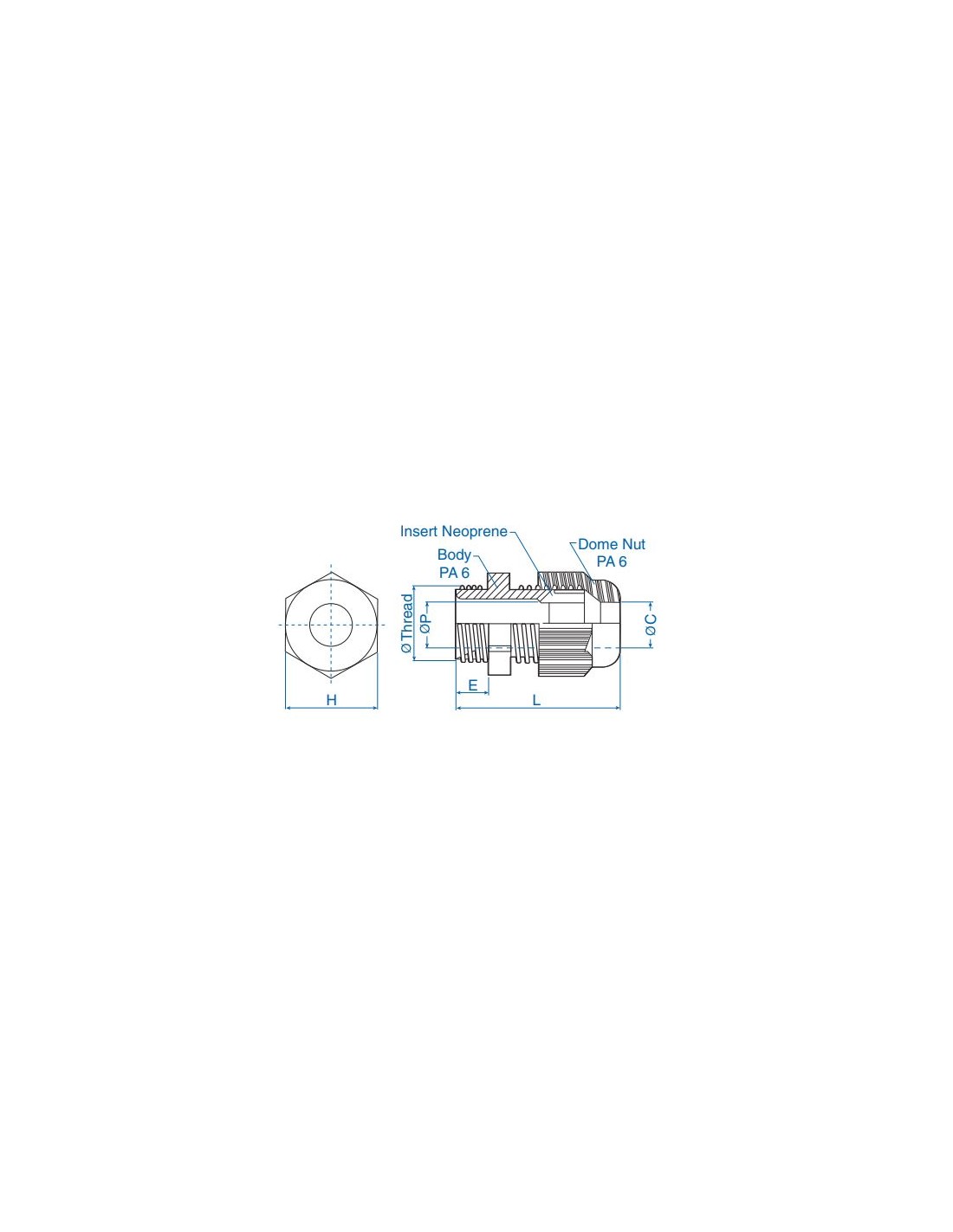

- H mm
- 24
- E mm
- 14
- L mm
- 44
- Ø C mm
- 12.5
- Ø P mm
- 12.5
- Ø Thread mm
- 21.2
5308 901
