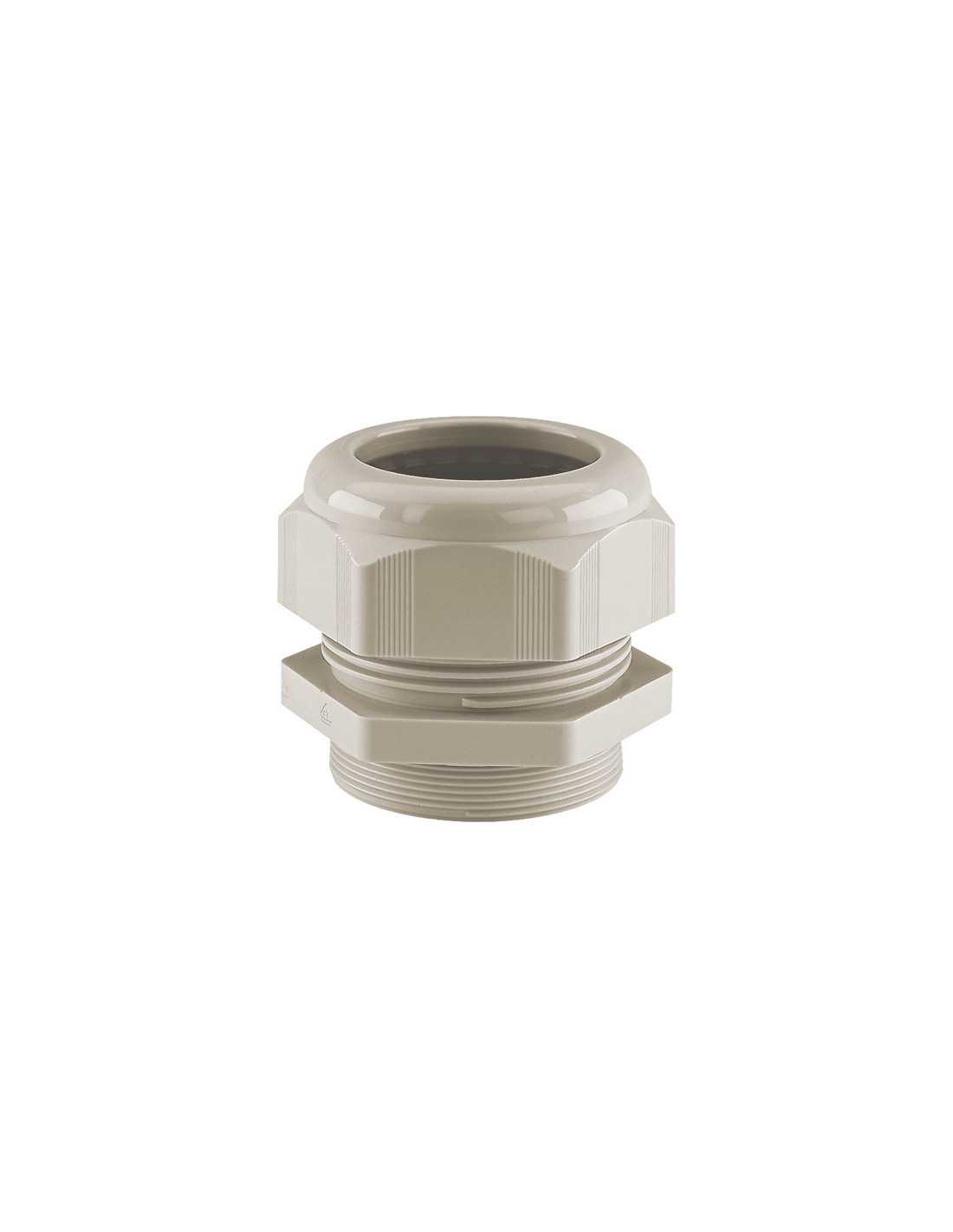

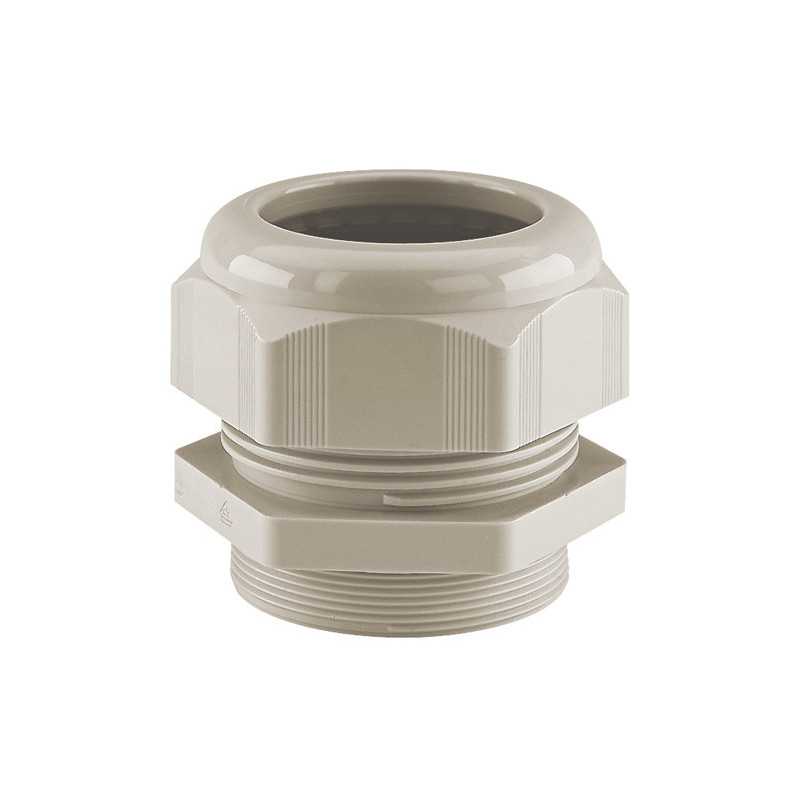

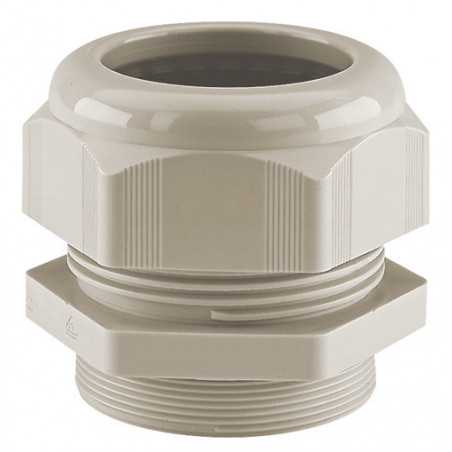

Liquid tight strain relief - cable gland for NPT 3/8" thread.
Standard Straight-Through
Polyamide 6
Technical Properties
- Maximum strain relief through clamping range
- IP68 achieved without seal rings (PG and metric only)
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- NPT 3/8"
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- NPT
- Min Cable Diameter (mm)
- 2.5
- Max Cable Diameter (mm)
- 8
- Body Material
- Polyamide
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

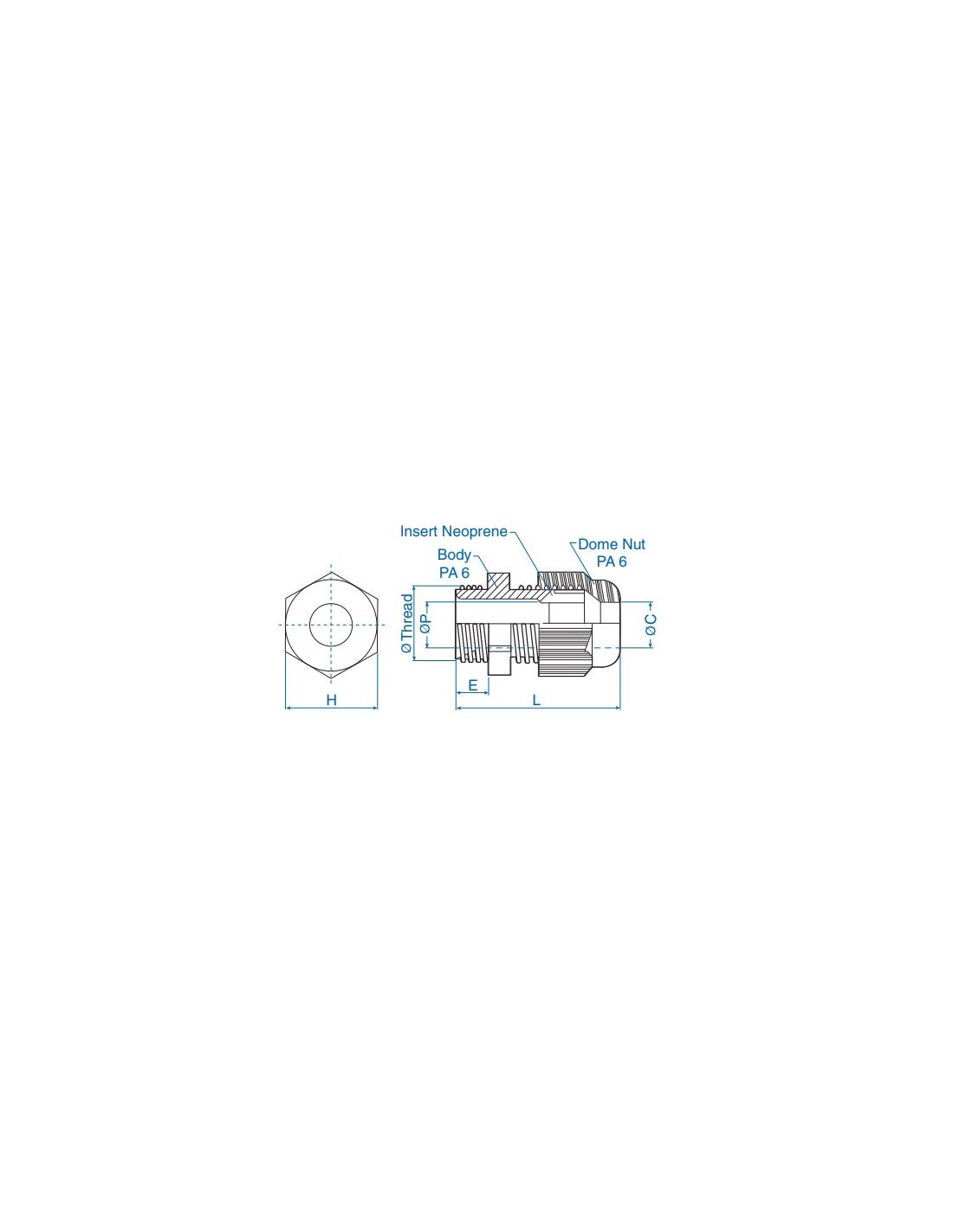

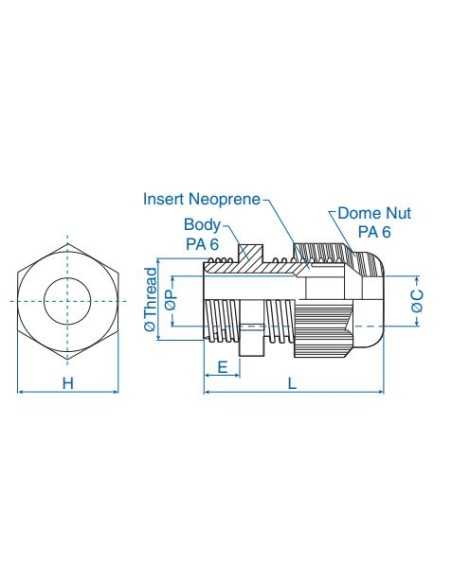

- H mm
- 19
- E mm
- 11
- L mm
- 38
- Ø C mm
- 8.5
- Ø P mm
- 8.7
- Ø Thread mm
- 17.1
5308 900
