5308 529 - PG29 14-25 mm Cable Gland Standard Straight-Through Polyamide
5308 529
Liquid tight strain relief - cable gland for PG29 thread.
Click for Data Sheet or

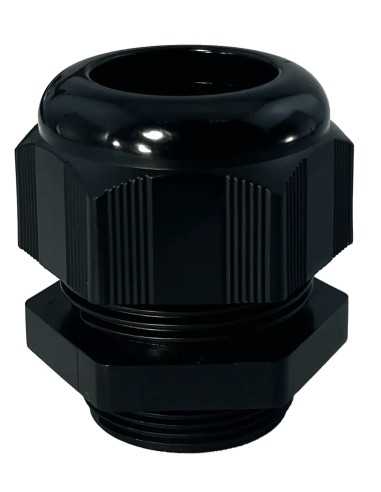

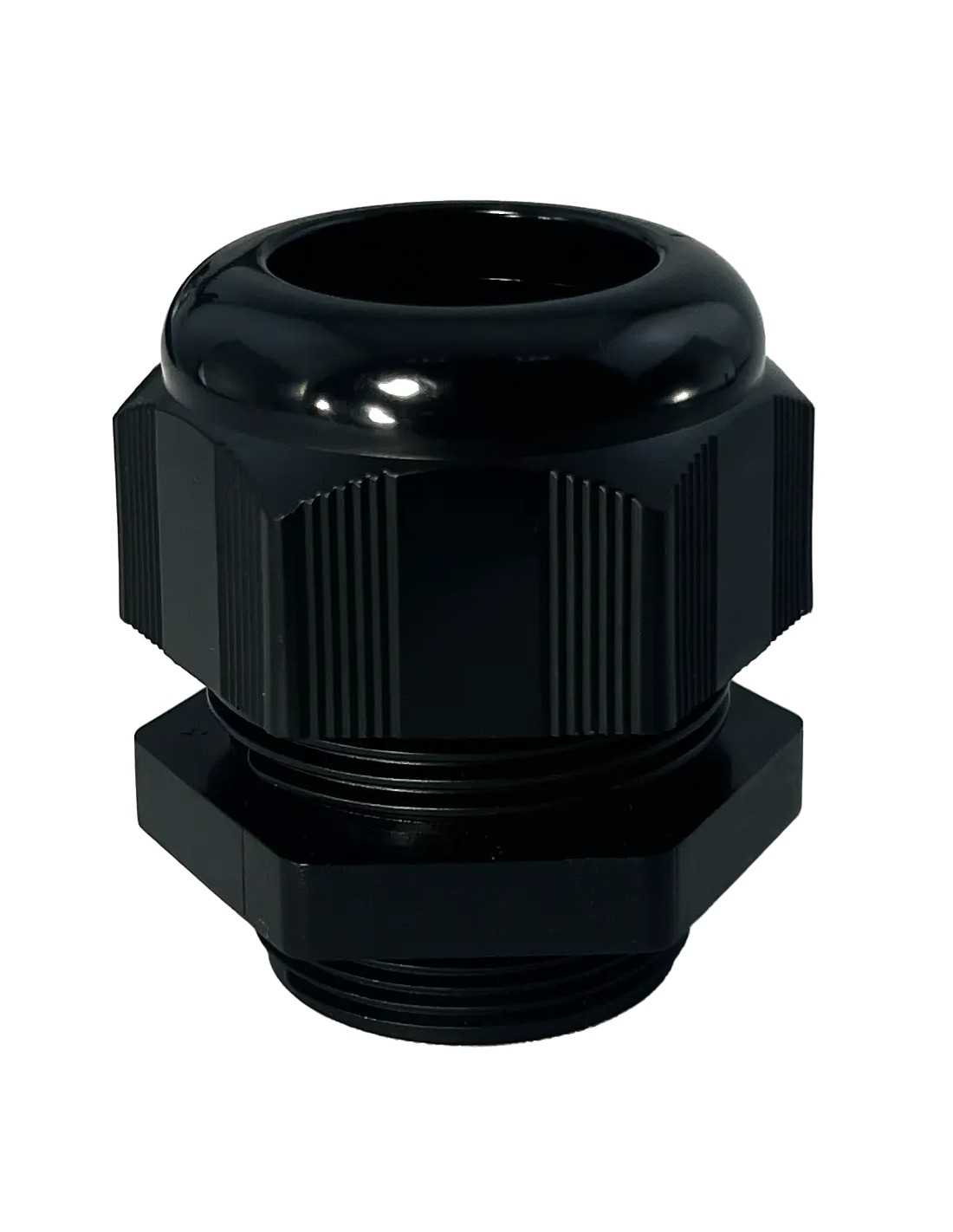

< Product photo may not be exact.
Liquid tight strain relief - cable gland for PG29 thread.
Standard Straight-Through
Polyamide 6
Technical Properties
- Maximum strain relief through clamping range
- IP68 achieved without seal rings (PG and metric only)
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- PG29
- Standard Package
- 20
- Conductor Configuration
- Straight-Through
- Thread Type
- PG
- Min Cable Diameter (mm)
- 14
- Max Cable Diameter (mm)
- 25
- Body Material
- Polyamide
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

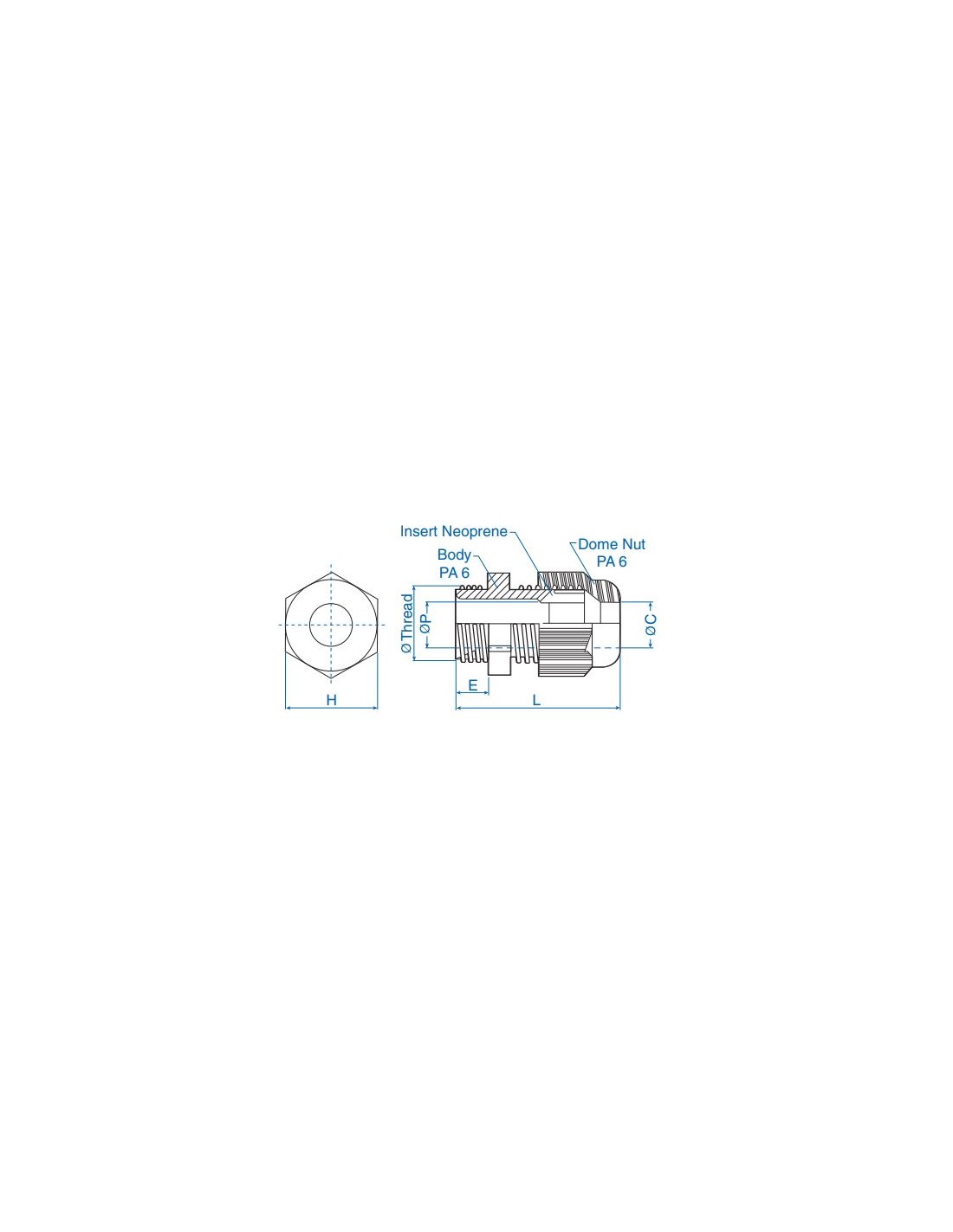

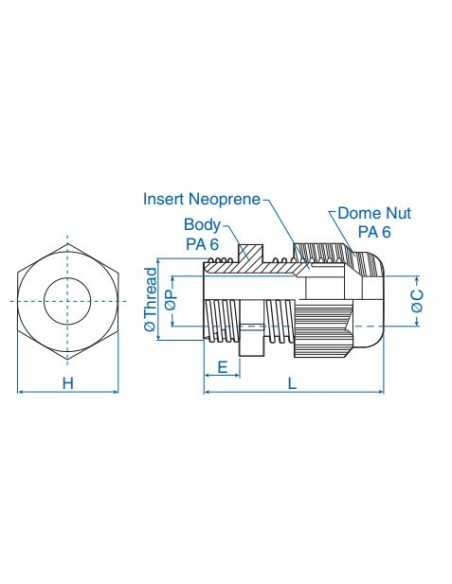

- H mm
- 42
- E mm
- 11
- L mm
- 53
- Ø C mm
- 25.5
- Ø P mm
- 25.5
- Ø Thread mm
- 37
