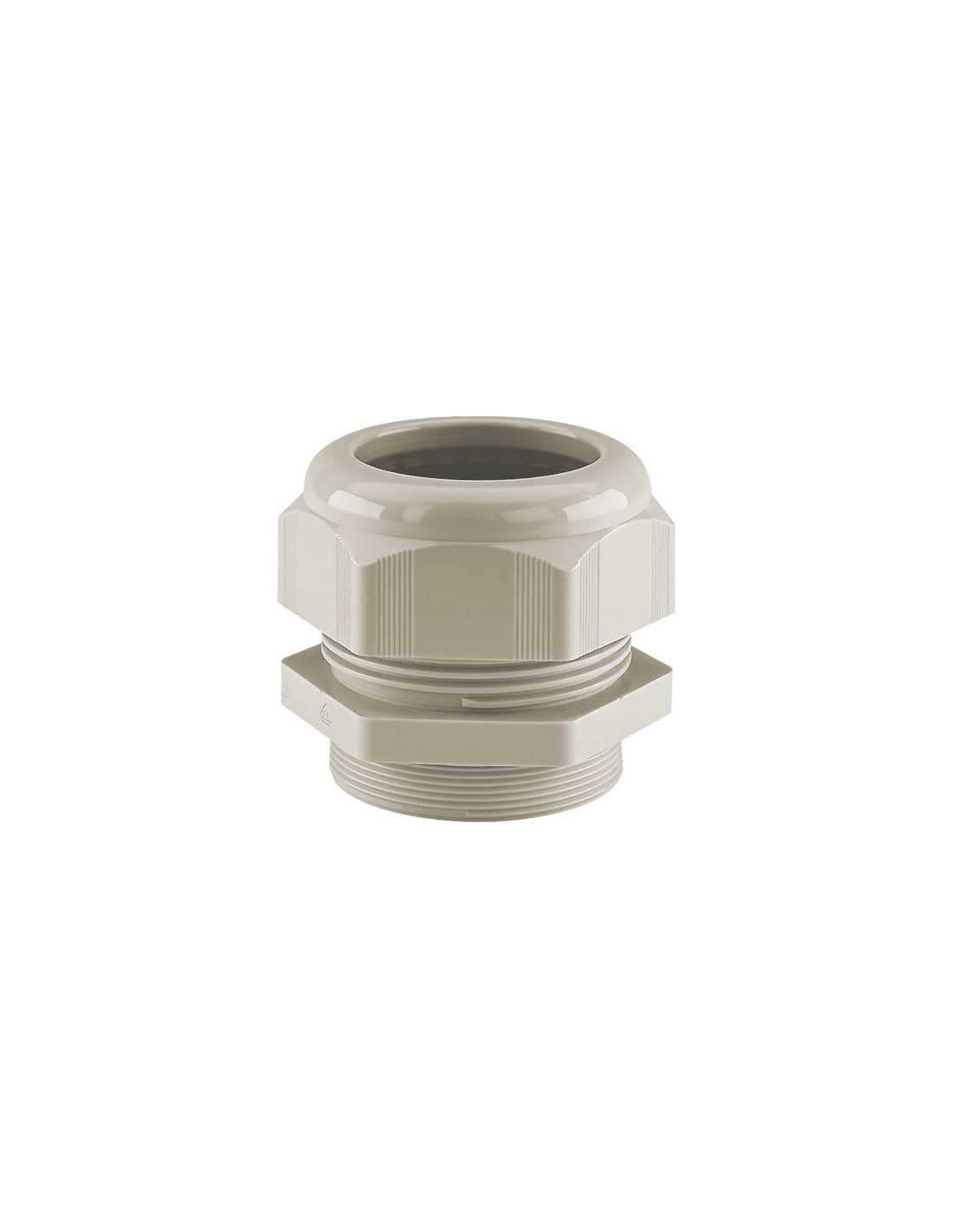

    PG9 2.5-8 Cable Gland Standard Straight-Through Polyamide
    PG9 2.5-8 Cable Gland Standard Straight-Through Polyamide

    PG9 2.5-8 Cable Gland Standard Straight-Through Polyamide



    Liquid tight strain relief - cable gland for PG9 thread.

    Standard Straight-Through

    Polyamide 6

    Technical Properties
    • Maximum strain relief through clamping range
    • IP68 achieved without seal rings (PG and metric only)
    • Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
    • Gas and watertight
    Series
    Standard
    Thread
    PG9
    Standard Package
    50
    Conductor Configuration
    Straight-Through
    Thread Type
    PG
    Min Cable Diameter (mm)
    2.5
    Max Cable Diameter (mm)
    8
    Body Material
    Polyamide
    Seal Material
    Neoprene
    Temperature Range
    -25 to 100°C (-13 to 212°F)
    H mm
    19
    E mm
    8
    L mm
    35
    Ø C mm
    8.5
    Ø P mm
    8.7
    Ø Thread mm
    15.2
    5308 509
