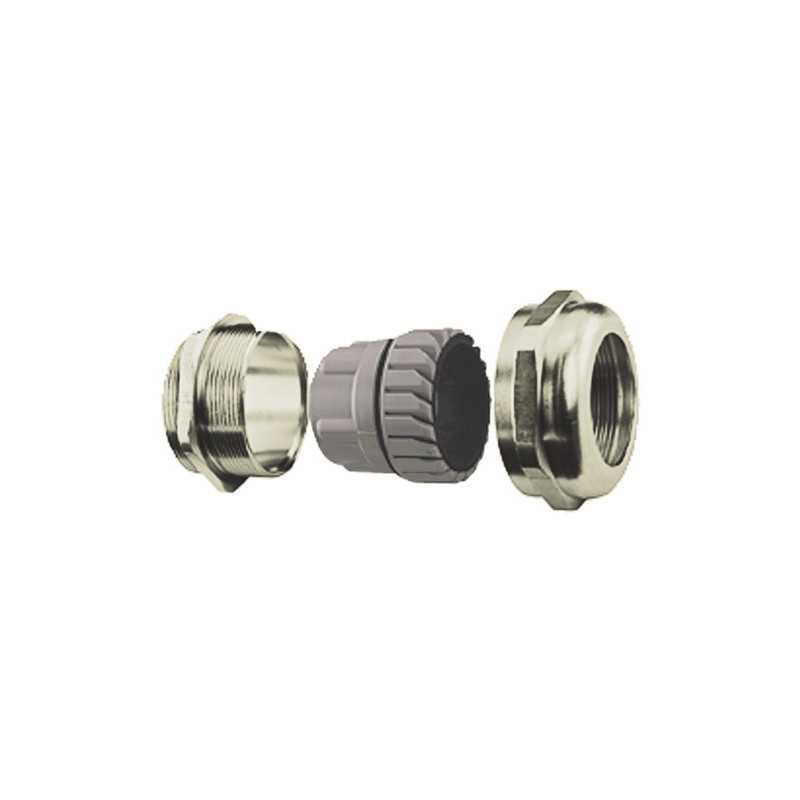

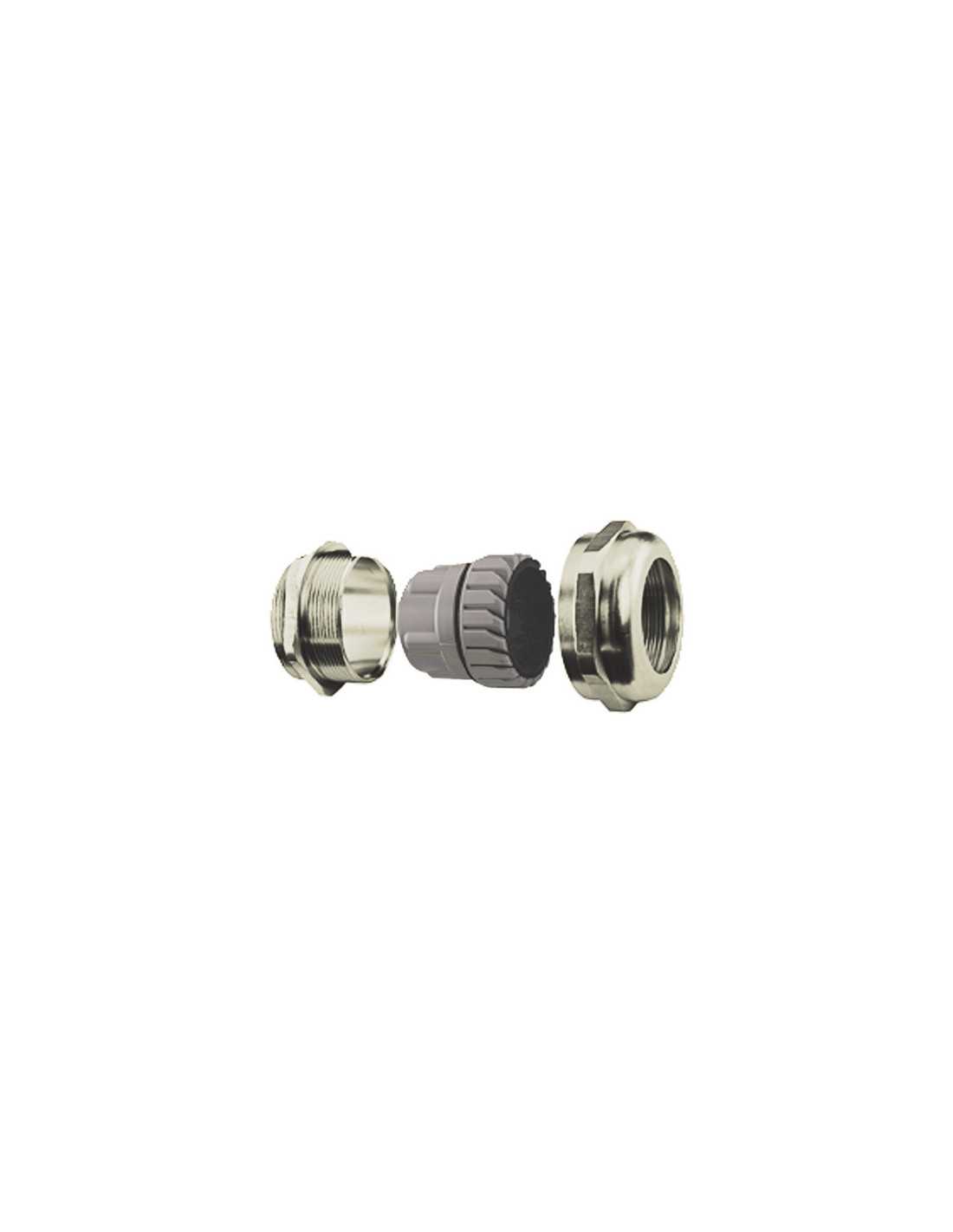

Liquid tight strain relief - cable gland for M63x1.5 thread.
Standard Straight-Through
Stainless Steel 1.4404/INOX 316L
Technical Properties
- Seal rings included
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- M63x1.5
- Standard Package
- 5
- Conductor Configuration
- Straight-Through
- Thread Type
- Metric
- Min Cable Diameter (mm)
- 28
- Max Cable Diameter (mm)
- 40
- Body Material
- Stainless Steel
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)
- H mm
- 65
- E mm
- 10
- L mm
- 54
- Ø C mm
- 48.5
- Ø P mm
- 50
- Ø Thread mm
- 63
4220867
