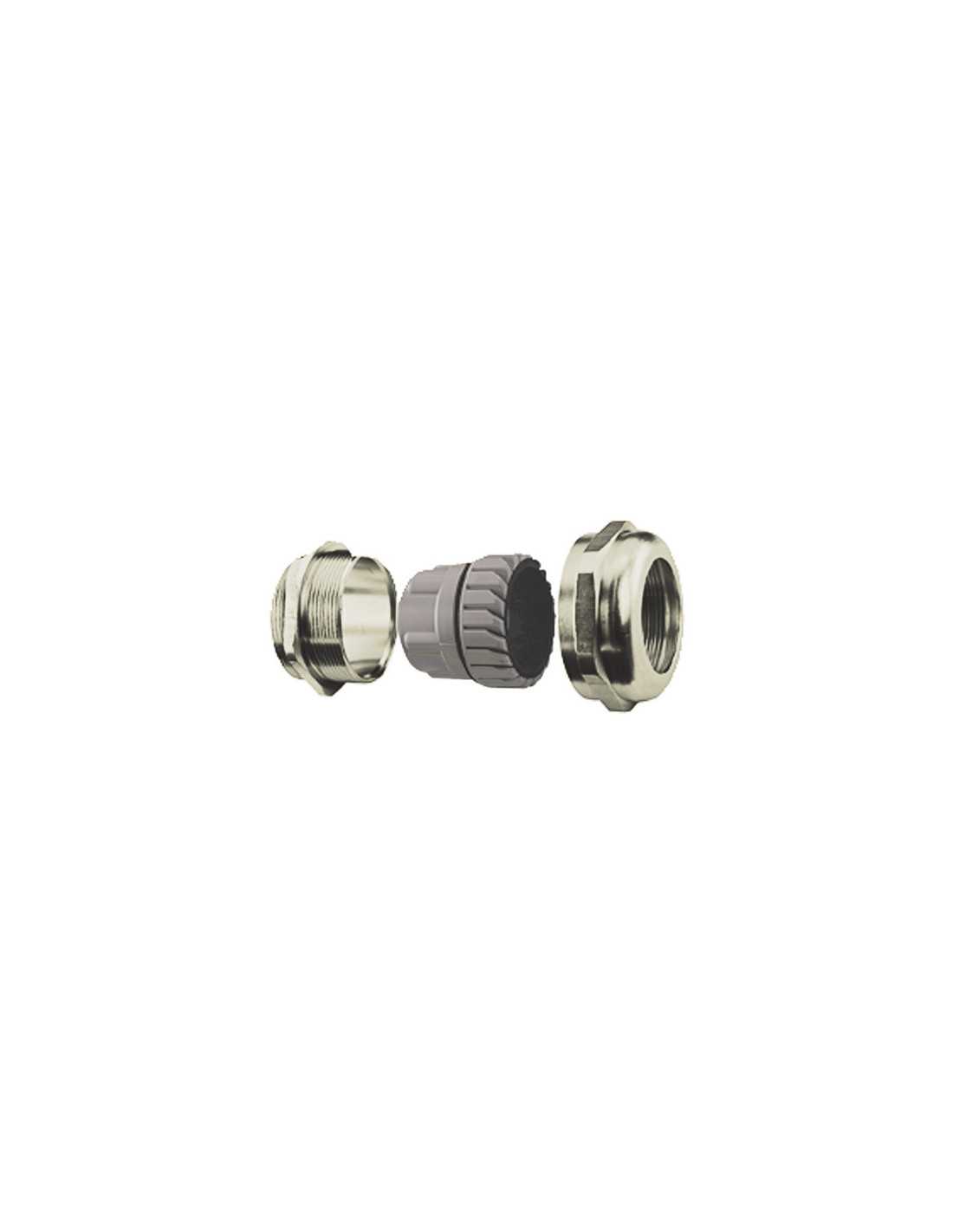

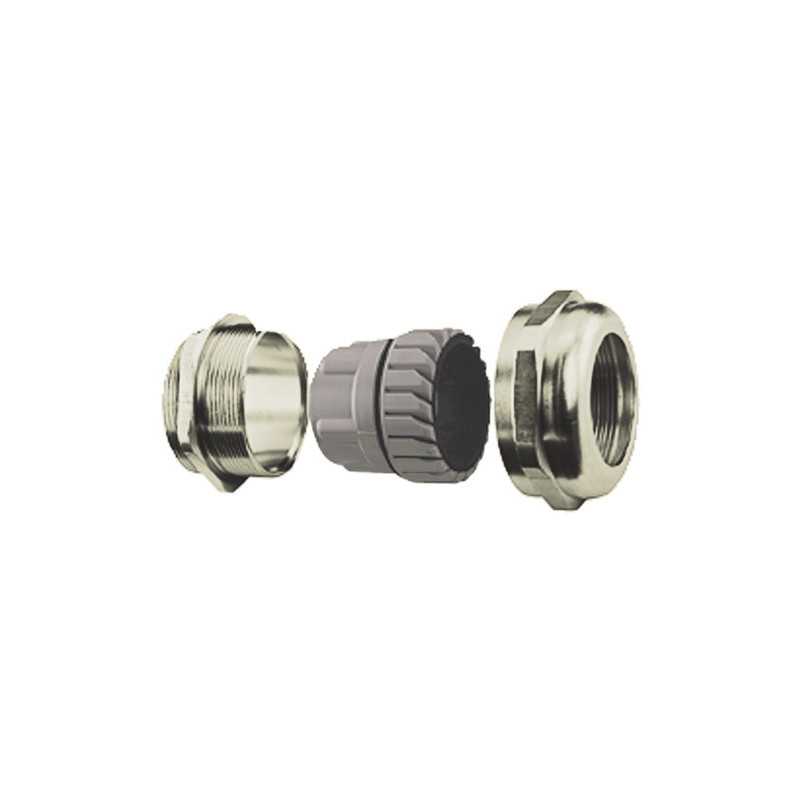

M32x1.5 7-17 Cable Gland Standard Straight-Through Stainless Steel
4220864
Liquid tight strain relief - cable gland for M32x1.5 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for M32x1.5 thread.
Standard Straight-Through
Stainless Steel 1.4404/INOX 316L
Technical Properties
- Seal rings included
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- M32x1.5
- Standard Package
- 20
- Conductor Configuration
- Straight-Through
- Thread Type
- Metric
- Min Cable Diameter (mm)
- 7
- Max Cable Diameter (mm)
- 17
- Body Material
- Stainless Steel
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

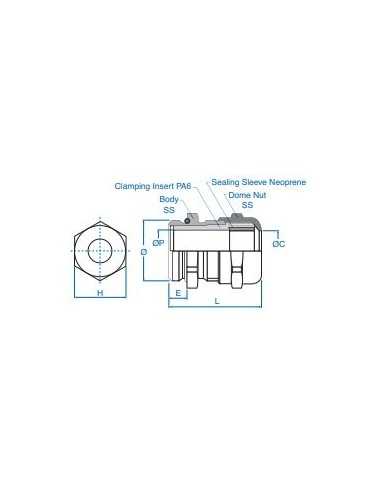

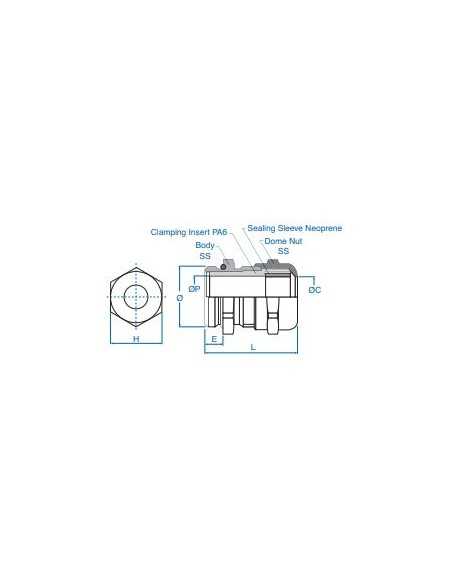

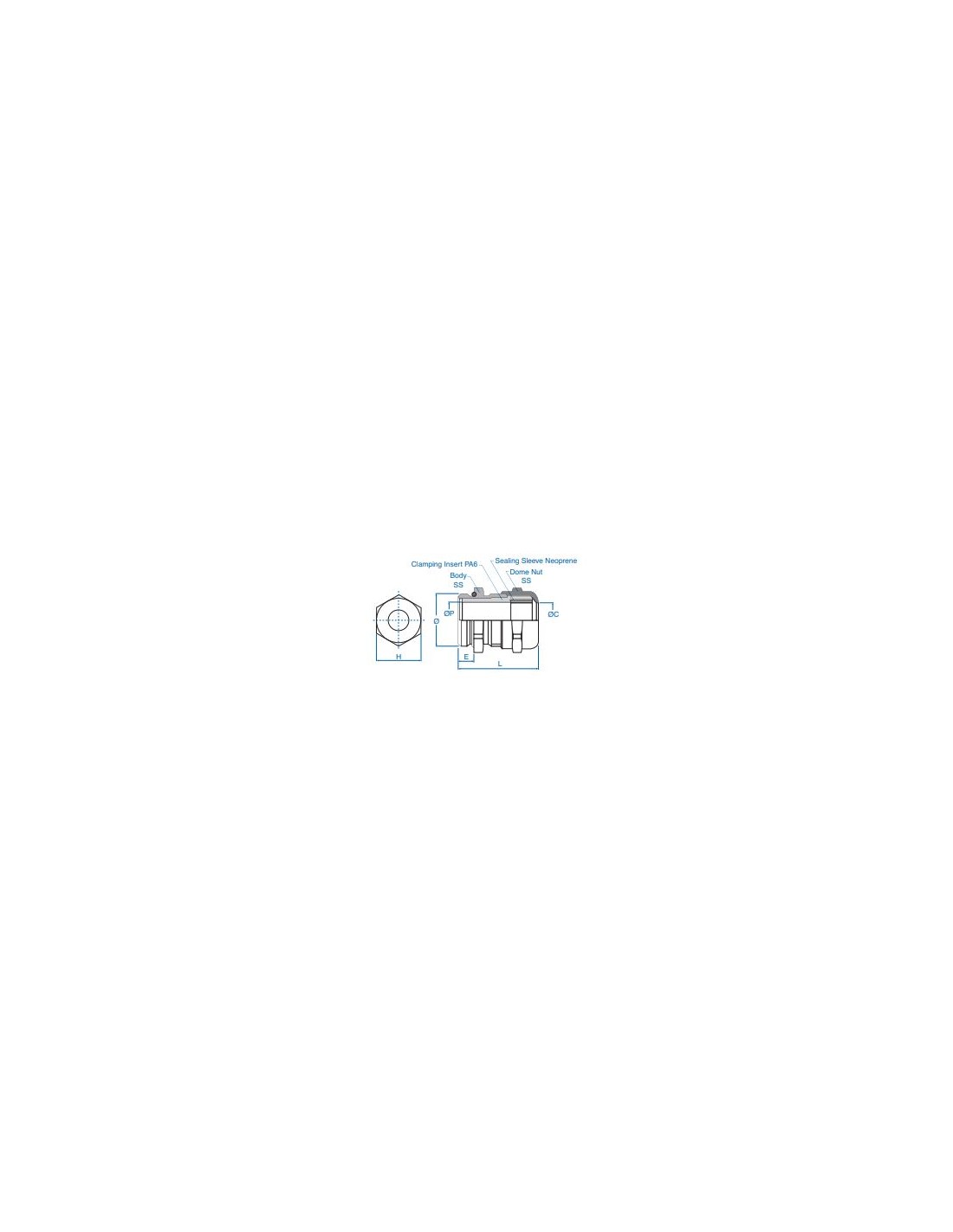

- H mm
- 34
- E mm
- 8
- L mm
- 38
- Ø C mm
- 21.5
- Ø P mm
- 22
- Ø Thread mm
- 32
