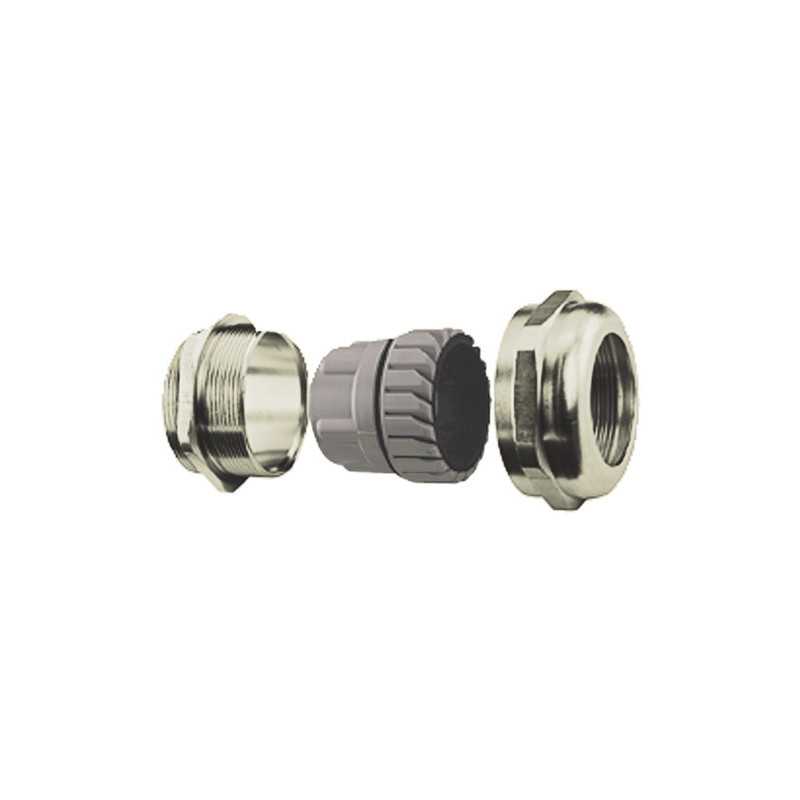

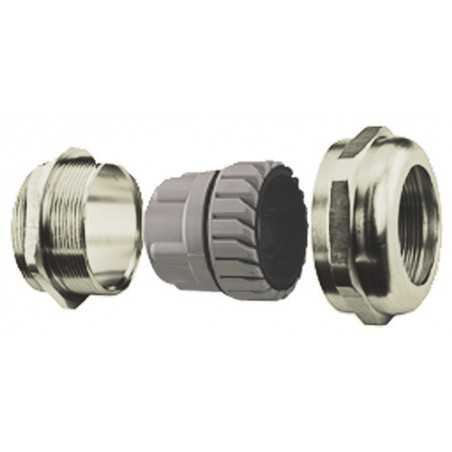

M12x1.5 1.5-5 Cable Gland Standard Straight-Through Stainless Steel
4220860
Liquid tight strain relief - cable gland for M12x1.5 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for M12x1.5 thread.
Standard Straight-Through
Stainless Steel 1.4404/INOX 316L
Technical Properties
- Seal rings included
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- M12x1.5
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- Metric
- Min Cable Diameter (mm)
- 1.5
- Max Cable Diameter (mm)
- 5
- Body Material
- Stainless Steel
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

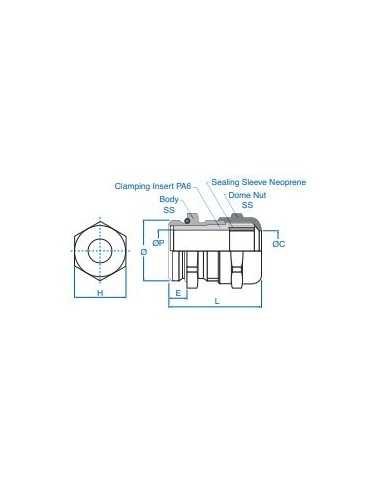

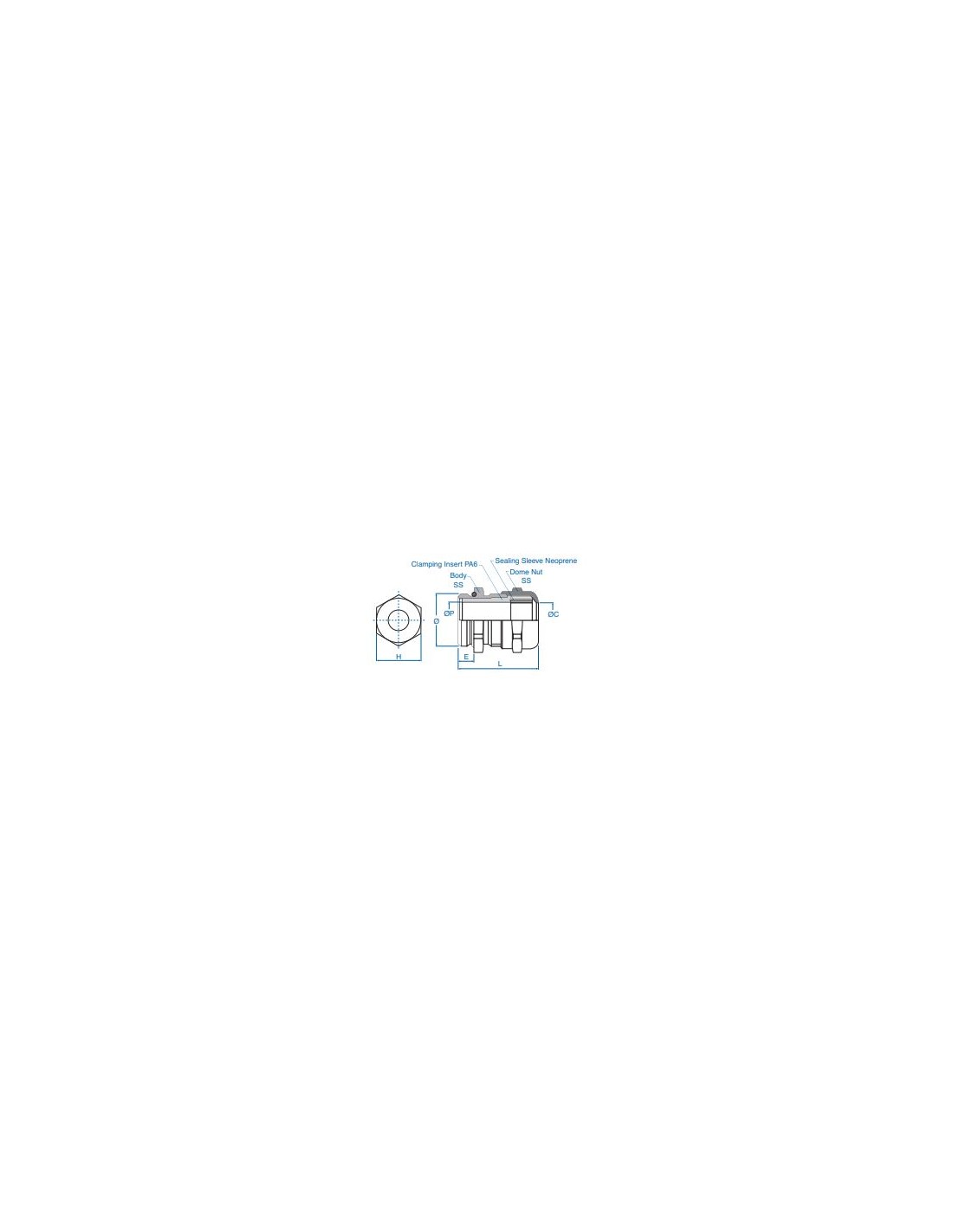

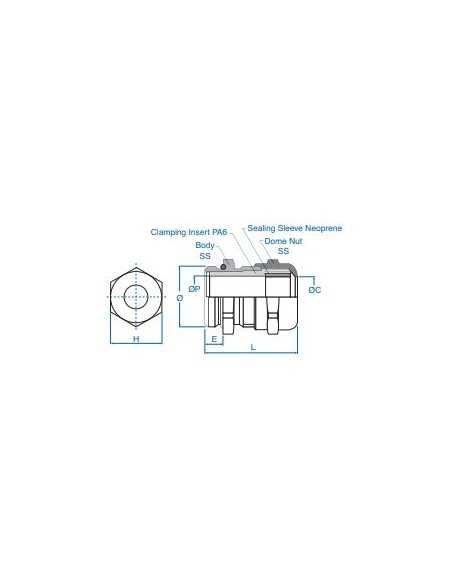

- H mm
- 14
- E mm
- 5
- L mm
- 25
- Ø C mm
- 6.6
- Ø P mm
- 6.6
- Ø Thread mm
- 12
