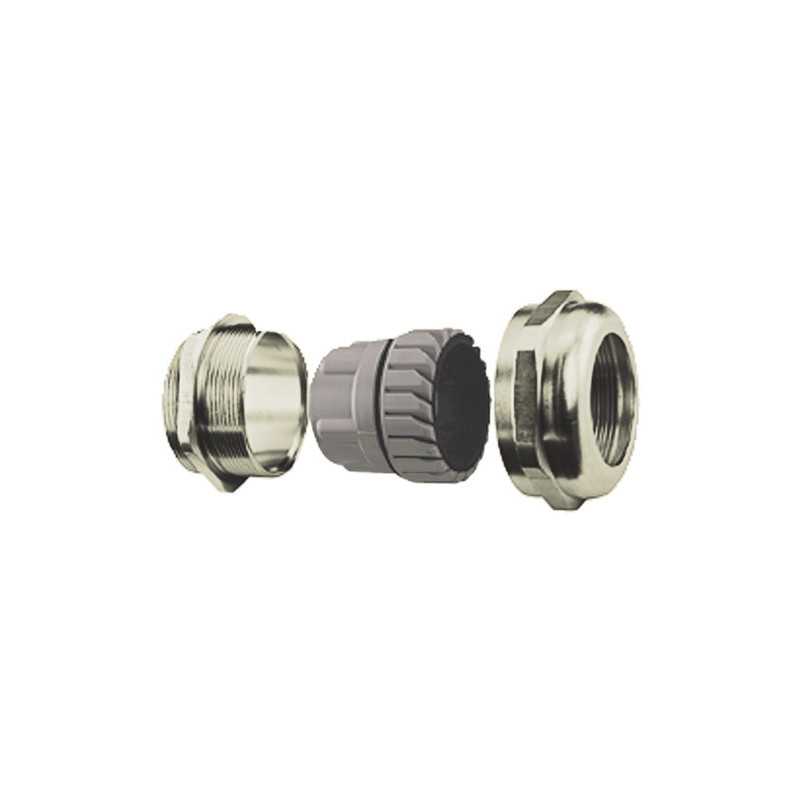

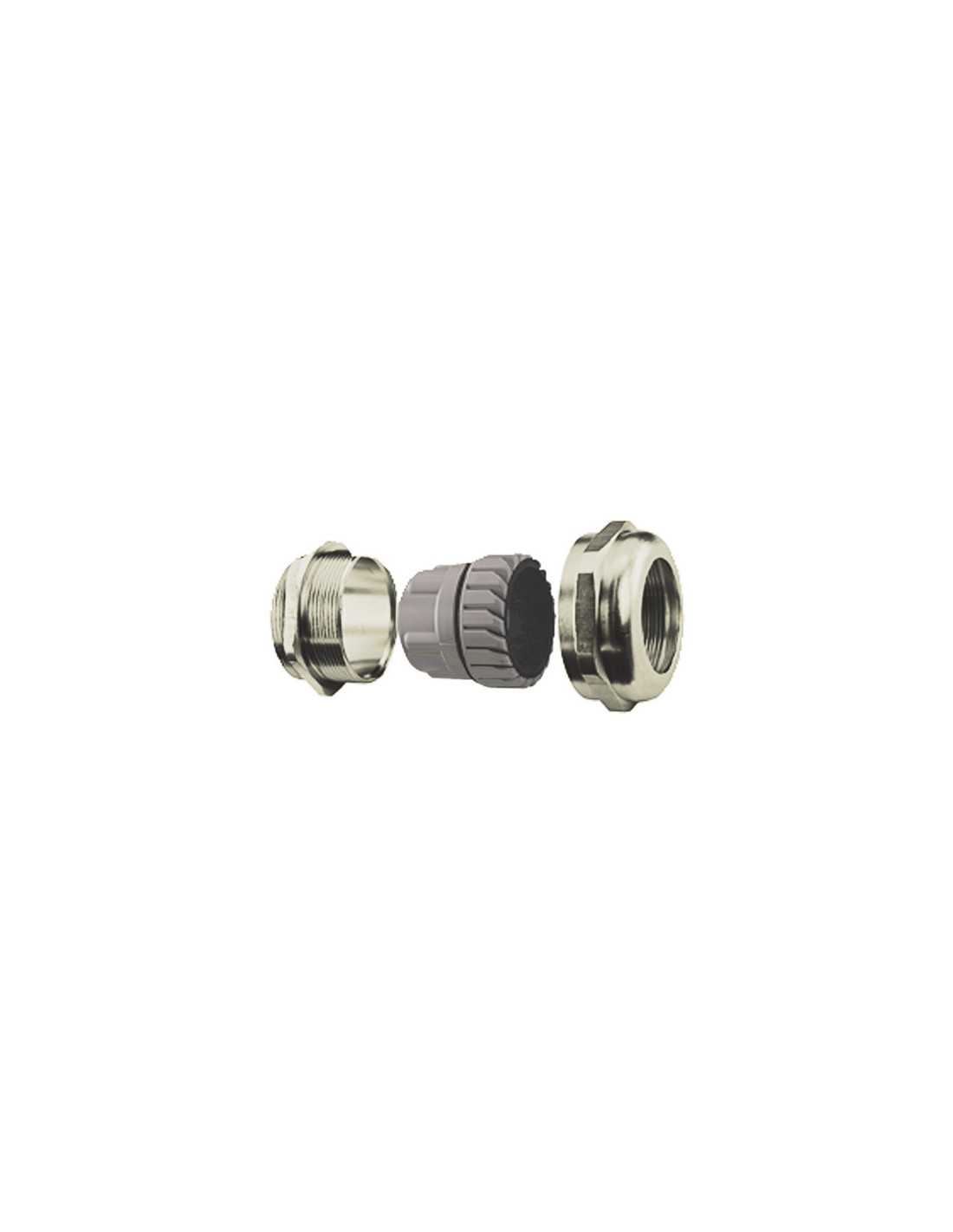

M20x1.5 8-13 Cable Gland Standard Straight-Through Stainless Steel
Liquid tight strain relief - cable gland for M20x1.5 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for M20x1.5 thread.
Standard Straight-Through
Stainless Steel 1.4404/INOX 316L
Technical Properties
- Seal rings included
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- M20x1.5
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- Metric
- Min Cable Diameter (mm)
- 8
- Max Cable Diameter (mm)
- 13
- Body Material
- Stainless Steel
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

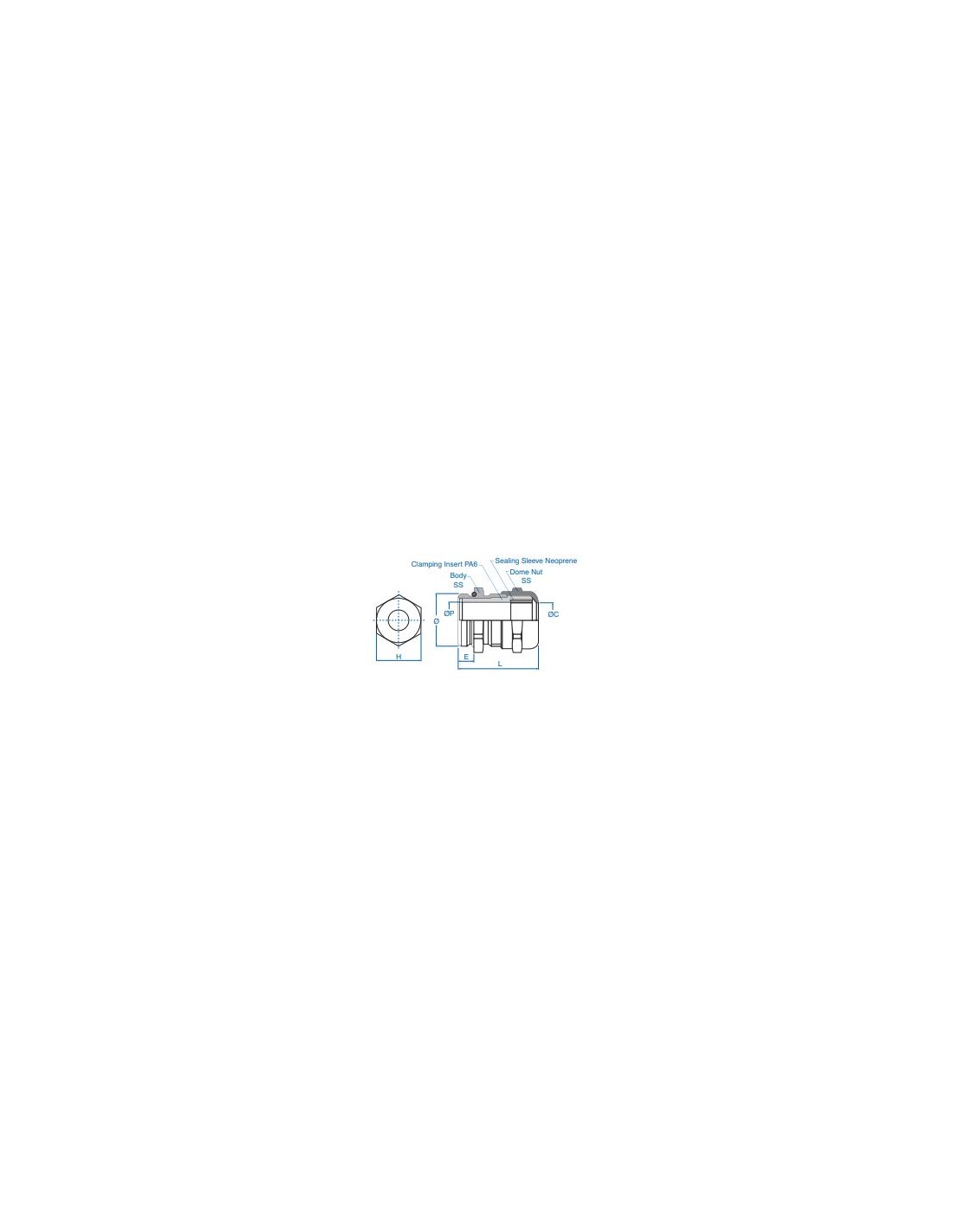

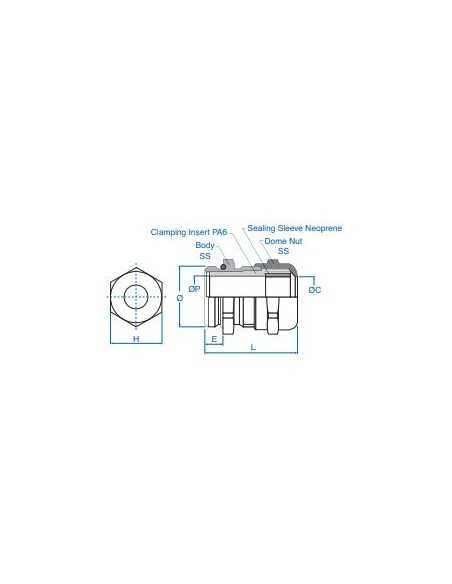

- H mm
- 22
- E mm
- 6
- L mm
- 32
- Ø C mm
- 13.2
- Ø P mm
- 13.5
- Ø Thread mm
- 20
