NPT 3/8" 2.5-7 Cable Gland Standard Straight-Through Nickel Plated Brass
4220810
Liquid tight strain relief - cable gland for NPT 3/8" thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for NPT 3/8" thread.
Standard Straight-Through
Nickel Plated Brass
Technical Properties
- Seal rings included for PG and Metric sizes
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- NPT 3/8"
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- NPT
- Min Cable Diameter (mm)
- 2.5
- Max Cable Diameter (mm)
- 7
- Body Material
- Nickel Plated Brass
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

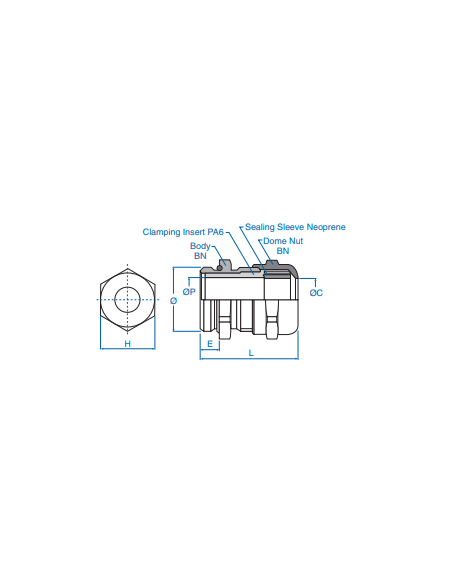

- H mm
- 18
- E mm
- 15
- L mm
- 38
- Ø C mm
- 9.7
- Ø P mm
- 10
- Ø Thread mm
- 17.1
