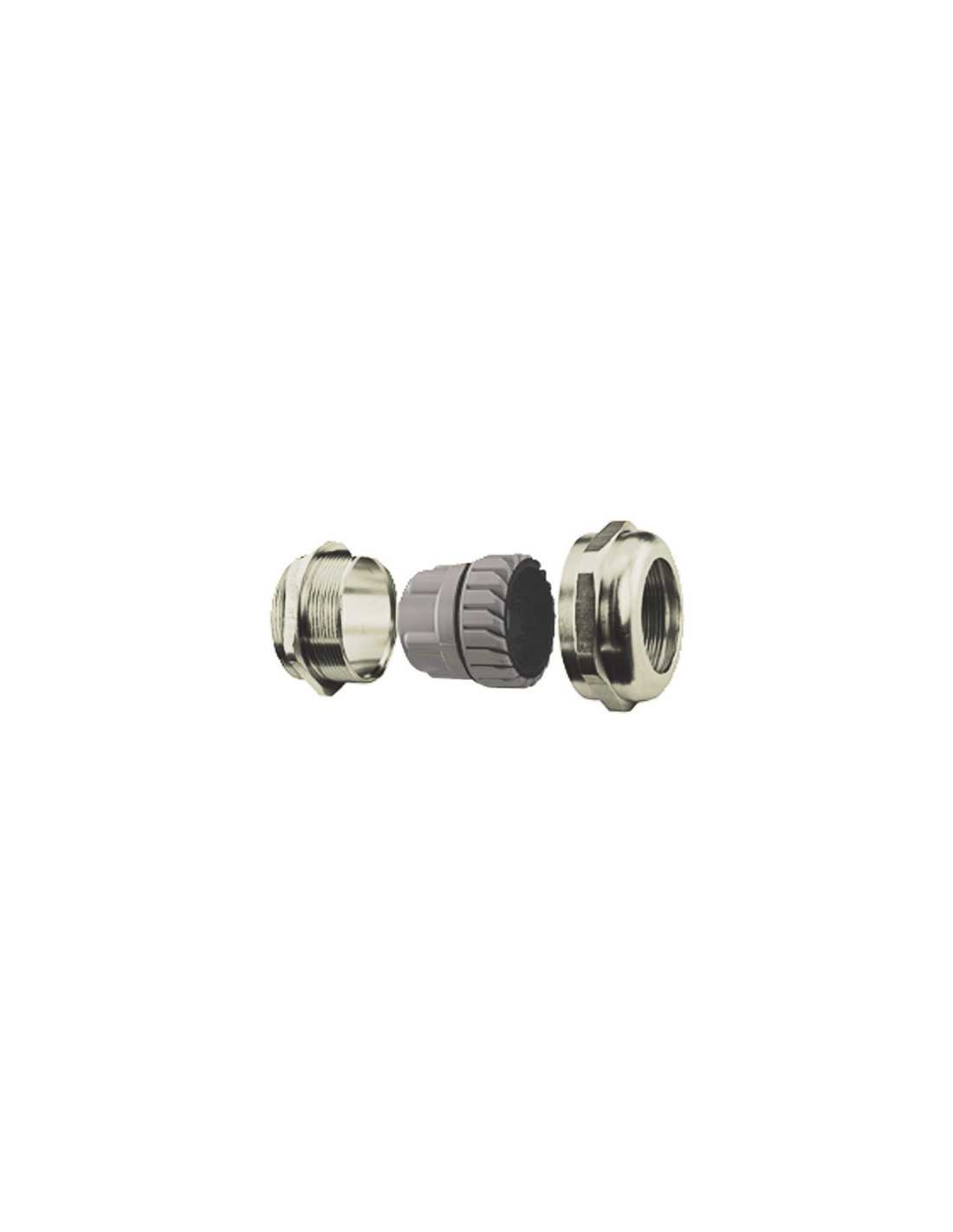

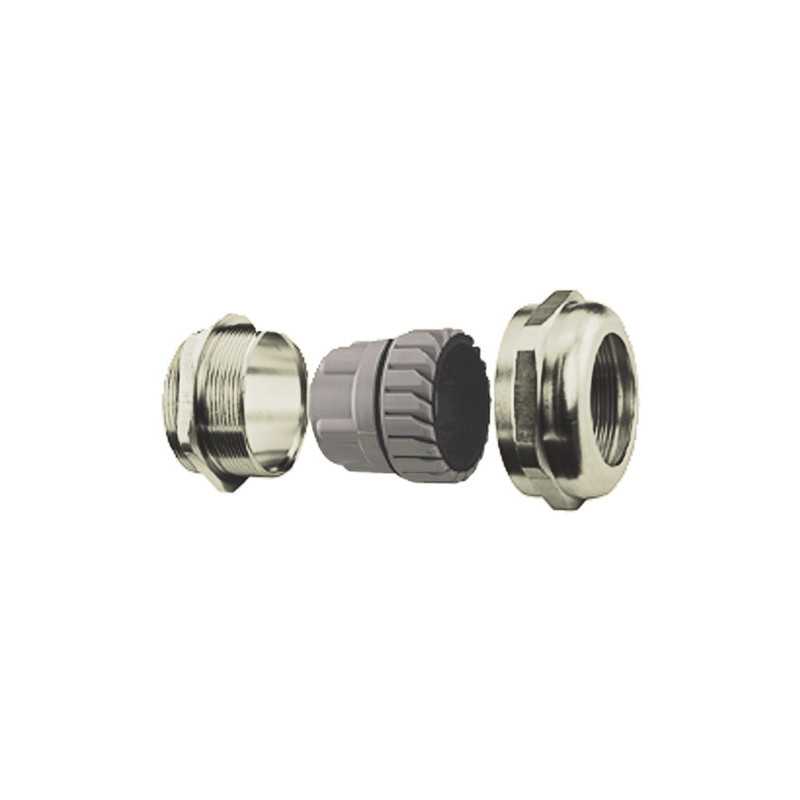

M40x1.5 10-22 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid tight strain relief - cable gland for M40x1.5 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for M40x1.5 thread.
Standard Straight-Through
Nickel Plated Brass
Technical Properties
- Seal rings included for PG and Metric sizes
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- M40x1.5
- Standard Package
- 10
- Conductor Configuration
- Straight-Through
- Thread Type
- Metric
- Min Cable Diameter (mm)
- 10
- Max Cable Diameter (mm)
- 22
- Body Material
- Nickel Plated Brass
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

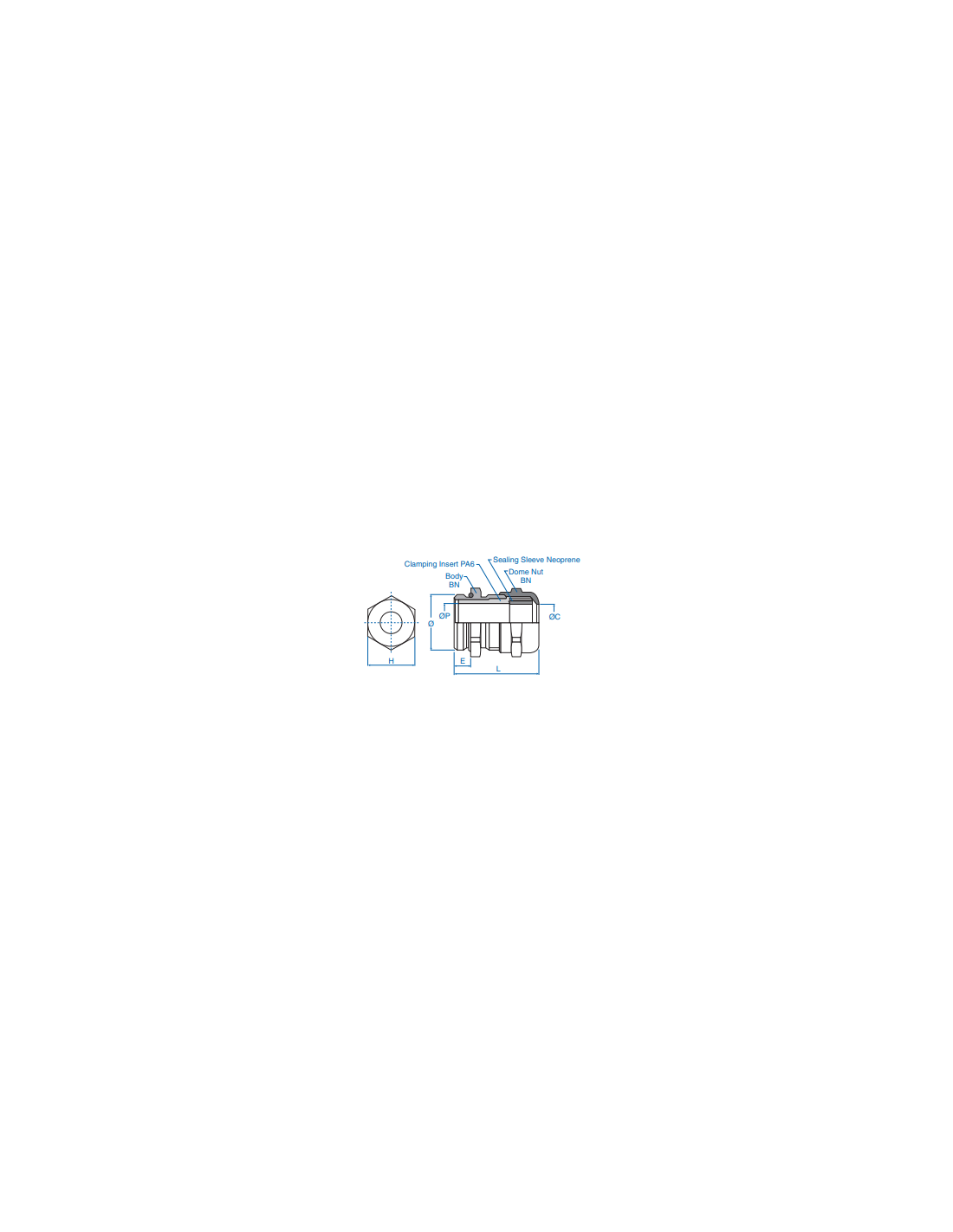

- H mm
- 42
- E mm
- 8
- L mm
- 41
- Ø C mm
- 27.5
- Ø P mm
- 28
- Ø Thread mm
- 40
