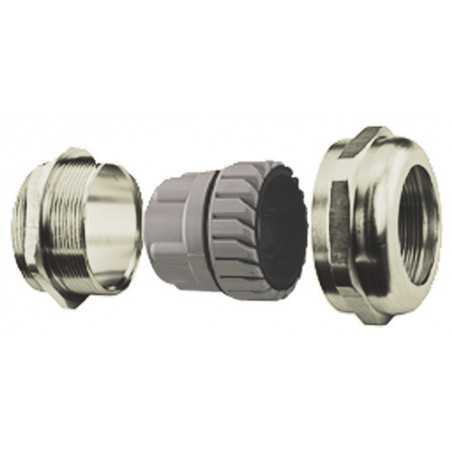

    M32x1.5 7-17 Cable Gland Standard Straight-Through Nickel Plated Brass
    M32x1.5 7-17 Cable Gland Standard Straight-Through Nickel Plated Brass
    M32x1.5 7-17 Cable Gland Standard Straight-Through Nickel Plated Brass
    M32x1.5 7-17 Cable Gland Standard Straight-Through Nickel Plated Brass

    M32x1.5 7-17 Cable Gland Standard Straight-Through Nickel Plated Brass

    Liquid tight strain relief - cable gland for M32x1.5 thread.

    Click for Data Sheet



    Liquid tight strain relief - cable gland for M32x1.5 thread.

    Standard Straight-Through

    Nickel Plated Brass

    Technical Properties
    • Seal rings included for PG and Metric sizes
    • Maximum strain relief through clamp range
    • Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
    • Gas and watertight
    Series
    Standard
    Thread
    M32x1.5
    Standard Package
    20
    Conductor Configuration
    Straight-Through
    Thread Type
    Metric
    Min Cable Diameter (mm)
    7
    Max Cable Diameter (mm)
    17
    Body Material
    Nickel Plated Brass
    Seal Material
    Neoprene
    Temperature Range
    -25 to 100°C (-13 to 212°F)

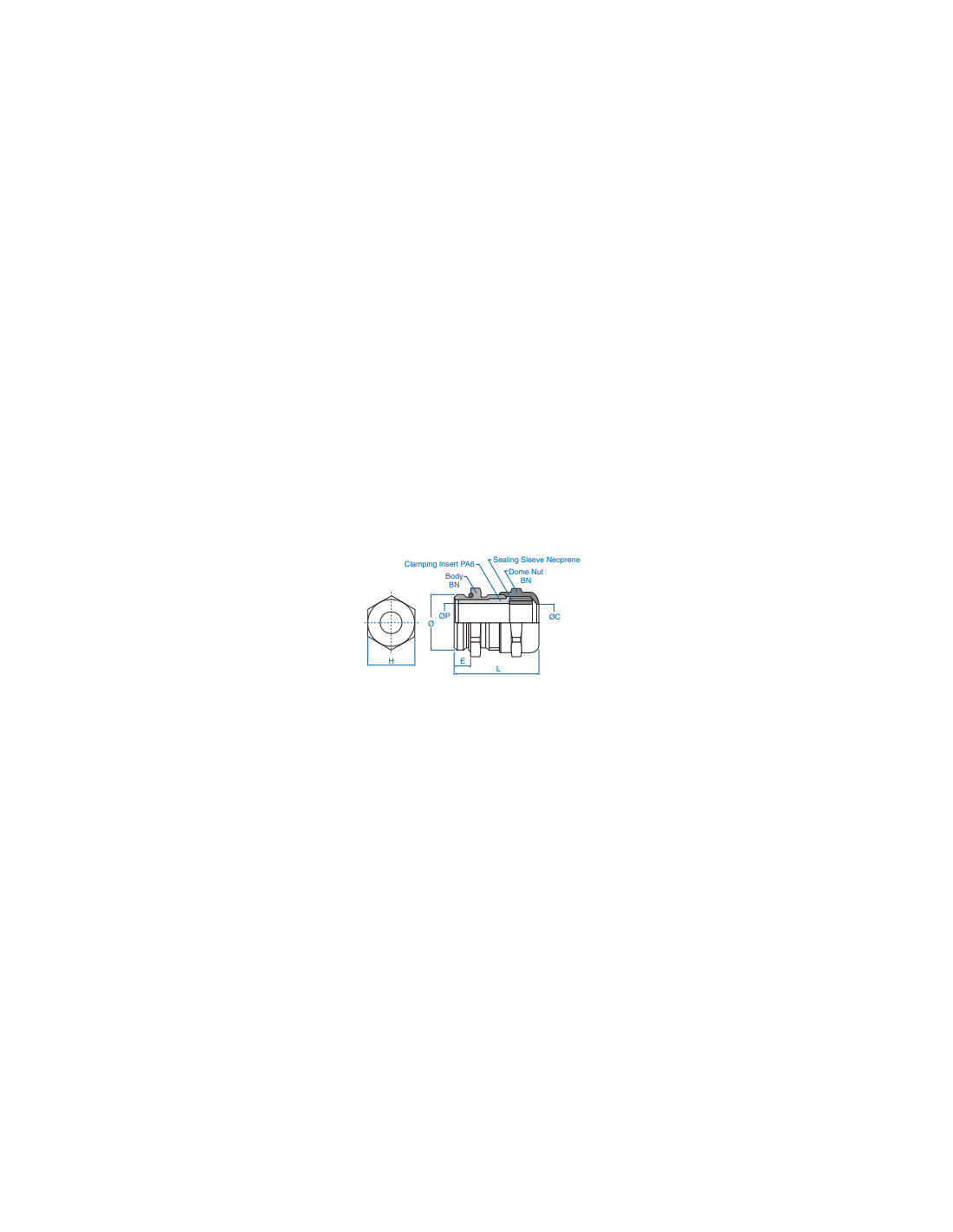

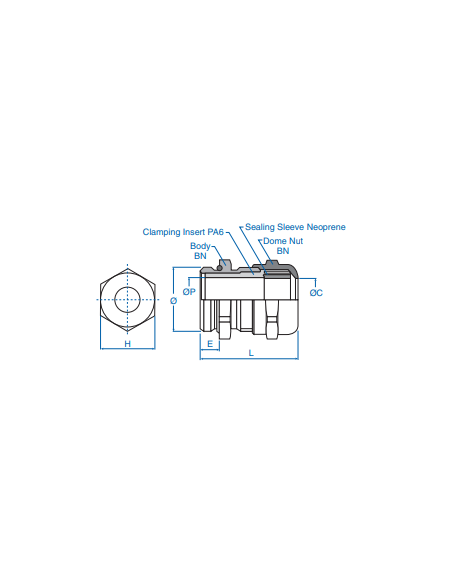

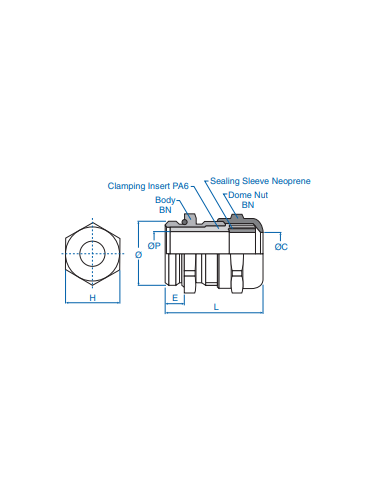

    H mm
    34
    E mm
    8
    L mm
    38
    Ø C mm
    21.5
    Ø P mm
    22
    Ø Thread mm
    32
    4220732
