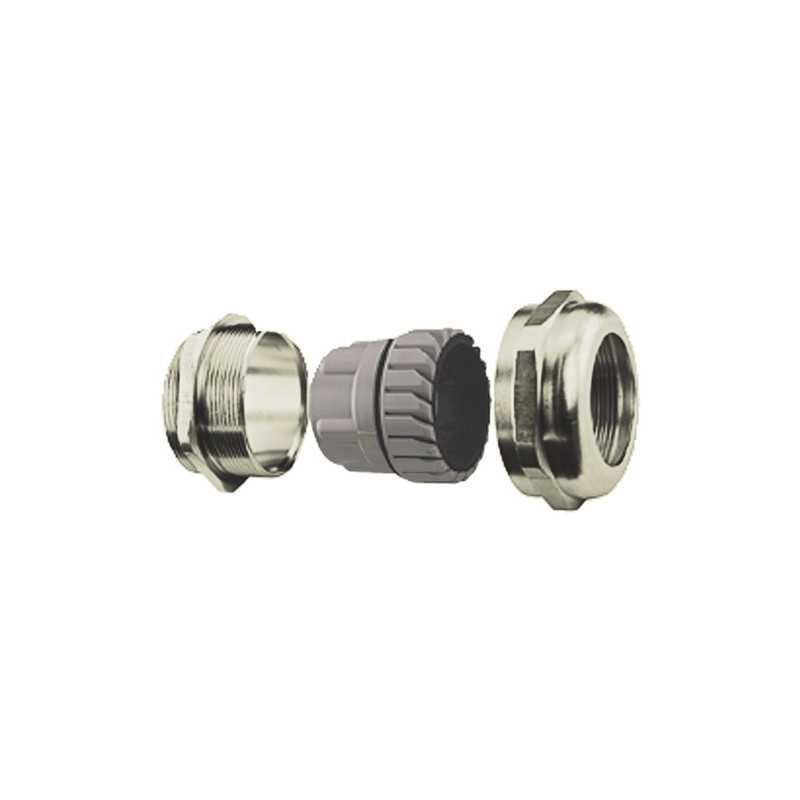

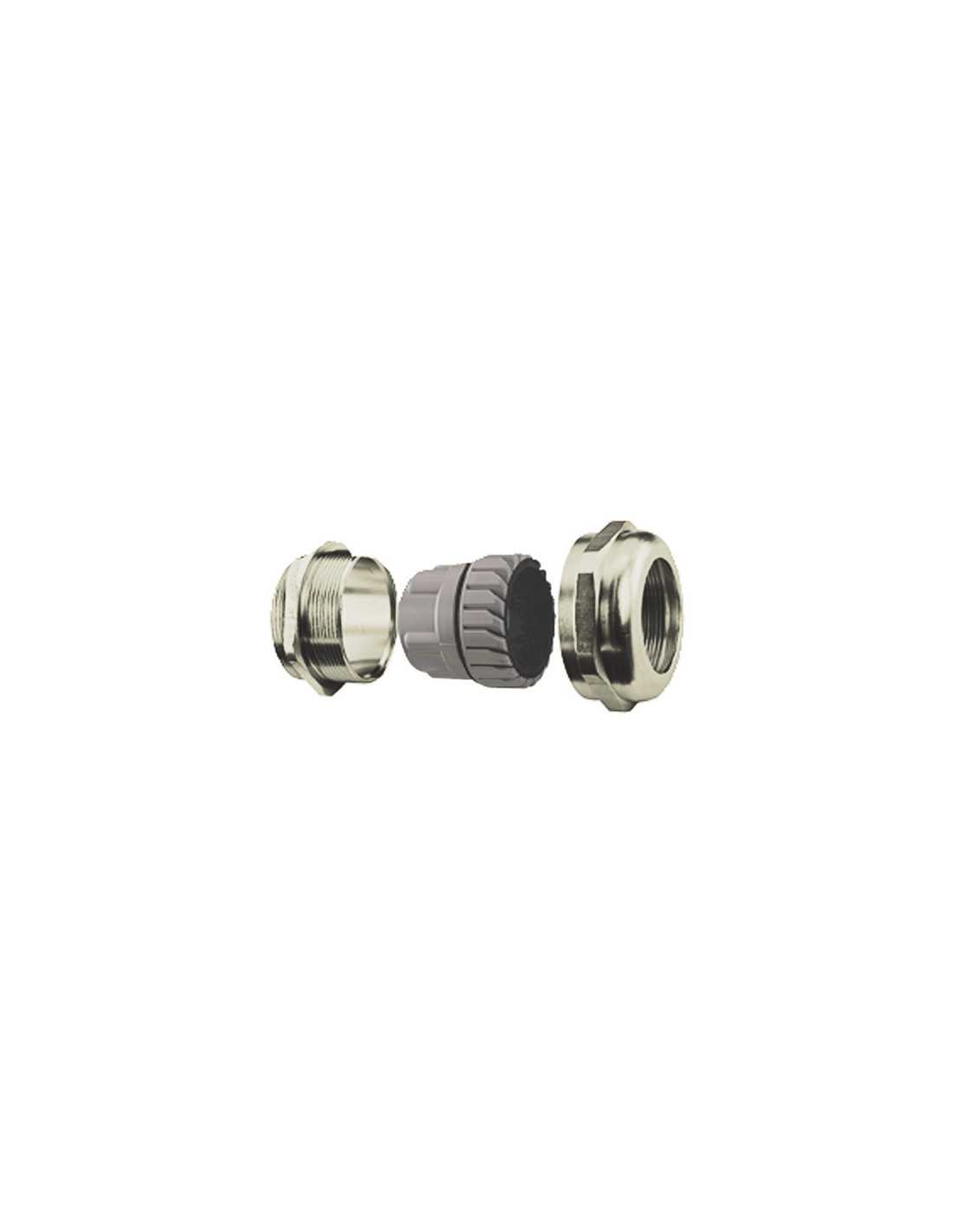

PG42 27-40 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid tight strain relief - cable gland for PG42 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for PG42 thread.
Standard Straight-Through
Nickel Plated Brass
Technical Properties
- Seal rings included for PG and Metric sizes
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- PG42
- Standard Package
- 5
- Conductor Configuration
- Straight-Through
- Thread Type
- PG
- Min Cable Diameter (mm)
- 27
- Max Cable Diameter (mm)
- 40
- Body Material
- Nickel Plated Brass
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

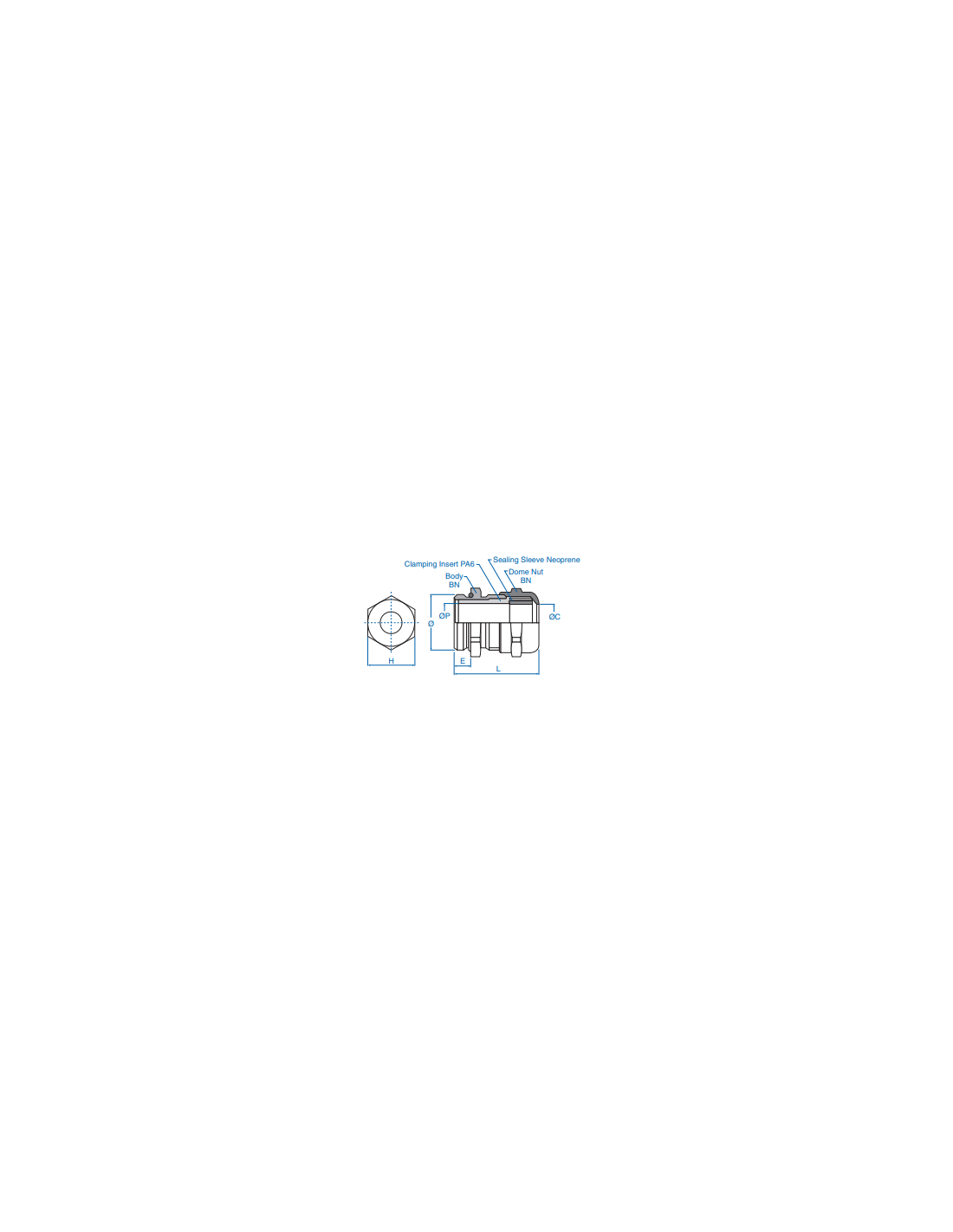

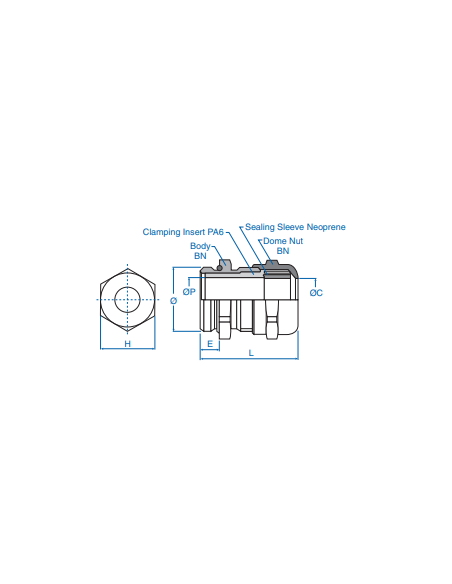

- H mm
- 58
- E mm
- 10
- L mm
- 47
- Ø C mm
- 40.5
- Ø P mm
- 41
- Ø Thread mm
- 54
4220342
