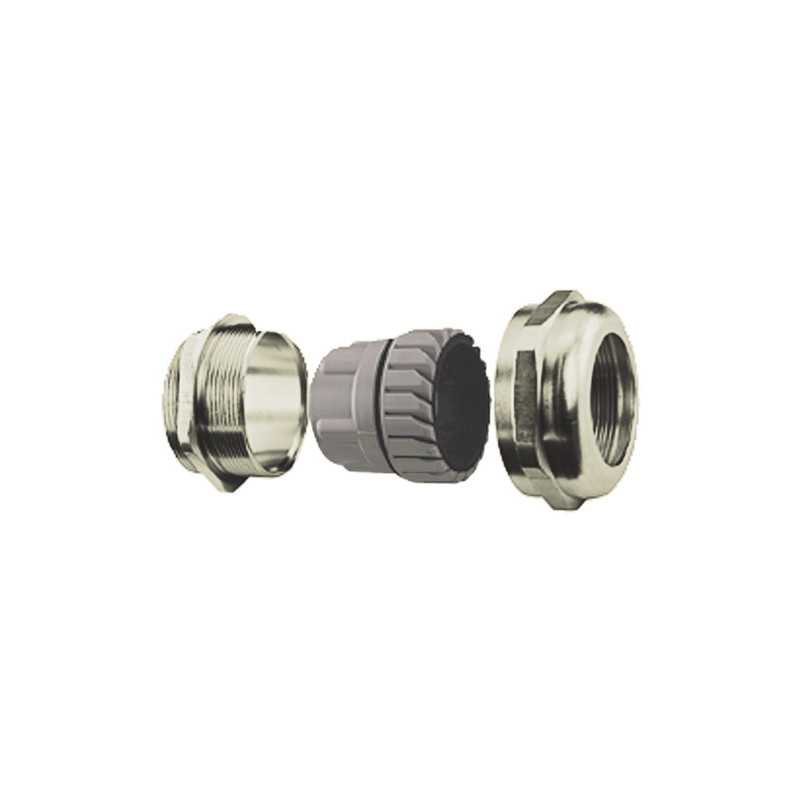

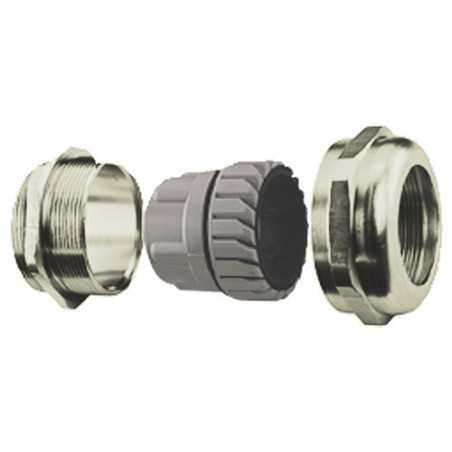

PG36 22-34.5 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid tight strain relief - cable gland for PG36 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for PG36 thread.
Standard Straight-Through
Nickel Plated Brass
Technical Properties
- Seal rings included for PG and Metric sizes
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- PG36
- Standard Package
- 10
- Conductor Configuration
- Straight-Through
- Thread Type
- PG
- Min Cable Diameter (mm)
- 22
- Max Cable Diameter (mm)
- 34.5
- Body Material
- Nickel Plated Brass
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

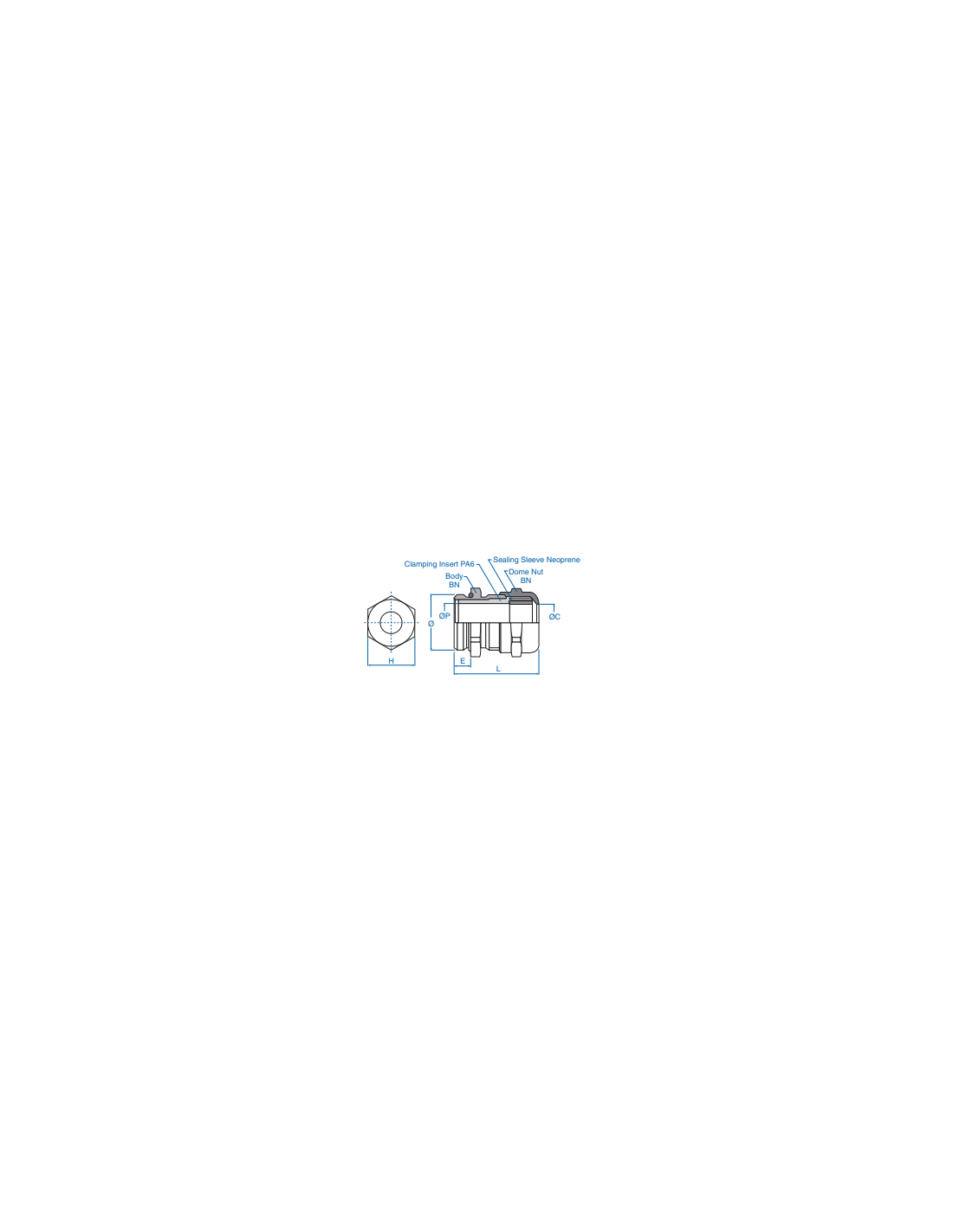

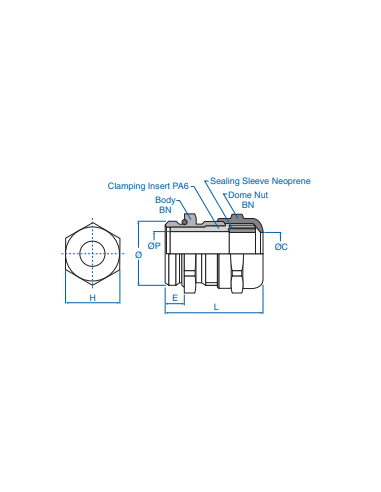

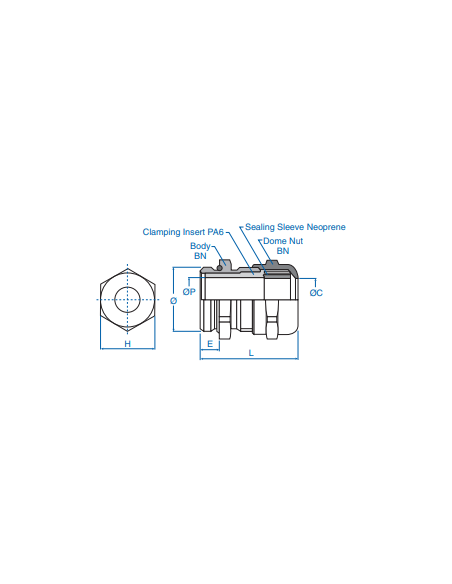

- H mm
- 50
- E mm
- 9
- L mm
- 42
- Ø C mm
- 34.5
- Ø P mm
- 35
- Ø Thread mm
- 47
4220336
