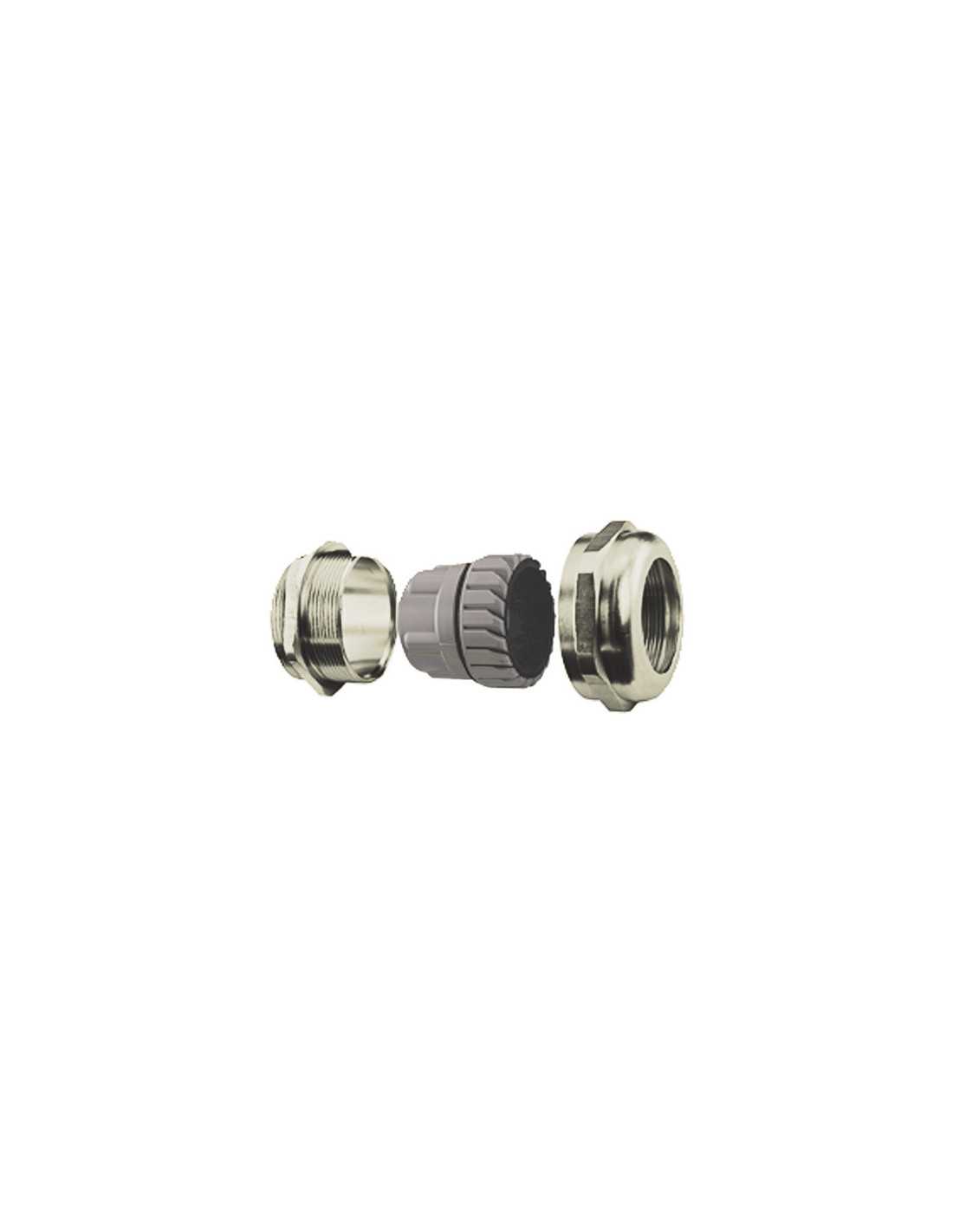

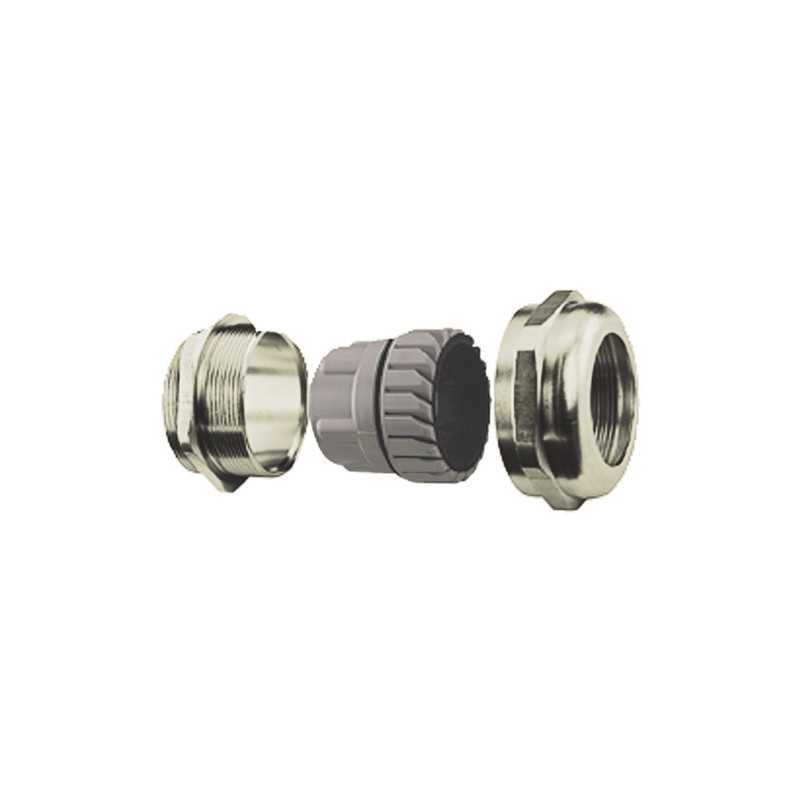

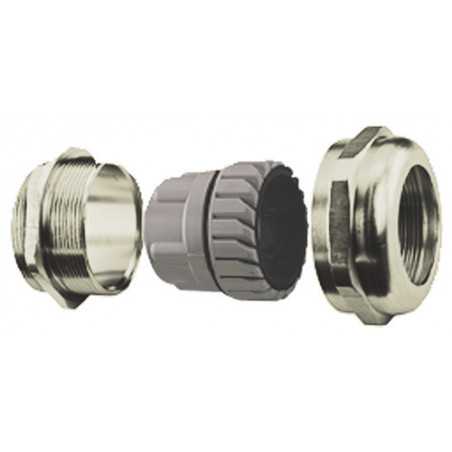

PG9 4-9.5 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid tight strain relief - cable gland for PG9 thread.
Click for Data Sheet
Liquid tight strain relief - cable gland for PG9 thread.
Standard Straight-Through
Nickel Plated Brass
Technical Properties
- Seal rings included for PG and Metric sizes
- Maximum strain relief through clamp range
- Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
- Gas and watertight
- Series
- Standard
- Thread
- PG9
- Standard Package
- 50
- Conductor Configuration
- Straight-Through
- Thread Type
- PG
- Min Cable Diameter (mm)
- 4
- Max Cable Diameter (mm)
- 9.5
- Body Material
- Nickel Plated Brass
- Seal Material
- Neoprene
- Temperature Range
- -25 to 100°C (-13 to 212°F)

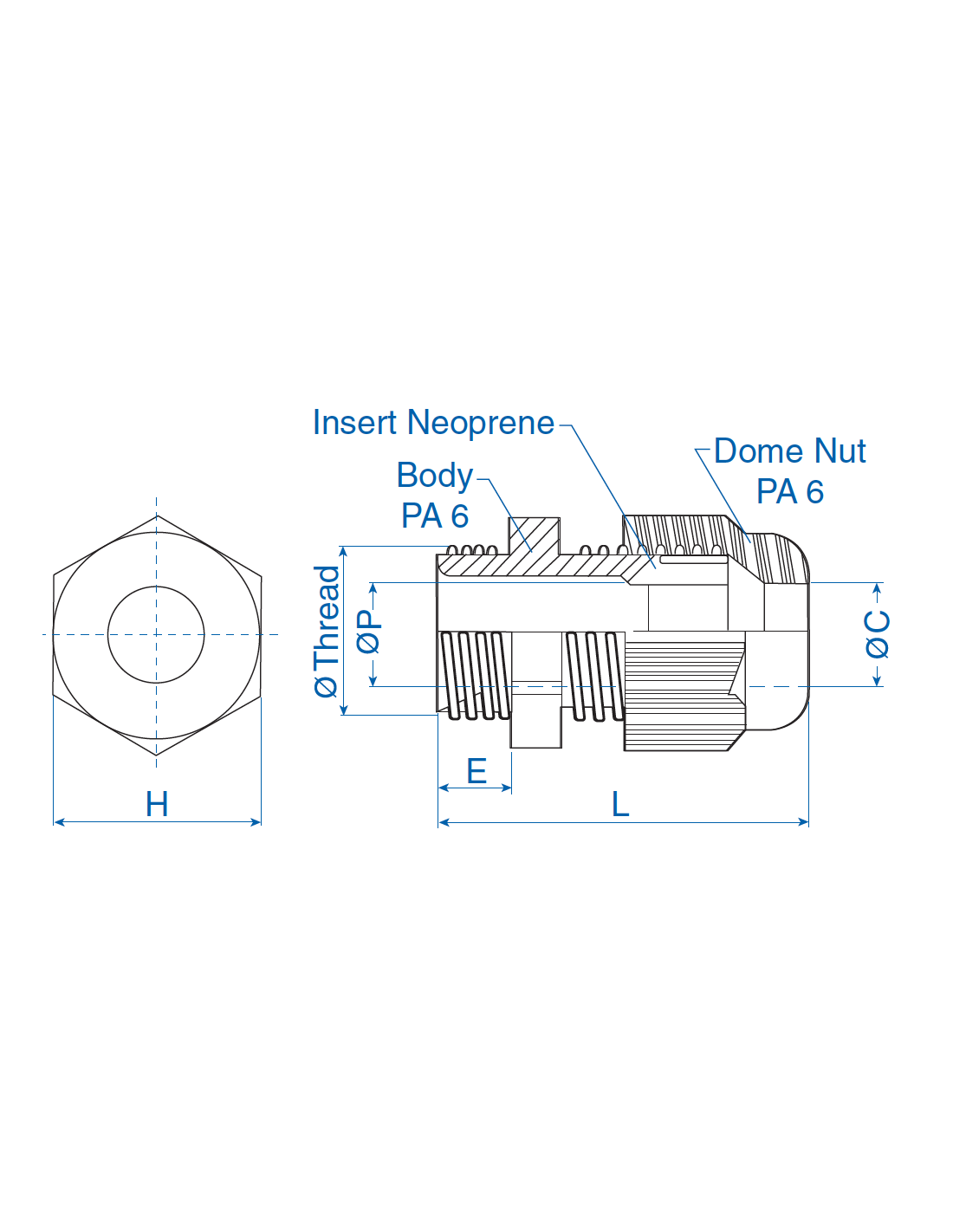

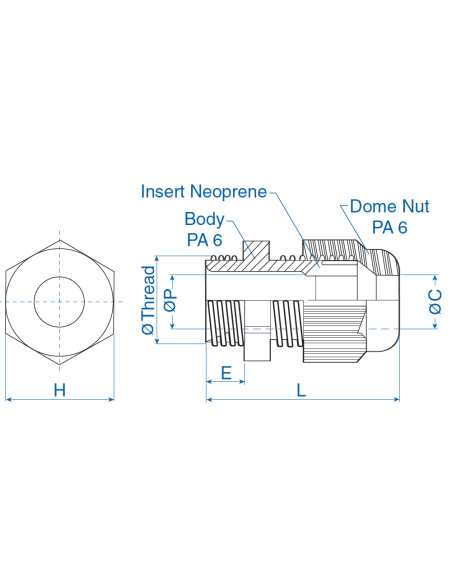

- H mm
- 17
- E mm
- 6
- L mm
- 29
- Ø C mm
- 9.7
- Ø P mm
- 10
- Ø Thread mm
- 15.2
