- Color
- Black Housing

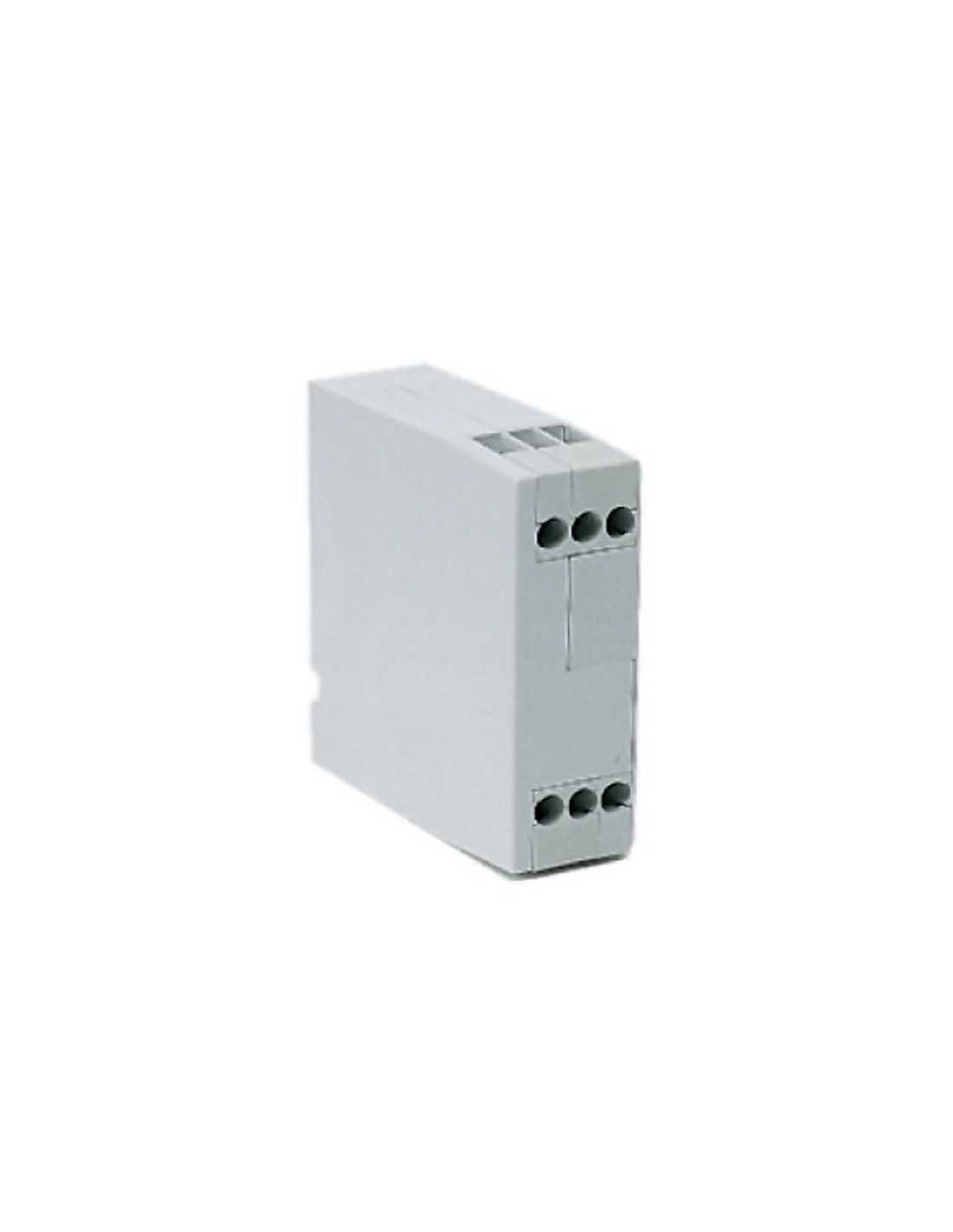

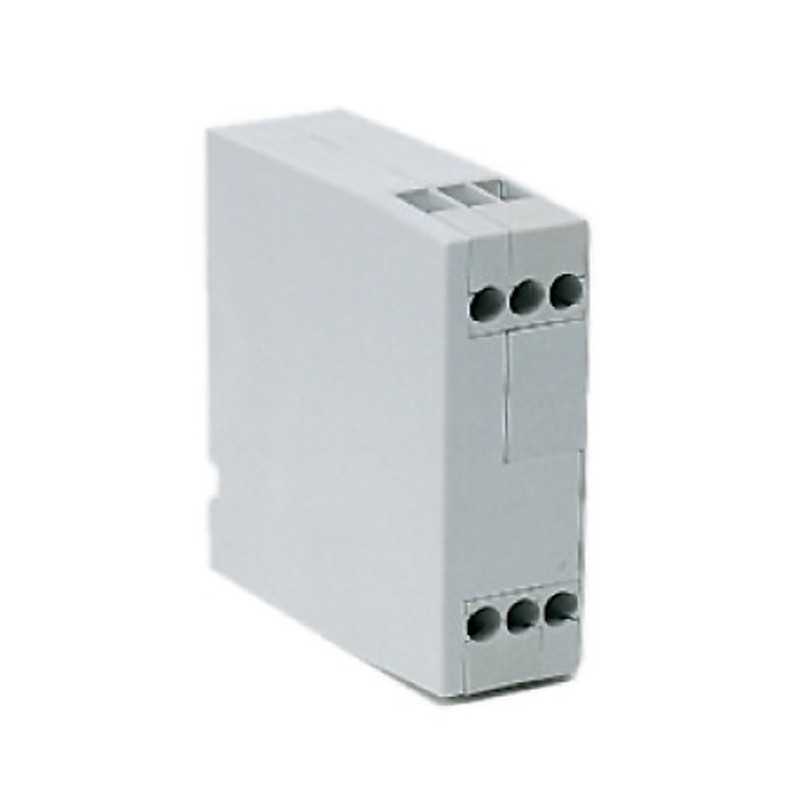

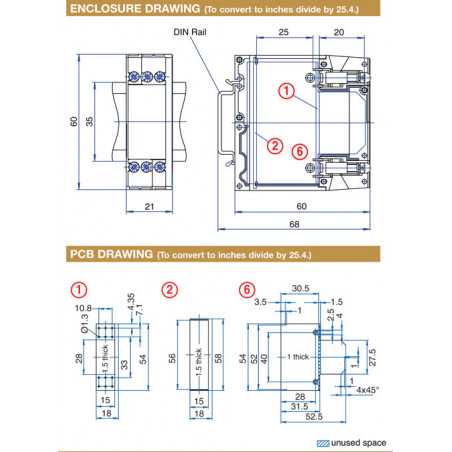

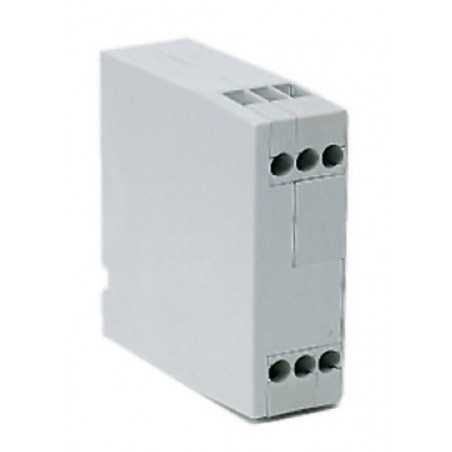

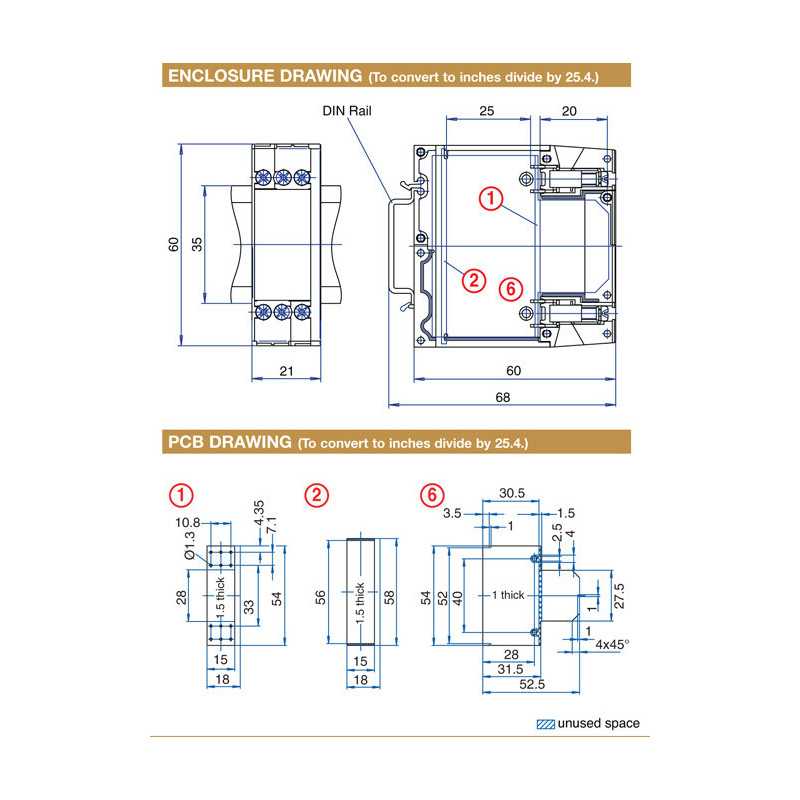

Tan Cover - Series
- KO4070
- Electrical
- 16A
22-12 AWG
300V - Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 6
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- PCB Connection
- Solder Pins
- PCB Locations
- (1) Vertical
(2) Parallel
Perpendicular
91.020
