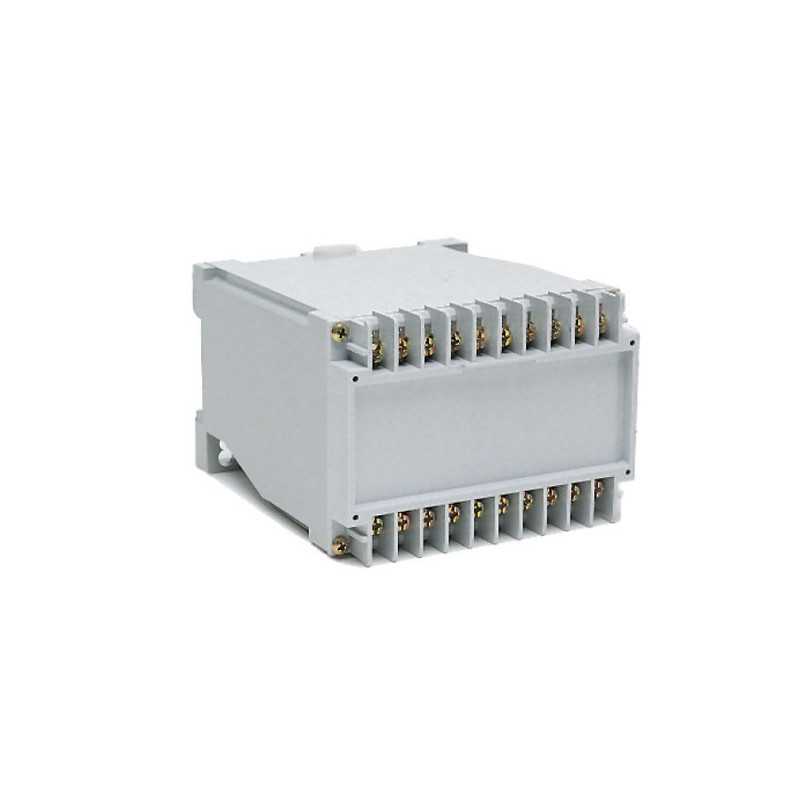

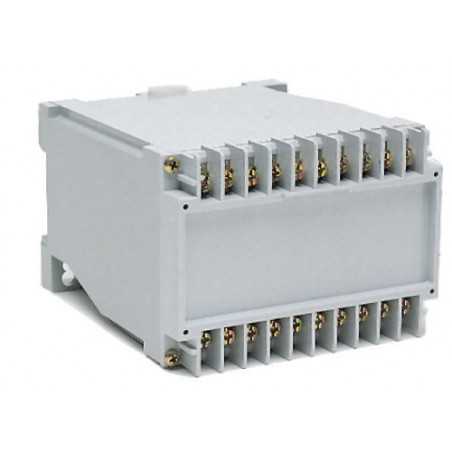

K70 Series 20 Terminal - Screw Clamp
20 Terminal, Solder/ Tab Connection, Single Level Terminals, 35 mm DIN Rail
- Color
- Light grey
- Series
- K70
- Electrical
- 22-14 AWG
25A
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 20
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (4) Vertical
(6) Horizontal - PCB Connection
- Fast On
Wire Jumper - Cover Material
- Glass-filled Polycarbonate
90.080
