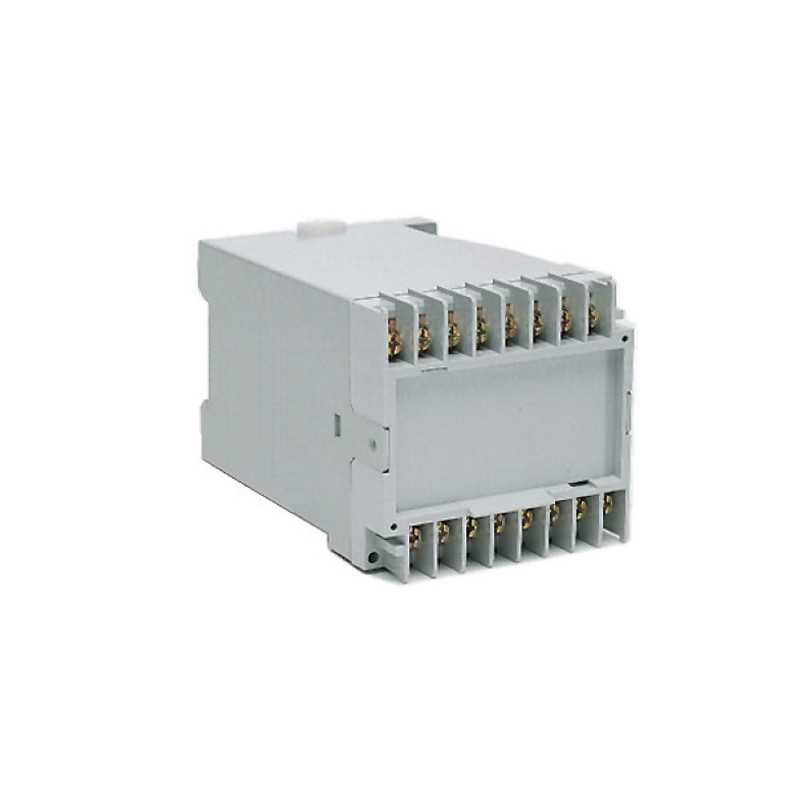

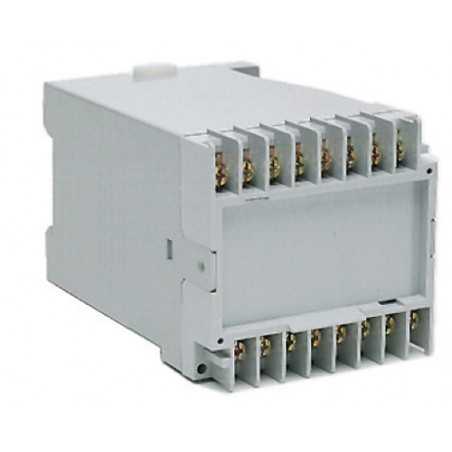

    K70 Series 16 Terminal - Screw Clamp

    16 Terminal, Pluggable Connection, Single Level Terminals, 35 mm DIN Rail or panel mount


    Color
    Light grey
    Series
    K70
    Electrical
    10A
    22-14AWG
    300V
    Temperature Range
    Up to 125°C (257°F)
    Standard Package
    1
    Customizable
    Yes
    Terminals Count
    16
    Termination Type
    Screw Clamp
    DIN Rail
    35
    Housing Material
    Glass-filled Polycarbonate
    Recommended Torque
    0.8Nm

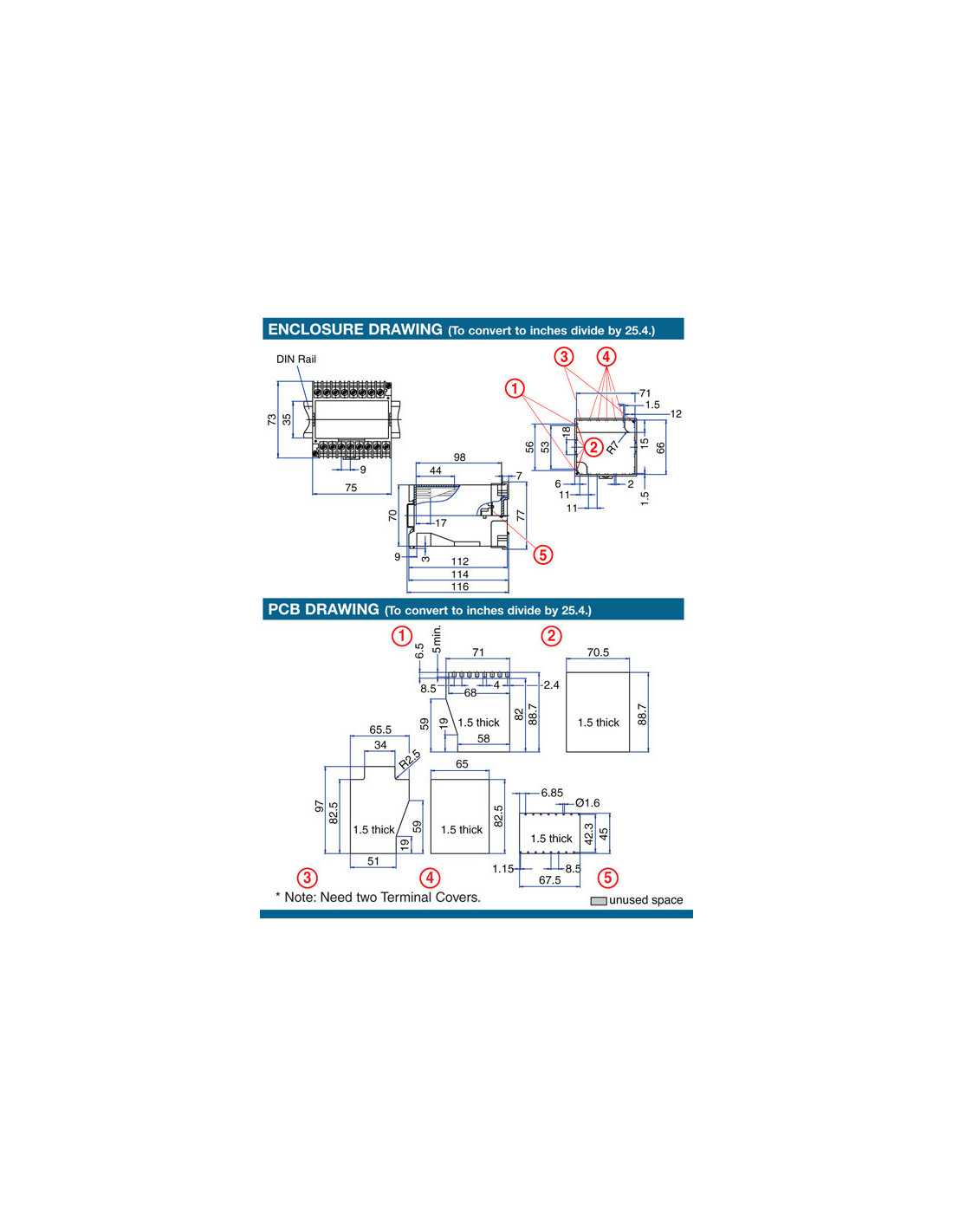

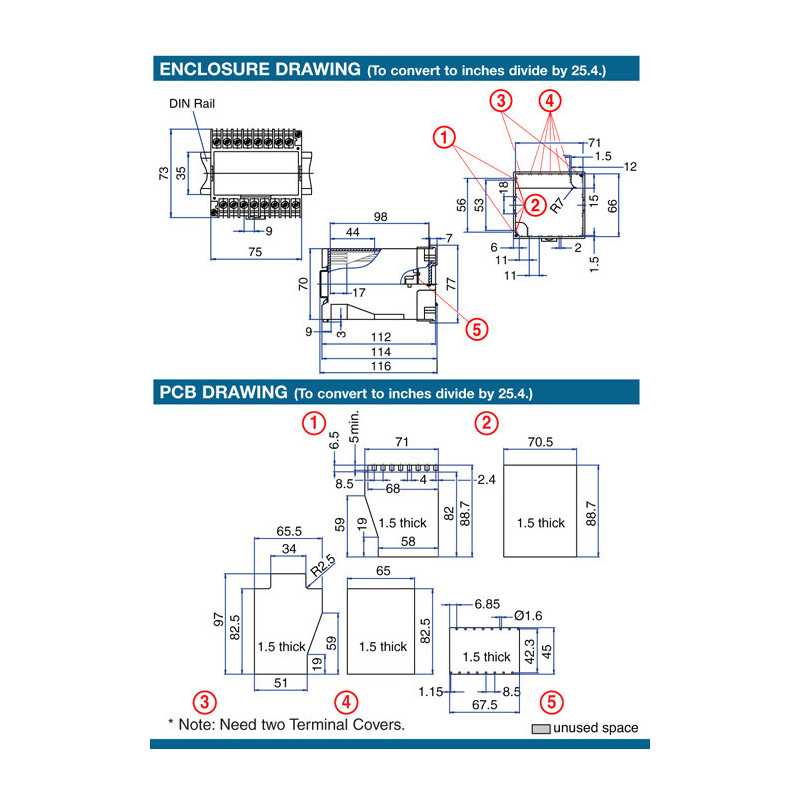

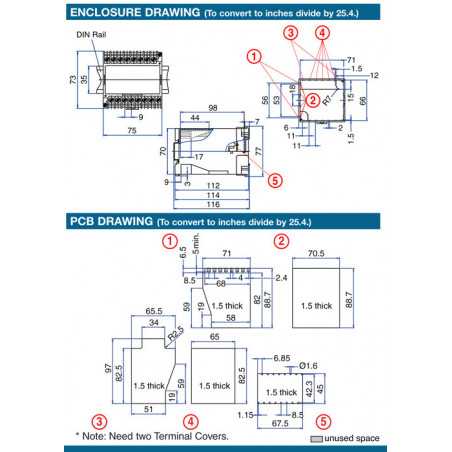

    Max. PCB's
    (1) Behind cover
    (6) Horizontal
    (7) Vertical
    PCB Connection
    Card Edge
    Solder Pin
    Wire Jumper
    Cover Material
    Glass-filled Polycarbonate
    90.050
