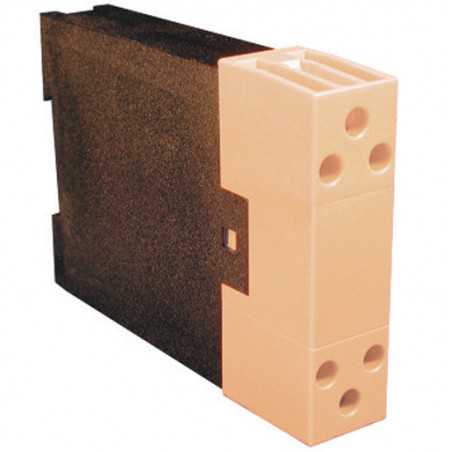

KO4700 Series 6 Terminal - Screw Clamp
6 Terminal, with 6 High Current Terminals, Solder Connection, Removable High Current Wire Jumper Terminals, 35mm DIN Rail or optional panel mounting*
- Color
- Black Housing
Tan Cover - Series
- KO4700
- Electrical
- 18-8AWG
40A
300V - Temperature Range
- Up to 125°C (257°F)
- Standard Package
- 1
- Customizable
- Yes
- Terminals Count
- 6
- Termination Type
- Screw Clamp
- DIN Rail
- 35
- Housing Material
- Glass-filled Polycarbonate
- Recommended Torque
- 0.8Nm
- Max. PCB's
- (2) Horizontal
(2) Vertical - PCB Connection
- Wire Jumper
- Cover Material
- Glass-filled Polycarbonate
90.815
No reviews
Tap to zoom
