GMC-12M-10-AC120V MC Series - MINI Contactors
GMC-12M-10-AC120V MC Series - MINI Contactors
Suitable for the switching and protection of motors, capacitor banks, lights, and other AC circuit applications. Thermal style overload relays can be easily attached for motor protection and various accessories are also available including coil surge suppression, timer unit, auxiliary contacts.
Featuring low power consumption type coils which can often be driven directly from a PLC without additional output relays.

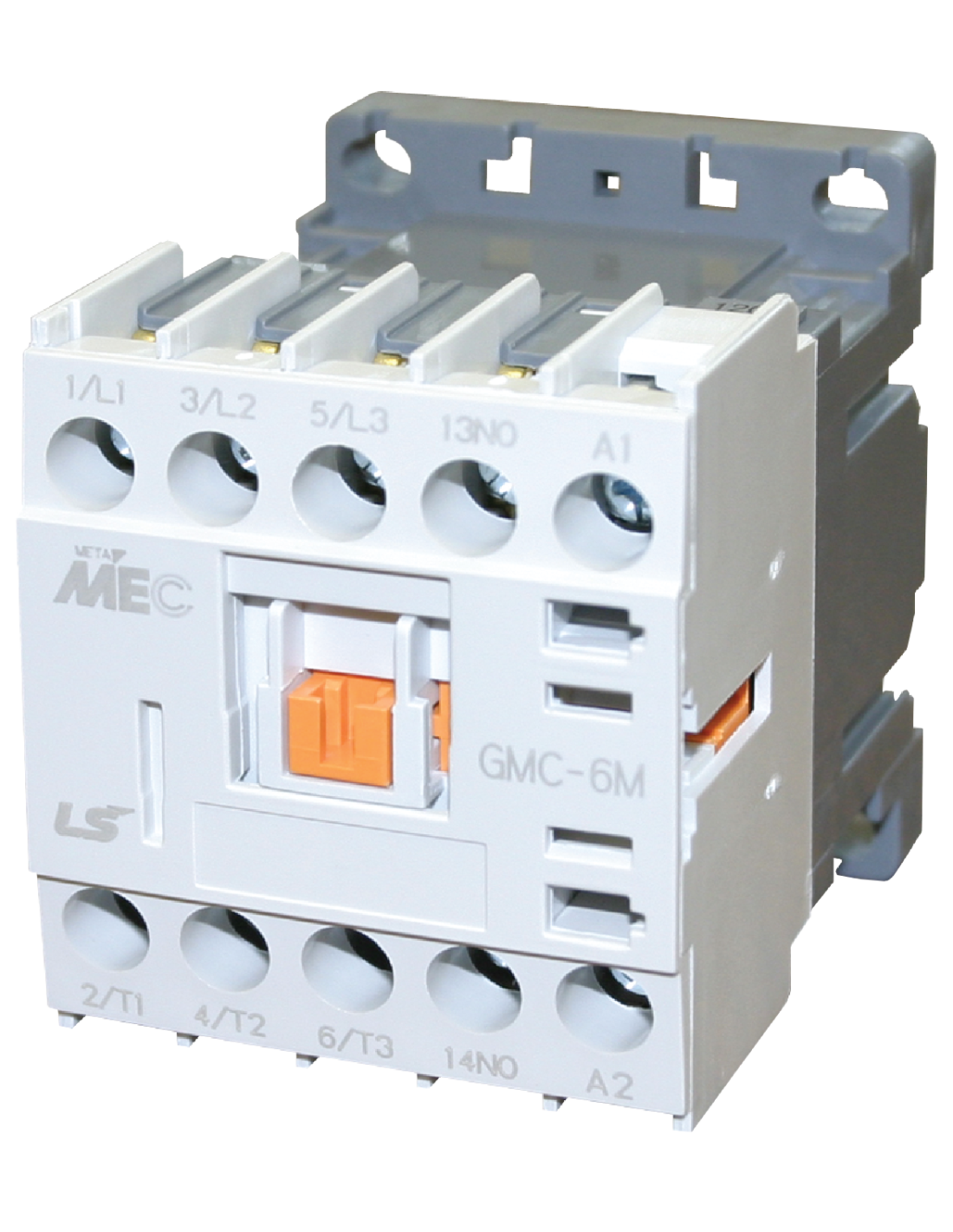

< Product photo may vary depending on part number selection.
- MC MINI Contactor Type
- 12A
- MC MINI Number of Poles
- 3 NO main Contacts, 1 auxilliary Contact
- MC MINI NEMA size
- 00
- MC MINI Standard Auxilaries
- 1NO
- MC MINI Coil Voltage AC/DC Coil
- 120V
- MC MINI Frequency
- 50/60 Hz
- MC MINI HP Continuous Current
- 20A
- MC MINI Contactor HP Rating 110~120V
- 1
- MC MINI Contactor HP Rating Single Phase 220~240V
- 2
- MC MINI Contactor HP Rating Three Phase 240V
- 3
- MC MINI Contactor HP Rating Three Phase 480V
- 7.5
- MC MINI Contactor HP Rating Three Phase 600V
- 10
- MC MINI Terminal Type
- Screw Clamp
GMC-12M-10-AC120V
