    MC-100A-AC24V MC Series Contactors - 3 Pole 100AF Frame AC
    MC-100A-AC24V MC Series Contactors - 3 Pole 100AF Frame AC
    MC-100A-AC24V MC Series Contactors - 3 Pole 100AF Frame AC
    MC-100A-AC24V MC Series Contactors - 3 Pole 100AF Frame AC

    MC-100A-AC24V MC Series Contactors - 3 Pole 100AF Frame AC

    MC-100A-AC24V MC Series Contactors - 100AF Frame

    Standards and Certifications
    • UL508
    • IEC 60947-2 &60947-2
    • CSA C22.2 No. 14
    Features
    • 8 Frame sizes
    • 1/2 HP up to 600HP m@ 480V AC
    • Screw terminals (Lug Terminals Available)
    • Optional accessories
      • Additional Auxiliary contacts
      • Replacement Coils
      • Reversing Wiring Adapters for MMS
      • Coil Surge Suppressors

    General Specifications

    Maximum Voltage

    		600V AC
    Rated Frequency50/60Hz
    Operating Temperature-5°C (23°F) to +40°C (104°F)

    Degree of protectionIP20
    Resistance to Vibration (5-300Hz)> 15g
    Flame resistanceAccording to UL94

    DATA SHEET

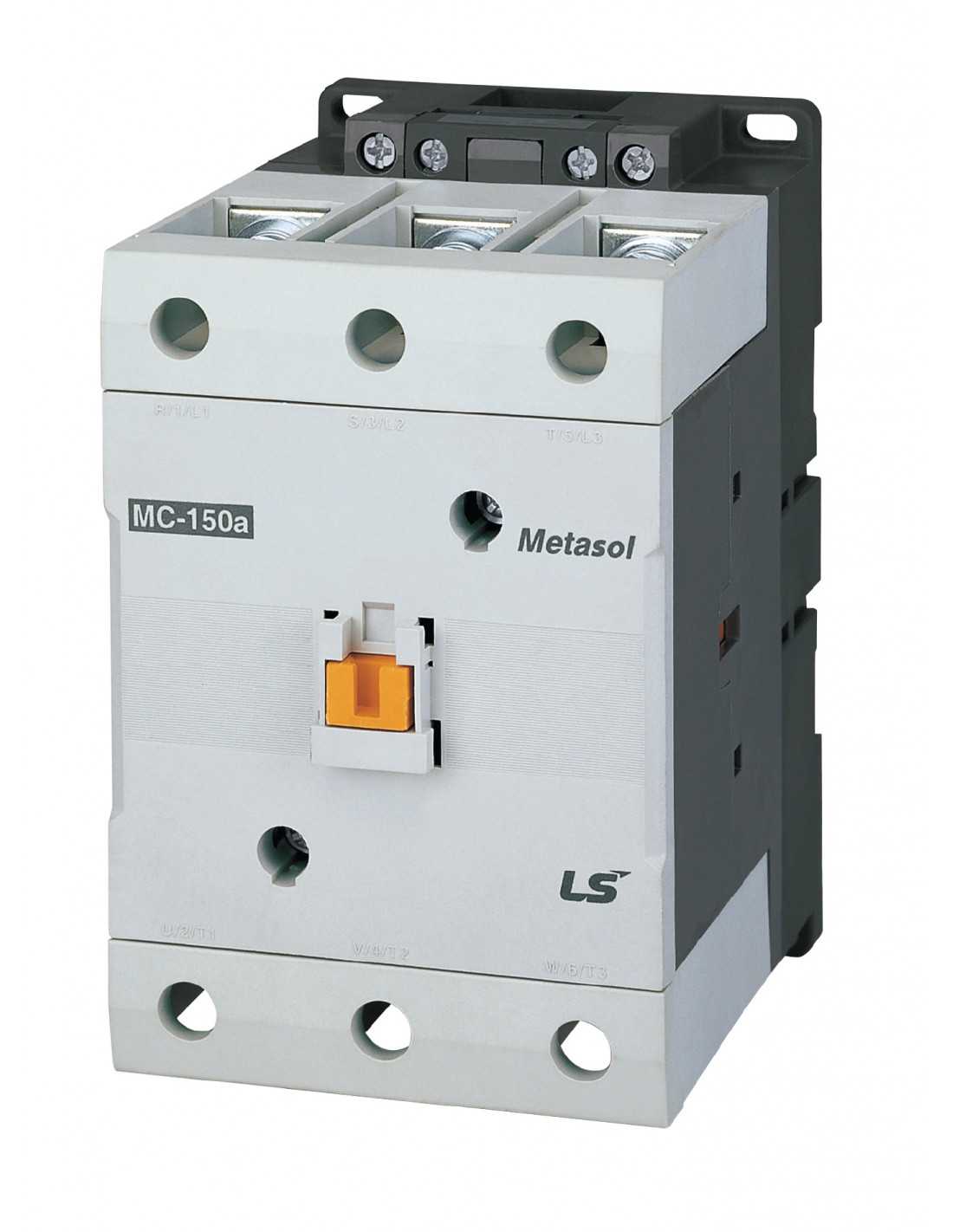

    < Product photo may vary depending on part number selection.

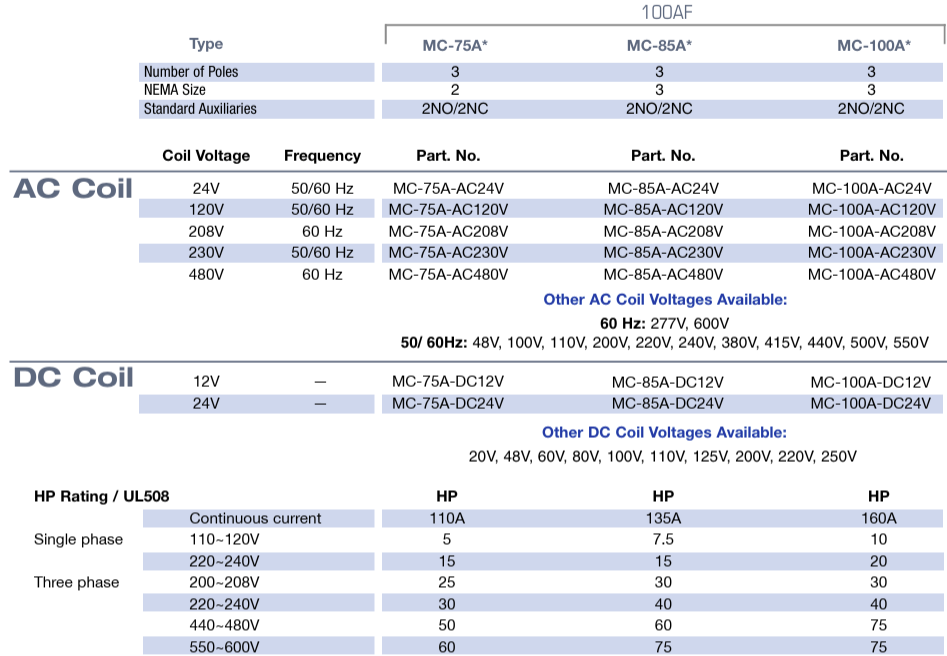

    Contactor Coil Voltage
    24V
    Contactor Number of Poles
    3
    Contactor NEMA Size
    3
    Contactor Standard Auxiliaries
    2NO/2NC
    Contactor Frequency
    50/60 Hz
    Contactor HP Rating Continuous Current
    160A
    MC Contactor Single Phase (110-120)
    10
    MC-100A-AC24V
