MC-75A-AC480V MC Series Contactors - 3 Pole 100AF Frame AC
MC-75A-AC480V MC Series Contactors - 100AF Frame
Standards and Certifications
- UL508
- IEC 60947-2 &60947-2
- CSA C22.2 No. 14
Features
- 8 Frame sizes
- 1/2 HP up to 600HP m@ 480V AC
- Screw terminals (Lug Terminals Available)
- Optional accessories
- Additional Auxiliary contacts
- Replacement Coils
- Reversing Wiring Adapters for MMS
- Coil Surge Suppressors
General Specifications
Maximum Voltage | 600V AC |
| Rated Frequency | 50/60Hz |
| Operating Temperature | -5°C (23°F) to +40°C (104°F) |
| Degree of protection | IP20 |
| Resistance to Vibration (5-300Hz) | > 15g |
| Flame resistance | According to UL94 |
DATA SHEET

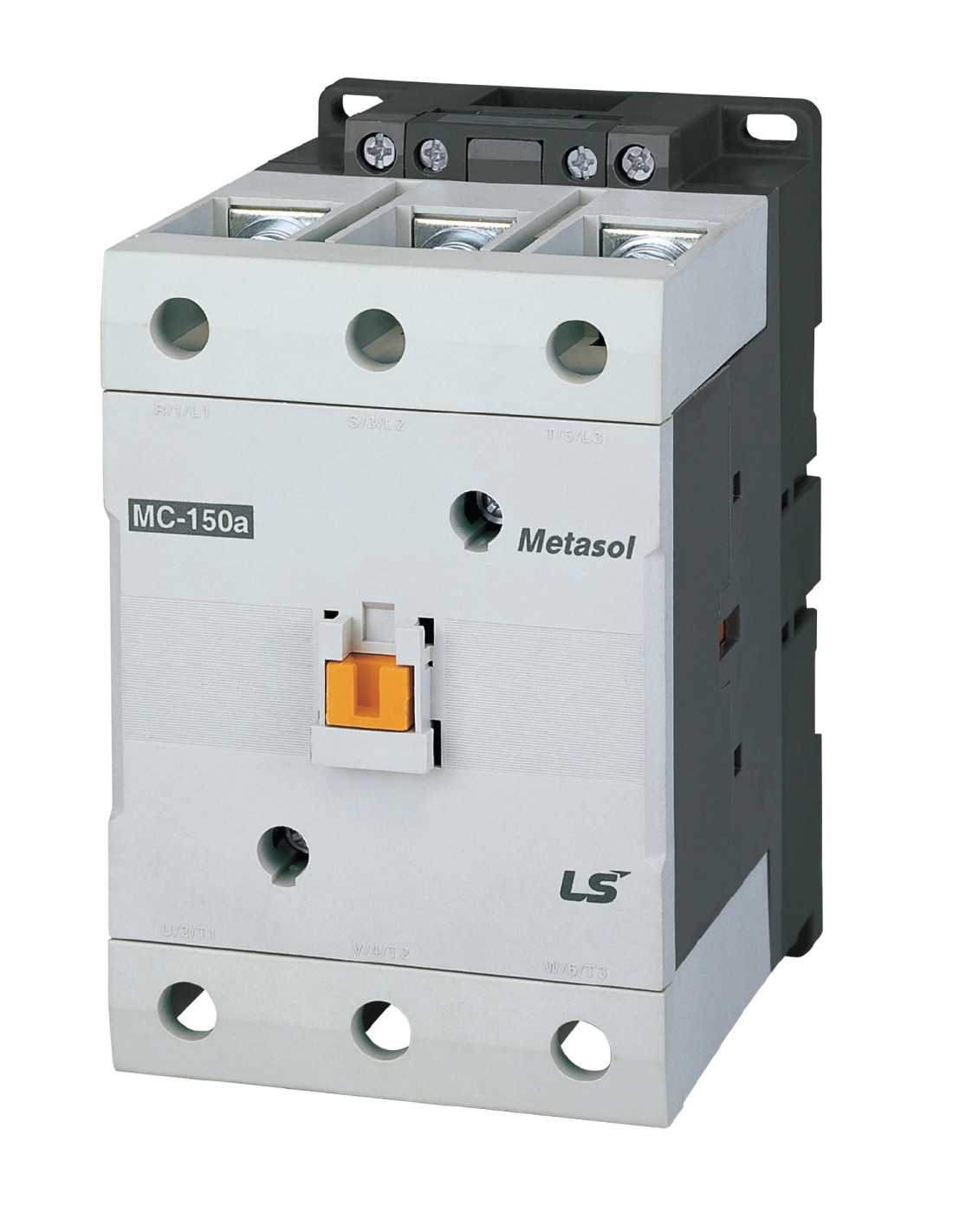

< Product photo may vary depending on part number selection.
- Contactor Coil Voltage
- 480V
- Contactor Number of Poles
- 3
- Contactor NEMA Size
- 2
- Contactor Standard Auxiliaries
- 2NO/2NC
- Contactor Frequency
- 60 Hz
- Contactor HP Rating Continuous Current
- 110A
- MC Contactor Single Phase (110-120)
- 5
- MC Contactor Single Phase (220-240)
- 15
- MC Contactor Three Phase (200-208V)
- 25
- MC Contactor Three phase (220-240)
- 30
- MC Contactors Three phase (440-480)
- 50
- MC Contactor Three Phase (550-600)
- 60
- MC Contactor Type
- MC-75A
MC-75A-AC480V
