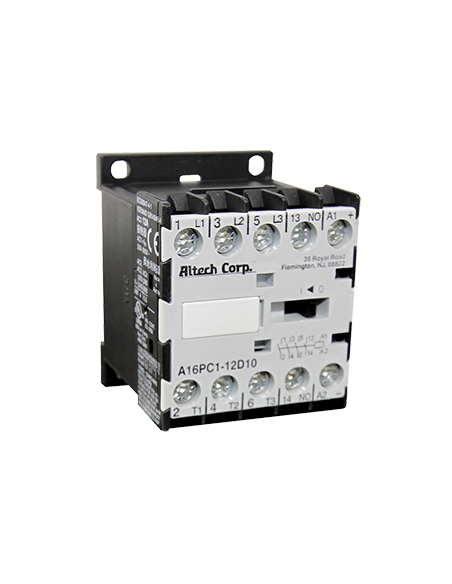

A16PC1-09D10-AC110V PC Series Contactors - MINI Frame (1 Phase, 3 Phase)
A16PC1-09D10-AC110V Series Contactors - MINI Frame
Suitable for the switching and protection of motors, capacitor banks, lights, and other AC circuit applications. Thermal style overload relays can be easily attached for motor protection and various accessories are also available including coil surge suppression and auxiliary contacts.
Featuring low power consumption type coils which can often be driven directly from a PLC without additional output relays.
DATA SHEET

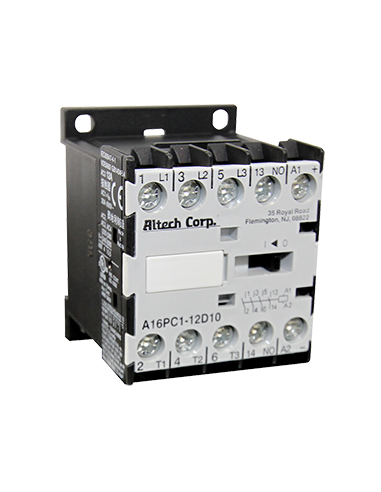

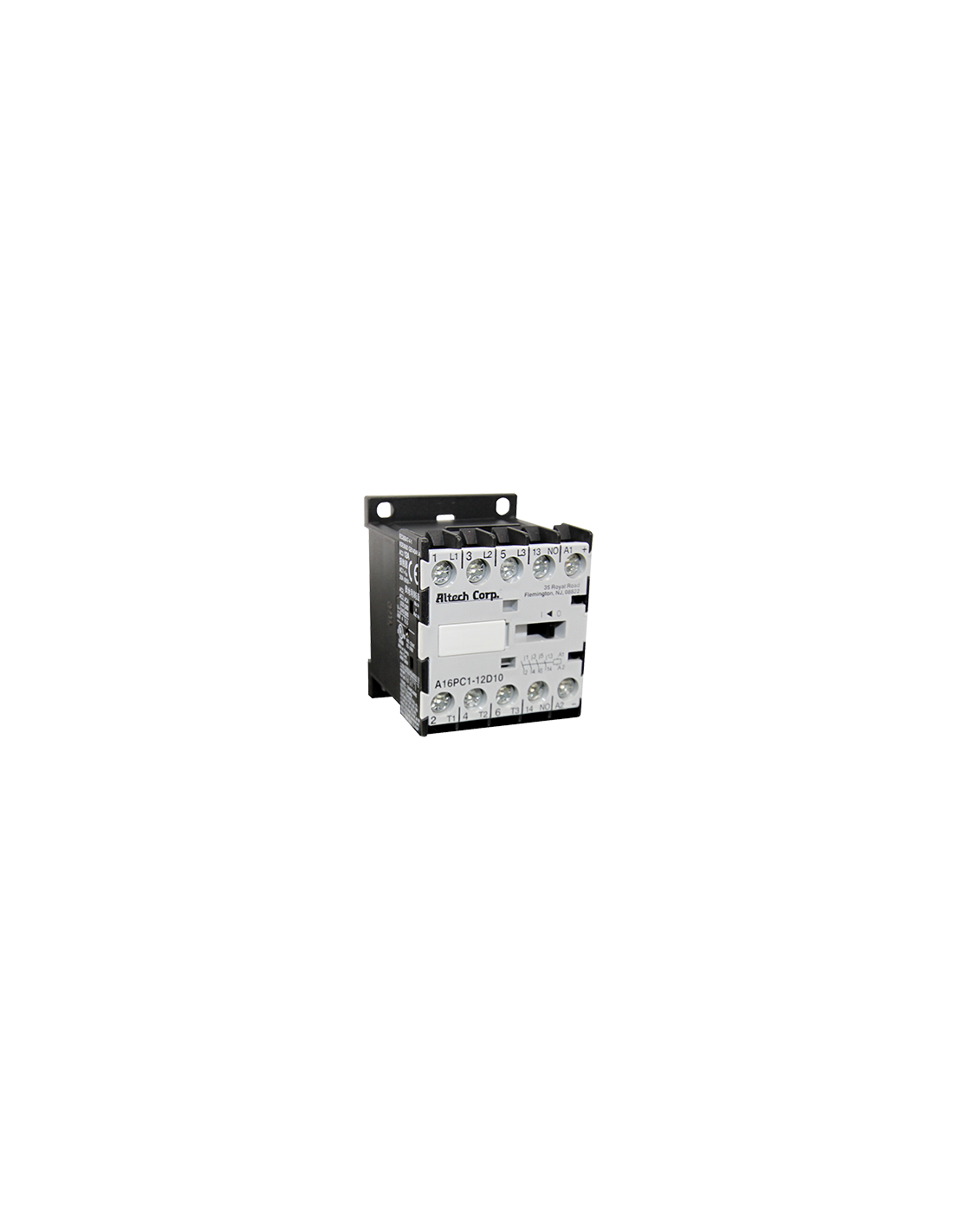

< Product photo may vary depending on part number selection.
- Contactor Coil Voltage
- 120-125V
- Contactor Current Rating - Motor FLA @600V AC3 @380-400V
- 9A
- Contactors HP 110-120V (1 Phase, 3 Phase)
- 1/2 , 1 1/2
- Contactors HP 200V (1 Phase, 3 Phase)
- 1 , 3
- Contactors HP 220-240V (1 Phase, 3 Phase)
- 1 1/2 , 3
- Contactors HP 440-480V (1 Phase, 3 Phase)
- NA , 5
- Contactor HP 550-600V (1 Phase, 3 Phase)
- NA , 7 1/2
- Contactor General Use
- 15A (20A)
A16PC1-09D10-AC110V
