A16PC3-90A00-24V PC Series Contactors - 115A Frame (1 Phase, 3 Phase)
A16PC3-90A00-24V Series Contactors - 115A Frame
Features
- Minimum size & Maximum performance
- Ambient temperatures – 40°C up to + 90°C
- Designed for the operation under extreme conditions (heat, dust, sand, high humidity, vibrations, shock) •
- Bounce free, self cleaning aux. contacts, suitable for switching electronic circuits => highest contact reliability
- Current ratings from 10A to 115A
- Adjustable Overload Relays from 0.18A to 85A
DATA SHEET

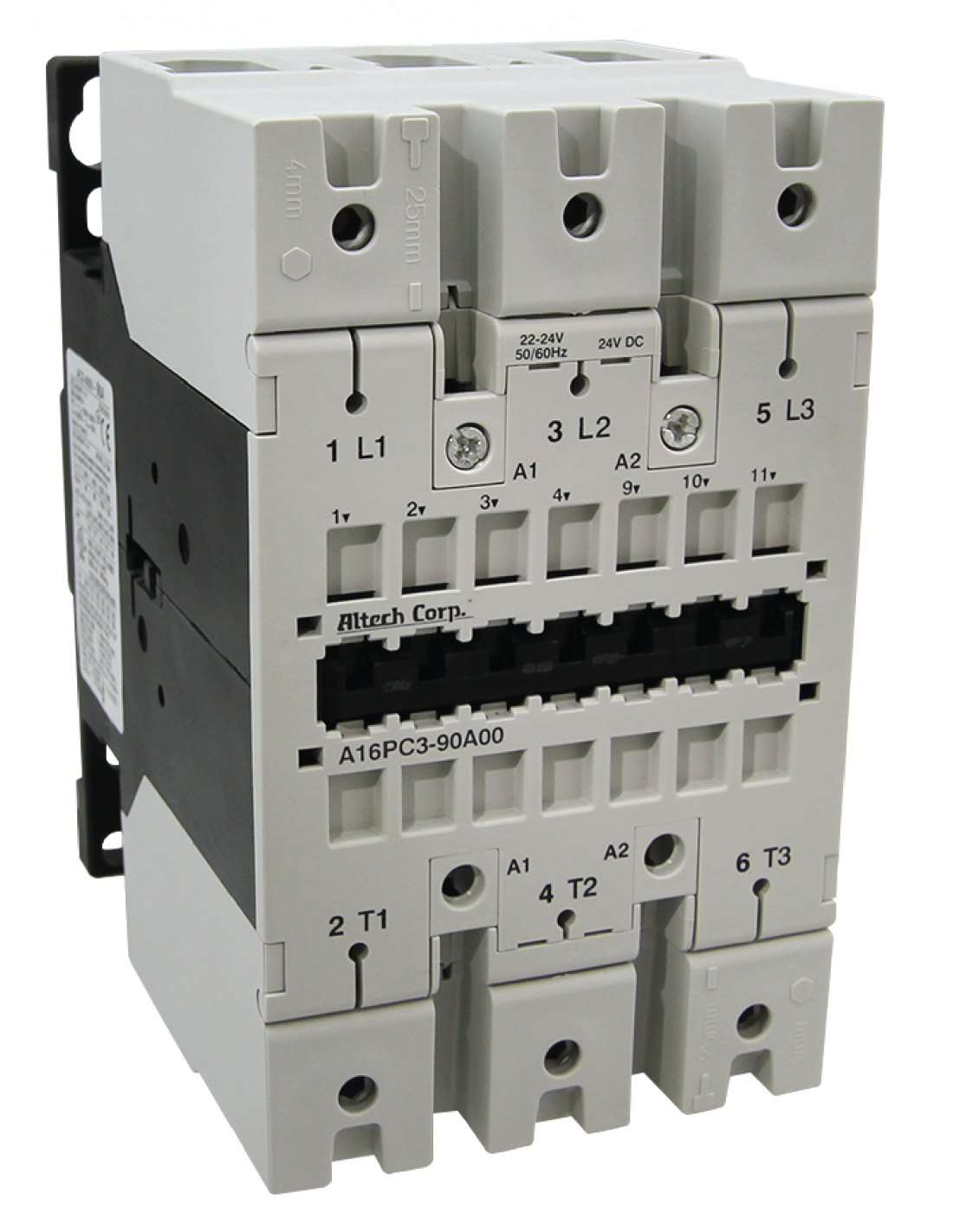

< Product photo may vary depending on part number selection.

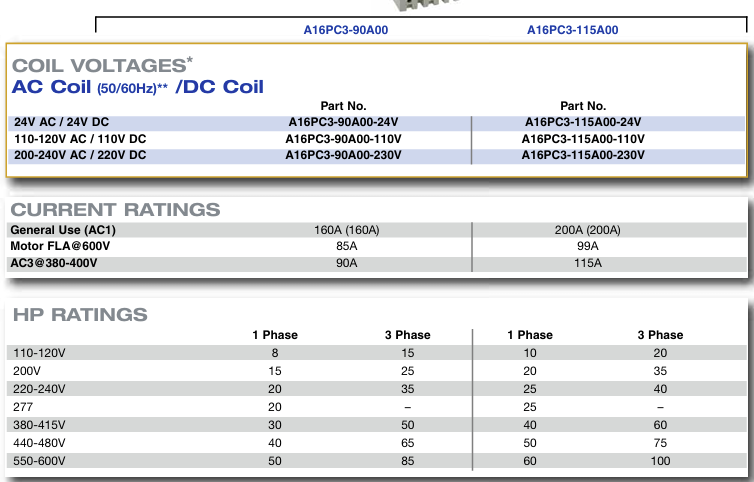

- Contactor Coil Voltage
- 24V AC/24V DC
- Contactor Current Rating - Motor FLA @600V AC3 @380-400V
- 85A, 90A
- Contactors HP 110-120V (1 Phase, 3 Phase)
- 8, 15
- Contactors HP 200V (1 Phase, 3 Phase)
- 15 , 25
- Contactors HP 220-240V (1 Phase, 3 Phase)
- 20 , 35
- Contactors HP 277V (1 Phase, 3 Phase)
- 20 , NA
- Contactors HP 380-415V (1 Phase, 3 Phase)
- 30 , 50
- Contactors HP 440-480V (1 Phase, 3 Phase)
- 40 , 65
- Contactor HP 550-600V (1 Phase, 3 Phase)
- 50 , 85
- Contactor General Use
- 160 (160A)
A16PC3-90A00-24V
