    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”
    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”
    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”
    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”
    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”
    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”

    1B16UM - DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”

    • DIN Rail Mounted

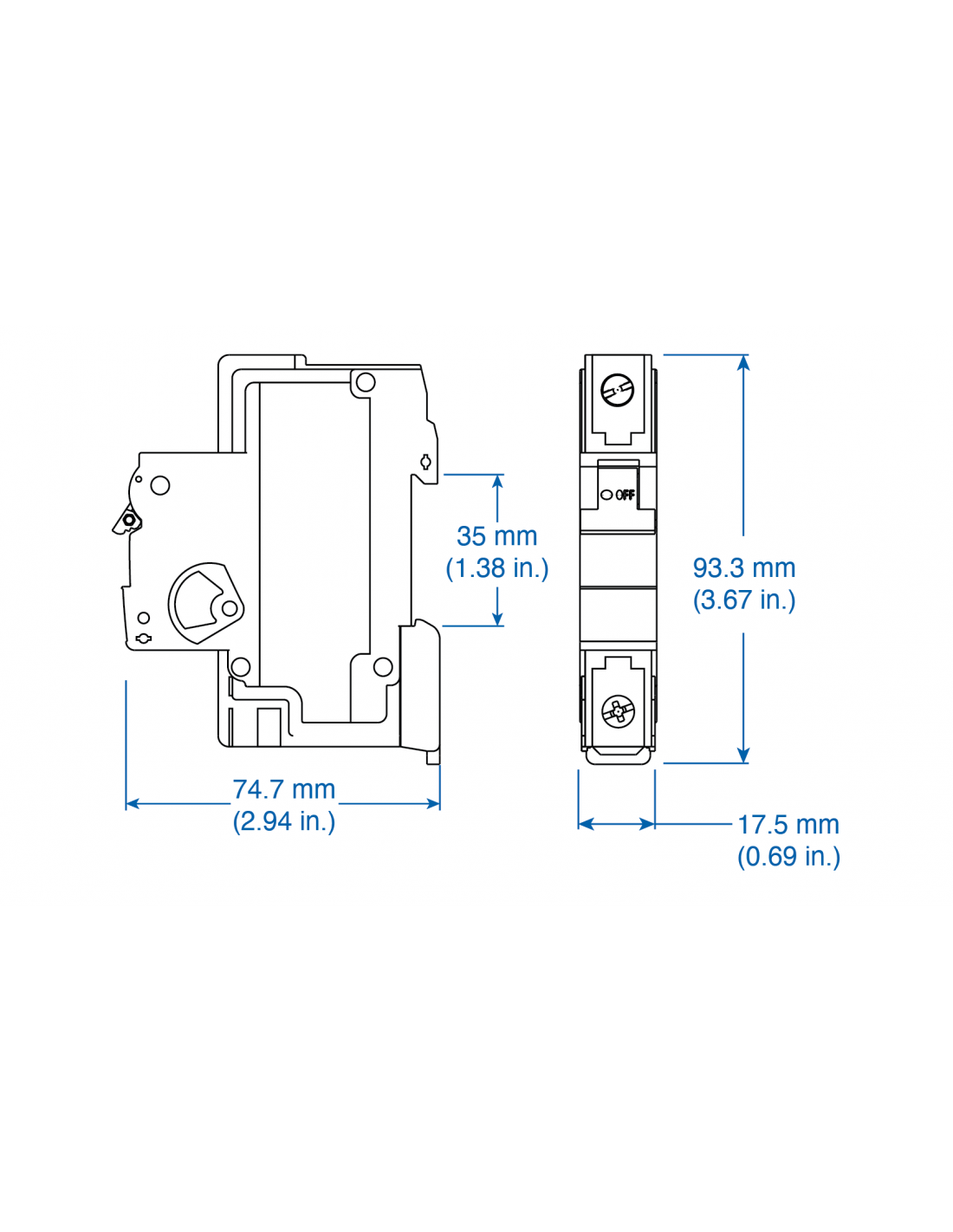

    • 17.5mm width per pole
    • Thermal Magnetic
    • 0.3-60A / 480Y/277V AC, 50/60Hz
    • Also DC rated
    • 480Y/277V AC
      0.3-25A: 1 pole - 42V DC; 2 Pole - 80V DC
      30-60A: 1 pole - 24V DC; 2 Pole - 60V DC
    • 10kA Short Circuit Withstand Capacity
    • Applications Include: AC Motor Starting, Across the Line, AC General Use,
      AC Resistance, AC Discharge Lamps (Ballast), AC Incandescent Lamps (Tungsten)

    DATA SHEET

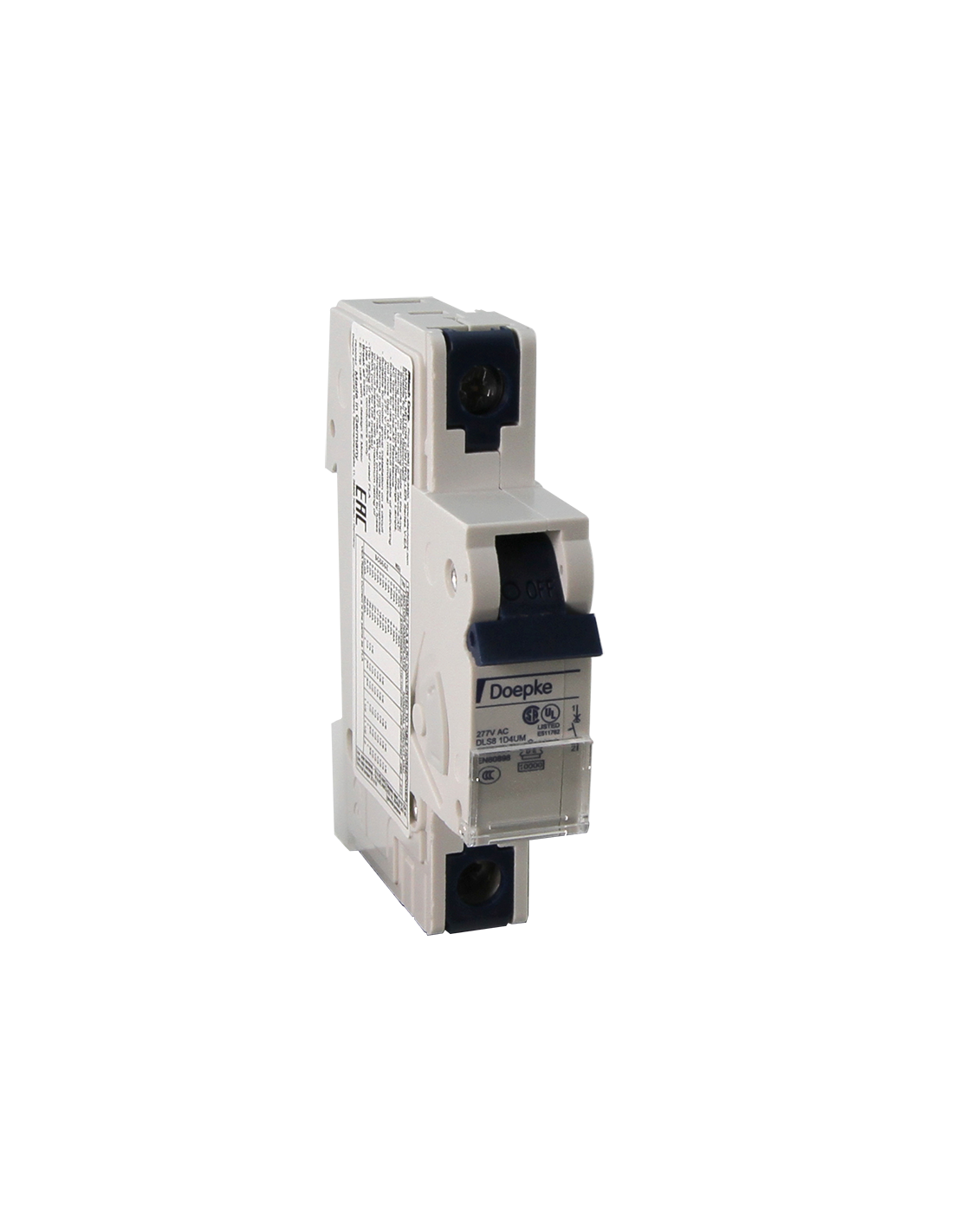

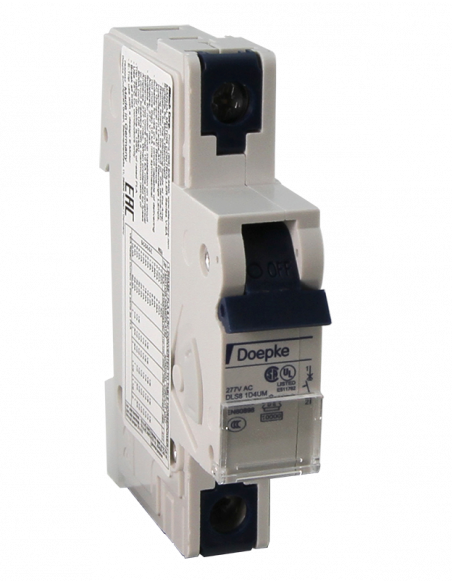

    Product photo imprint will vary depending on part number selection.



    UL Breaker Approval
    UL 508
    Trip Charateristic
    B-Trip
    Rated Current
    16A
    Electrical Current Type
    AC
    Breaker Poles
    1 pole
    1B16UM
