1P18ULC3H/15 - UL 489 - 1 PHASE CUTTABLE BUSBAR - auxiliary spacing
UL 489 Cuttable Busbar System
- Ratings of up to 115A
- UL listed for use with most competitor’s UL 489 Miniature Circuit Breakers
- 30% Installation time savings
- Panel space savings
- Reduced maintenance
- High electrical ratings

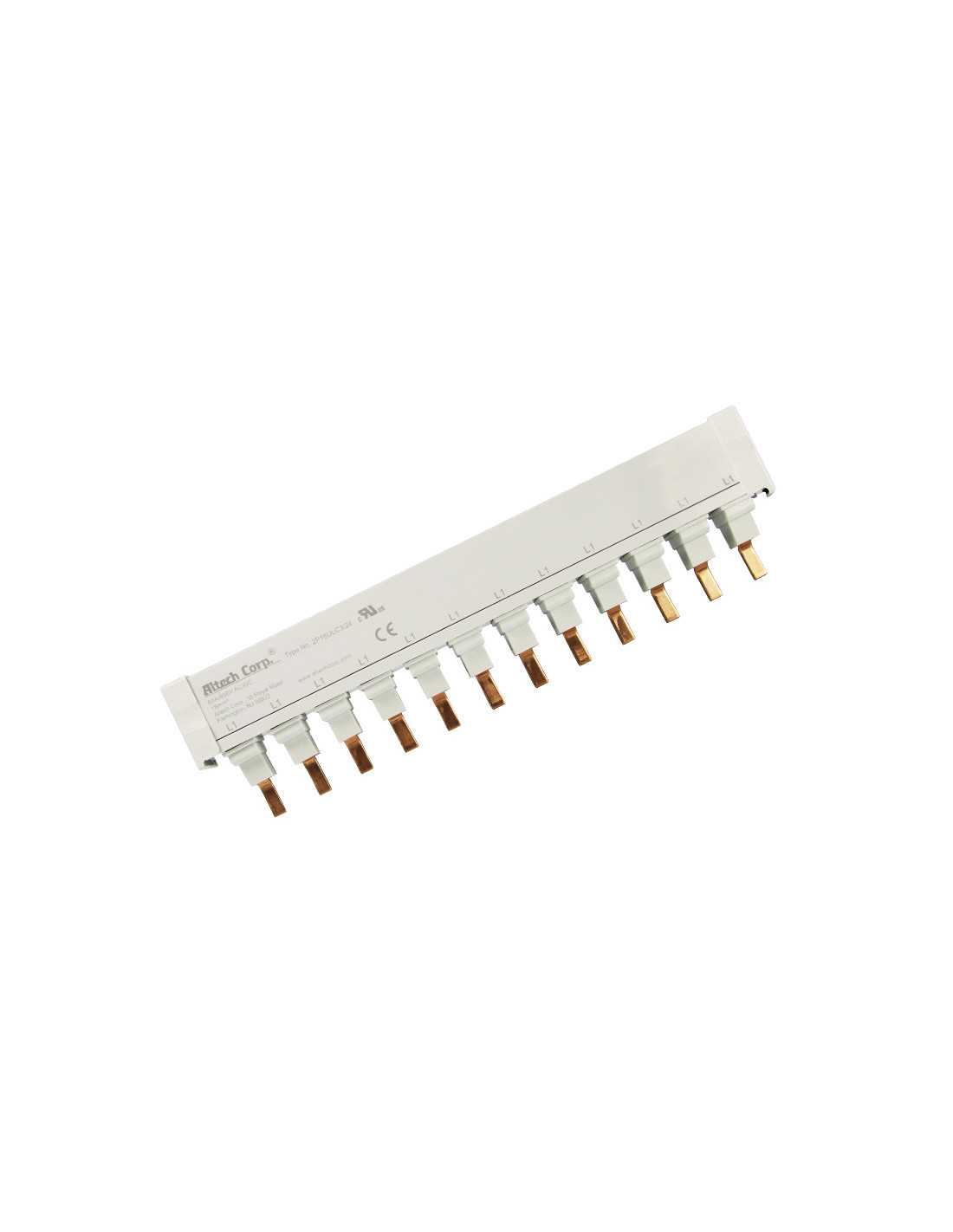

< Product photo imprint will vary depending on part number selection.
- Busbar No. Pins
- 15
- Busbar Phases
- 1 Phase
- Busbar Material
- Copper
- Busbar Insulation Material
- Polyamide
- Busbar Electrical Ratings
- 80A/480V AC
- Busbar Short Circuit Withstand Rating
- 10kA
- Busbar Approval
- UL 489
- Busbar Cuttable
- No
- Busbar Size
- 18 sqmm
- Busbar Length with Endcap
- 396.8
- Busbar Length without Endcap
- 393.8
1P18ULC3H/15
