2P16UL3/6 - UL 489 - 2 PHASE BUSBAR - standard spacing
UL489 Busbar System
- 16mm2 for 115A
- Every pin configuration is possible by combination of existing 6, 12 and 18 pin busbars.
- Power Feeding: Power Feed Lug (115A), Direct Power Feed (115A)
- UL listed for Altech’s L-Series and ABL’s UL-Series of Miniature Circuit Breakers
- UL listed for use with most popular UL489 Miniature Circuit Breakers in the market.

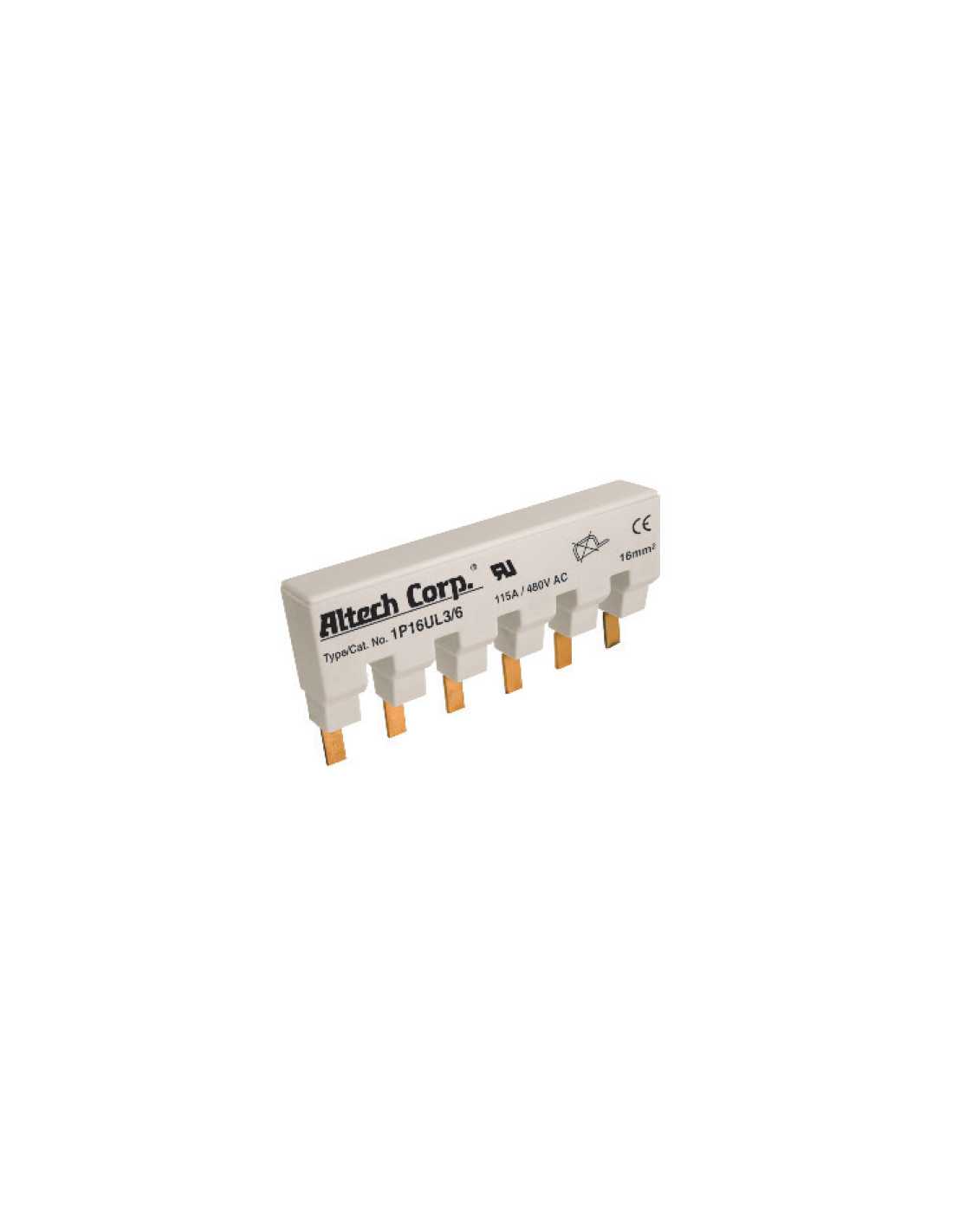

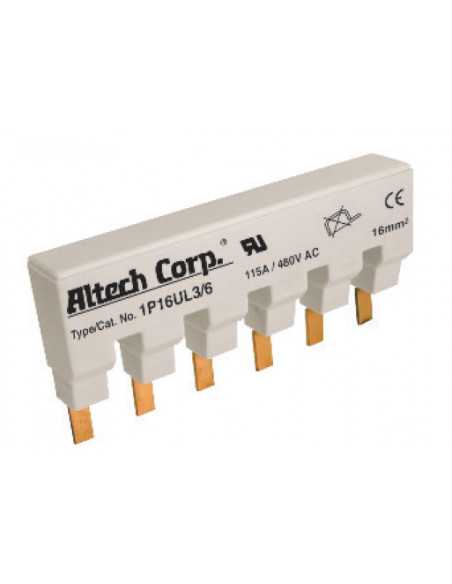

< Product photo imprint will vary depending on part number selection.
- Busbar No. Pins
- 6
- Busbar No. of MMC to Jumper
- Varies

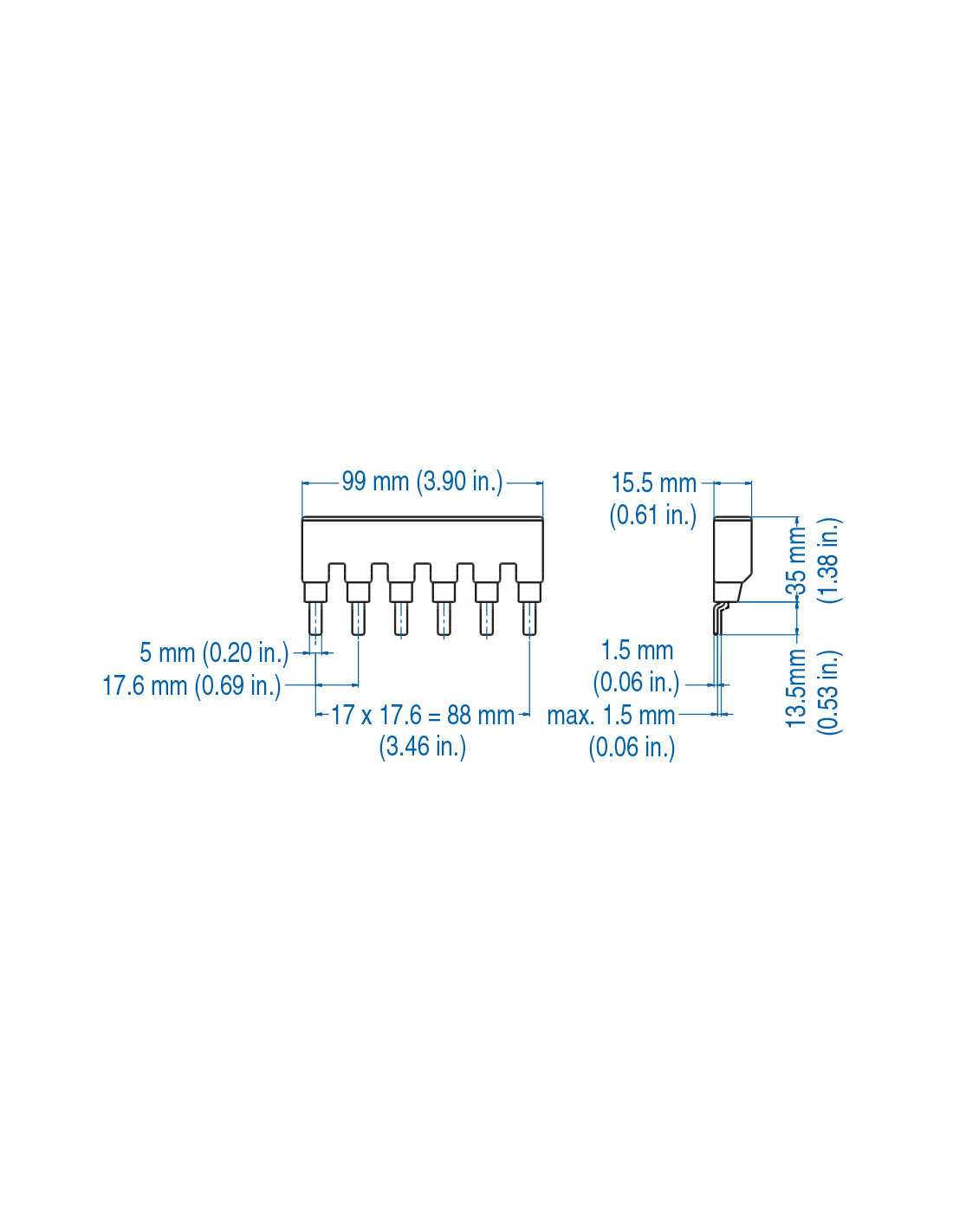

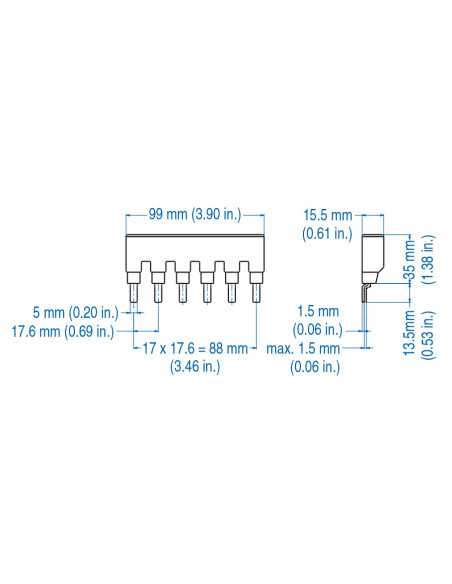

- Busbar Length
- 99
- Busbar Phases
- 2 Phases
- Busbar Material
- Copper
- Busbar Insulation Material
- Polyamide
- Busbar Electrical Ratings
- 115A/600V AC/DC
- Busbar Short Circuit Withstand Rating
- 10kA
- Busbar Approval
- UL 489
- Busbar Cuttable
- No
- Busbar Size
- 16 sqmm
- Busbar Length with Endcap
- 150.4
- Busbar Length without Endcap
- 147.4
2P16UL3/6
