3P18U3/9 - UL 508 & UL 1077 - 3 PHASE BUSBAR - standard pole spacing
UL1077/508 Busbar System
- 1-57 different pin configurations
- 1/2 pole spacing (auxiliary switch) available
- Power Feeding: Power Feed Lugs (115A), Direct Power Feed (115A), Power Feed Block (200A)
- UL recognized and listed for Altech’s R-Series, ABL’s UR, V-EA and MA Series of Manual Motor Controllers and Supplementary Protectors
- UL recognized and listed for use with most popular UL1077 supplementary protectors and UL508 Manual Motor Controllers in the market.
- Customers can cut the Busbar without losing the UL approval
- Line/Load reversible

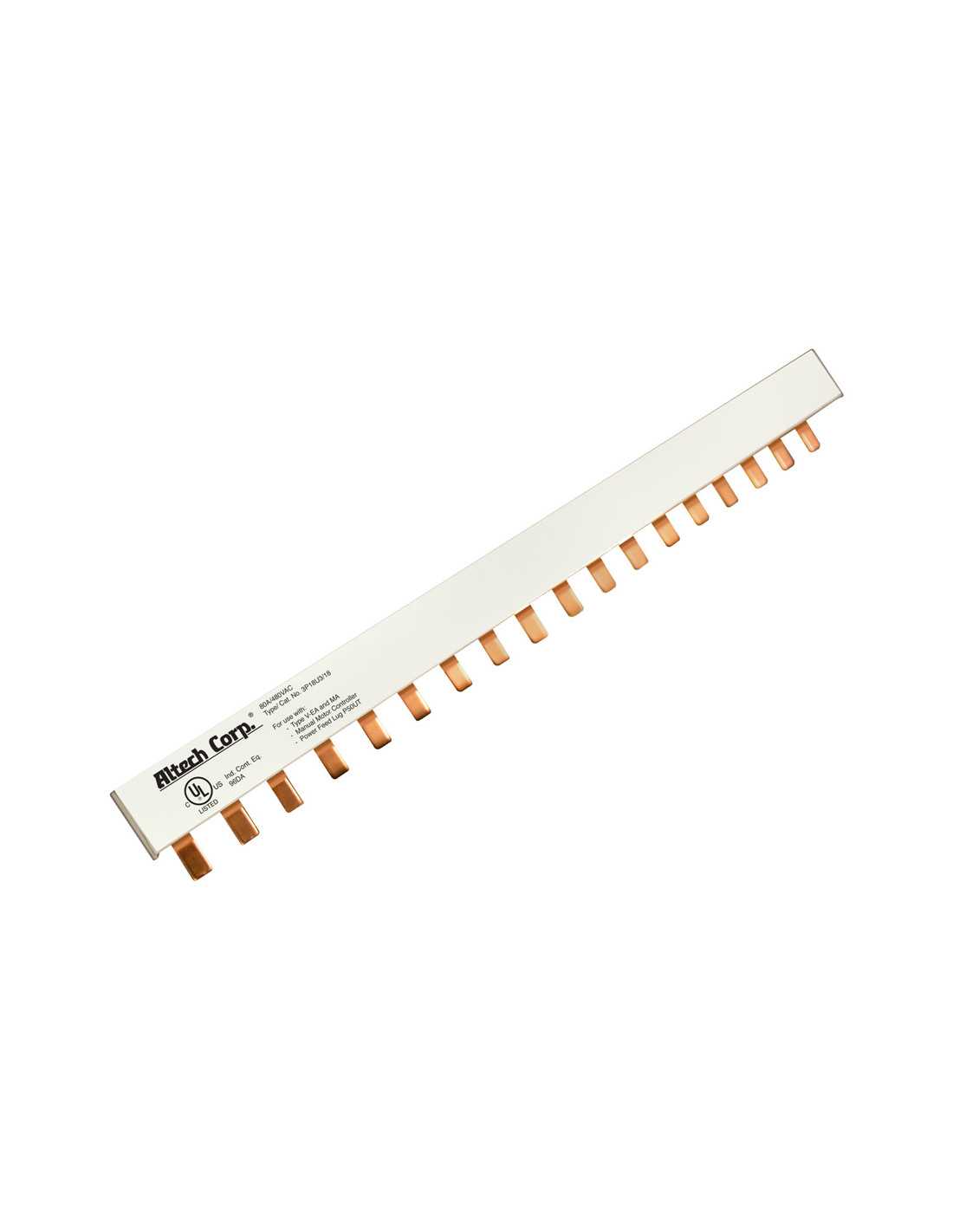

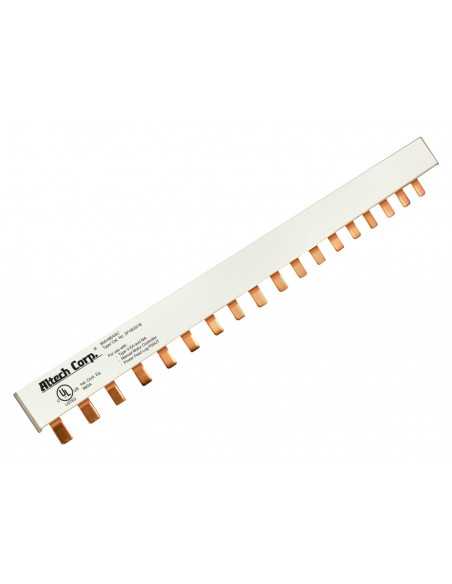

< Product photo imprint will vary depending on part number selection.
- Busbar No. Pins
- 9
- Busbar No. of MMC to Jumper
- 3x3
- Busbar Length
- 155.0
- Busbar Phases
- 3 Phase
- Busbar Material
- Copper
- Busbar Insulation Material
- Polyamide
- Busbar Electrical Ratings
- 18mm2: 80A/480VAC; 25mm2: 100A/480VAC
- Busbar Short Circuit Withstand Rating
- 10kA
- Busbar Approval
- UL 508 / UL 1077
- Busbar Cuttable
- Yes
- Busbar Size
- 18 sqmm
3P18U3/9
