    UL1077/508 Busbar System

    • 1-57 different pin configurations
    • 1/2 pole spacing (auxiliary switch) available
    • Power Feeding: Power Feed Lugs (115A), Direct Power Feed (115A), Power Feed Block (200A)
    • UL recognized and listed for Altech’s R-Series, ABL’s UR, V-EA and MA Series of Manual Motor Controllers and Supplementary Protectors
    • UL recognized and listed for use with most popular UL1077 supplementary protectors and UL508 Manual Motor Controllers in the market.
    • Customers can cut the Busbar without losing the UL approval
    • Line/Load reversible

    DATA SHEET

    VIDEO LINK

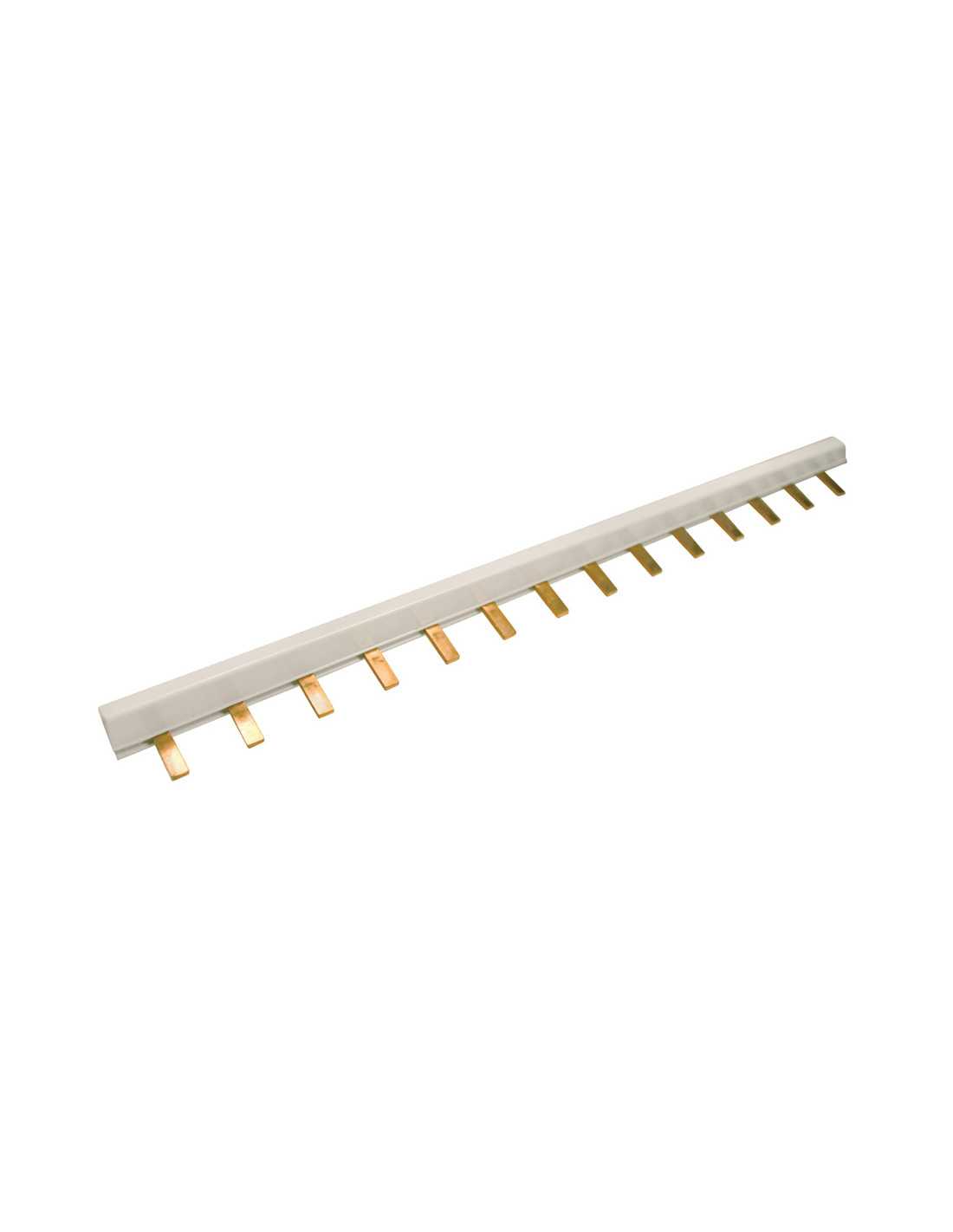

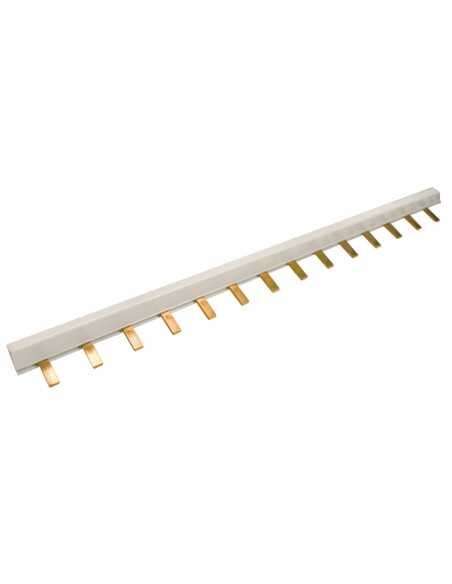

    Product photo may vary depending on part number selection.



    Busbar No. Pins
    19
    Busbar No. of MMC to Jumper
    19x1 pole
    Busbar Length
    498.0
    Busbar Phases
    1 Phase
    Busbar Material
    Copper
    Busbar Insulation Material
    Polyamide
    Busbar Electrical Ratings
    18mm2 (80A) and 25mm 2 (100A)
    Busbar Short Circuit Withstand Rating
    10kA
    Busbar Approval
    UL 508 / UL 1077
    Busbar Cuttable
    Yes
    Busbar Size
    18 sqmm
    1P18U1H/19
