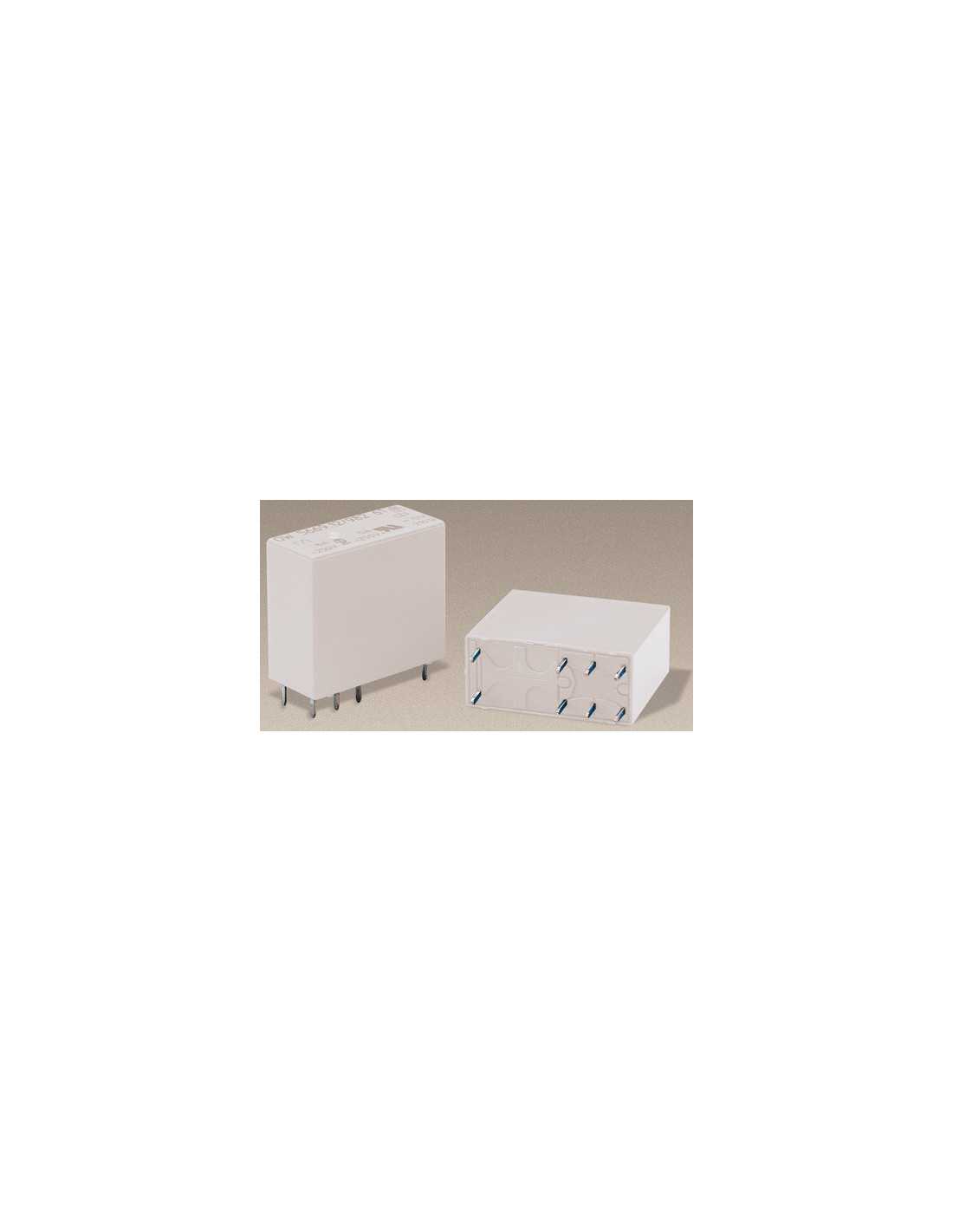

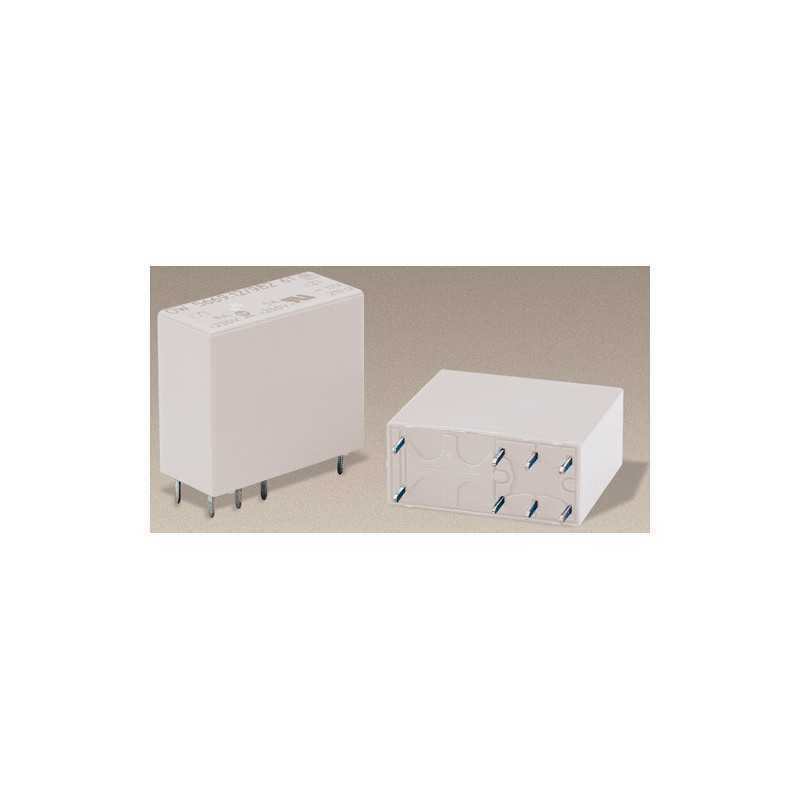

56.OA69.1011S - Safety Relay : OA 5669 : 8A : 10V : 1 NO - 1 NC
56.OA69.1011S
56.OA69.1011S- Safety Relay : OA 5642 : 8A : 6V : 1 NO - 1 NC
Click for Data Sheet
< Product photo may vary depending on part number selection.
Related products and accessories
- Current Rating
- 8A
- Rated Voltage
- 10V
- Contact Arrangement
- 1 NO - 1 NC
- Voltage Range
- 8.0- 16.0V
- Protection Rating
- RTIII solder line proof
- Series
- OA 5669
- Output Contacts
- 2
- International Approvals
- TUV
UL
cUL - Force-guided Contacts
- All gold flash plated
- Coil Resistance (10%)
- 150Ω
- Contact Material
- AgNi10+5μmAu
56.OA69.1011S
