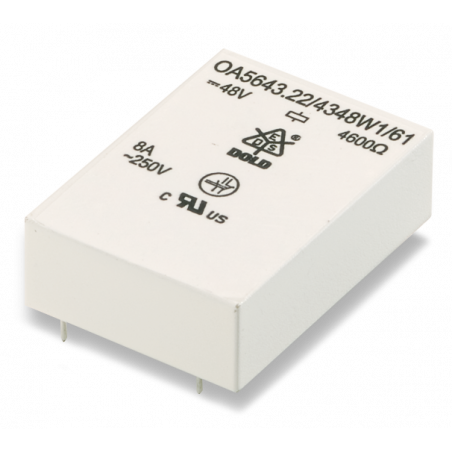

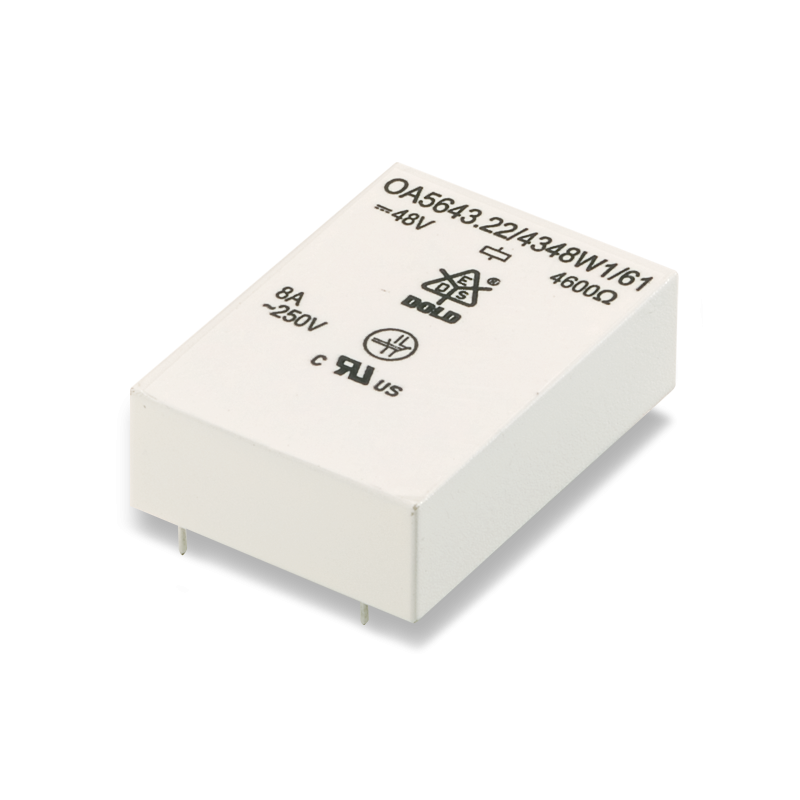

56.OA43.4821N - Safety Relay : OA 5643 : 8A : 48V : 2 NO - 1 NC
56.OA43.4821N
56.OA43.4821N - Safety Relay : OA 5642 : 8A : 6V : 1 NO - 1 NC
Click for Data Sheet
< Product photo may vary depending on part number selection.
- Current Rating
- 8A
- Rated Voltage
- 48V
- Contact Arrangement
- 2 NO - 1 NC
- Voltage Range
- 33.6- 62.4V
- Protection Rating
- RTIII wash proof
- Series
- OA 5643
- Output Contacts
- 2
- International Approvals
- TUV
UL
cUL - Force-guided Contacts
- All gold flash plated
- Coil Resistance (10%)
- 4600Ω
- Contact Material
- AgNi10+0.2μmAu
56.OA43.4821N
No reviews
Tap to zoom
