Technical information

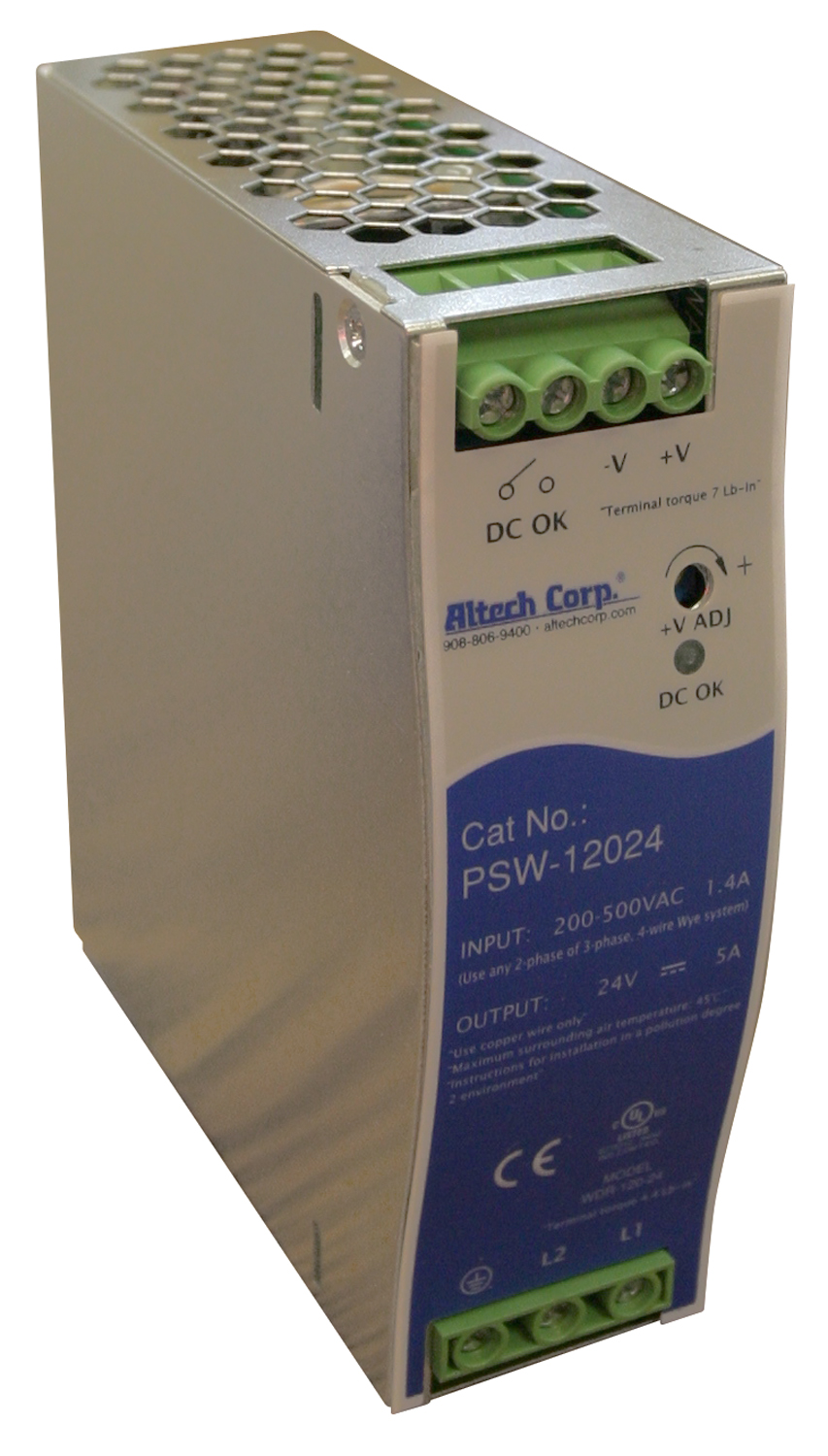

Catalog Number:

PSW-12012
PSW-12024
PSW-12048

• Specification sheet
• Product Photo JPEG
• Product Photo TIF
• Drawing – DWG format
• Drawing – DXF format
• Drawing – PDF format
• Drawing Top View – DWG format
• Drawing Top View – DXF format
• 3D CAD-Drawing – STEP format

NOTE: To view specific files you will need applications such as CADviewer and Acrobat.

Features:

• Single and two phase wide input range 180 ~ 550VAC
• Protections: Short Circuit / Overload / Over Voltage / Overtemperature
• Cooling by free air convection
• Built-in constant current limiting circuit
• DIN rail mountable
• UL508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• Built-in DC OK relay contact
• 3 year warranty
