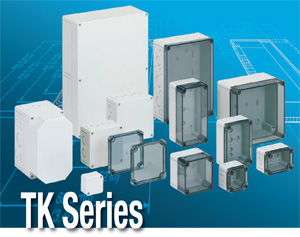

 TK Series

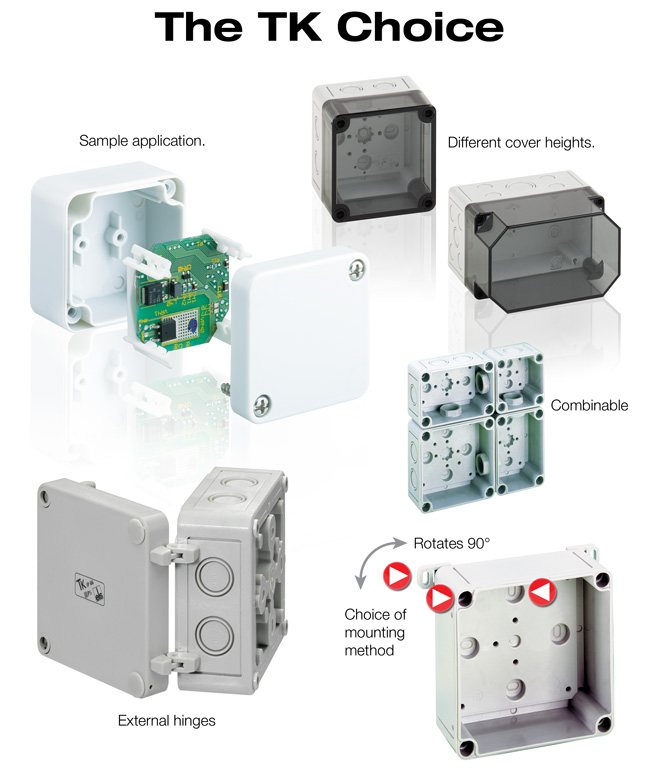

Designed for tough industrial environments and a wide variety of applications, TK Enclosures are available with standard gray or tinted transparent covers in several heights. Sidewalls and endwalls are supplied smooth or with knockouts. Precision molded from impact and flame resistant materials, they offer functionality and appealing solutions for diverse application requirements.

  • 16 different enclosures with up to 3 different cover heights
  • IP66 (NEMA 4X)
  • Polystyrene or Polycarbonate
  • Gray or tinted transparent covers
  • Smooth sidewalls or sidewalls with knockouts
  • Four cover mounting screws
  • Tongue and groove with polyurethane gasket (CFC free)
  • Gasket inserted by robots
  • HF - EMC models available
  • Knockout mounting holes in enclosure base
  • Screw fastening cover design requires six turns to lock
  • Dust and moisture proof
  • Non flammable and halogen free
Drawing and Data Files (If files do not automatically open, save to disk and than open.)
TK 55 – Polycarbonate – 50 x 52 mm (1.97 x 2.05 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK75 – Polycarbonate – 65 x 50 mm (2.56 x 1.97 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 77 – Polystyrene and Polycarbonate – 65 x 65 mm (2.56 x 2.56 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 97 – Polystyrene and Polycarbonate – 94 x 65 mm (3.70 x 2.56 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 99 – Polystyrene and Polycarbonate – 94 x 94 mm (3.70 x 3.70 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1111 – Polystyrene and Polycarbonate – 110 x 110 mm (4.33 x 4.33 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1309 – Polystyrene and Polycarbonate – 130 x 94 mm (5.12 x 3.70 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1313 – Polystyrene and Polycarbonate – 130 x 130 mm (5.12 x 5.12 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1809 – Polystyrene and Polycarbonate – 180 x 94 mm (7.09 x 3.70 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1811f – Polystyrene and Polycarbonate – 180 x 110 mm (7.09 x 4.33 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1811 – Polystyrene and Polycarbonate – 180 x 110 mm (7.09 x 4.33 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1813f – Polystyrene and Polycarbonate – 180 x 130 mm (7.09 x 5.12 in.)
3D STEP DWG PDF – Specification pages
TK 1813 – Polystyrene and Polycarbonate – 180 x 130 mm (7.09 x 5.12 in.)
3D STEP DWG PDF – Specification pages
TK 1818f – Polystyrene and Polycarbonate – 182 x 180 mm (7.17 x 7.09 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 1818 – Polystyrene and Polycarbonate – 182 x 180 mm (7.17 x 7.09 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 2518f – Polystyrene and Polycarbonate – 254 x 180 mm (10.0 x 7.09 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 2518 – Polystyrene and Polycarbonate – 254 x 180 mm (10.0 x 7.09 in.)
3D STEP DWG PDF 3D PDF Specification pages
TK 3625 – Polystyrene and Polycarbonate – 360 x 254 mm (14.2 x 10.0 in.)
3D STEP DWG PDF 3D PDF Specification pages
