High quality materials and an innovative design make the new GEOS series a universal solution and longlasting enclosure for indoor and outdoor applications. The UV and weather resistance of the high-quality polycarbonate and the new and innovative “Drain Protect” seal system guarantee optimal protection against most environmental influences, as well as rain, cold and heat. Even in tough conditions caused by aggressive atmospheres, oils, greases or mechanical stresses, you can rely on the GEOS enclosure. Certifications for the most varied applications give the user confidence at all times.
GEOS Quick Introduction
Tough
UV and weather resistant
Corrosion resistant
Temperature resistant -35° to 80°C
Rugged
High impact resistance - IK 09
Flexible

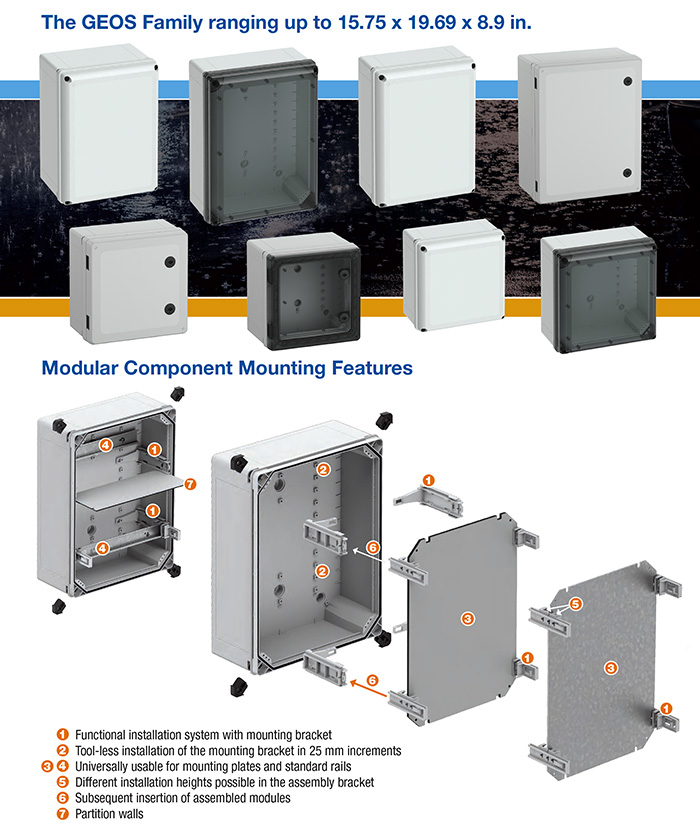

Modular component mounting system
Lightweight
Easily machined
Multiple mounting and closure options
SAFE

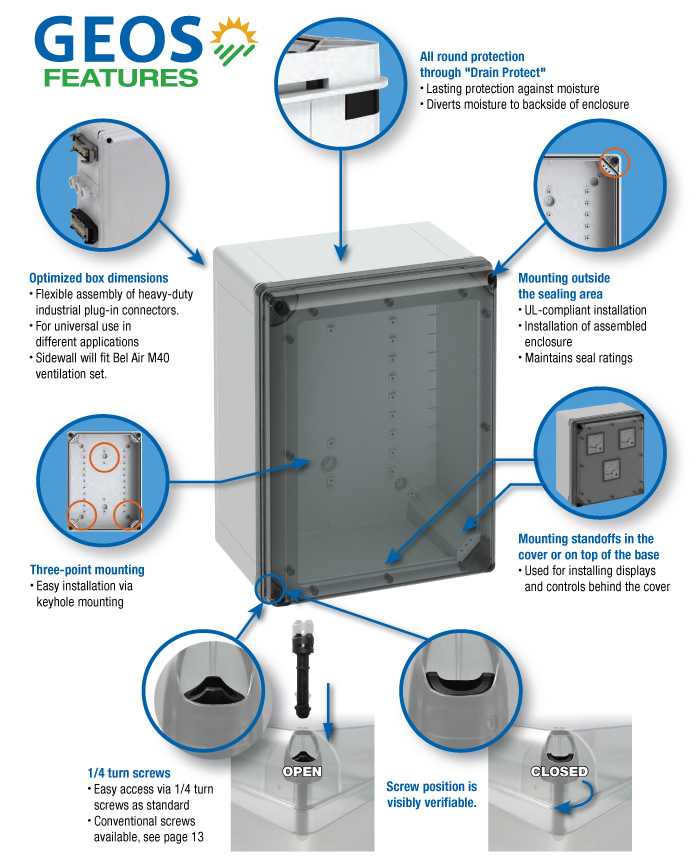

Drain Protect seal system

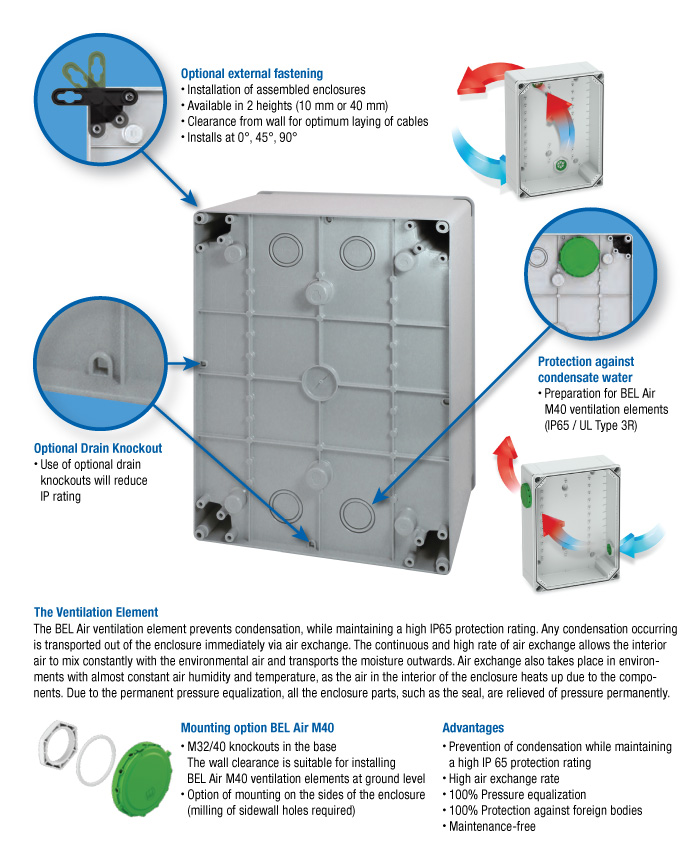

Air ventilation element option
High protection rating IP 67
Insulated protection
Safety agency approvals (UL, CSA)

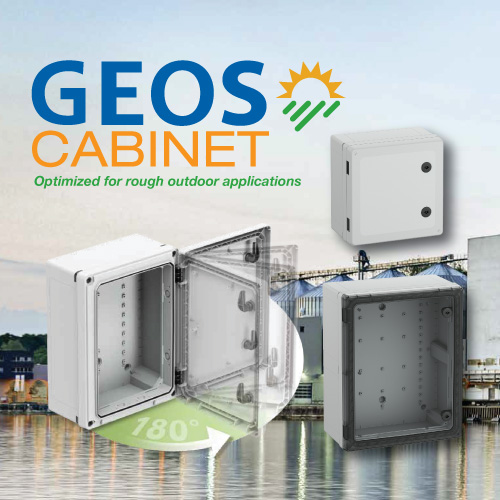

Altech now offers a hinged series
called GEOS Cabinet.
Features
Cover frame with hinged door
Horizontal or vertical hinge layout
Locking system - cam lock (3mm - two bit key)
Transparent and opaque doors
3 base sizes
Up to 2 enclosure heights
Cabinets tested according to IEC 61439, IEC 62208, UL 50, UL 50E, CSA 22.2
UL TYPE 4X rated
Advantages
Can be opened quickly and easily and closed safely
Good operability of components
No restrictions for the assembly of internal fittings
Doors with wide opening angle > 180°
Access to the interior space with standard locking system
(3 mm - two-bit key)
Alternative locking inserts available as accessories
