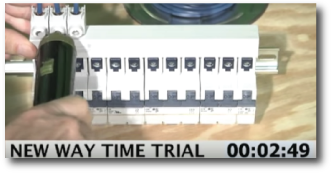

new busbar times

Altech UL489 Busbar

click here to learn more

UL489
Busbar System
  • The Altech Busbar System is an innovative way to jumper up to 57 poles of Miniature Circuit Breakers (MCB).

    The advantages of this busbar system are:

    • 30% Installation time savings
    • Panel space savings
    • Reduced maintenance
    • High electrical ratings

Altech UL489 Busbar

click here to learn more

Cuttable UL489
Busbar System
  • Ratings of up to 115A
  • UL listed for use with most competitor’s UL 489 Miniature Circuit Breakers

    • 30% Installation time savings
    • Panel space savings
    • Reduced maintenance
    • High electrical ratings

Altech UL489 Busbar

click here to learn more

Cuttable UL508 / UL1077
Busbar System
  • The Altech Busbar System is an innovative way to jumper up to 57 poles of Manual Motor Controllers (MMC) and Supplementary Protectors (SP).

    The advantages of this busbar system are:

    • 30% Installation time savings
    • Panel space savings
    • Reduced maintenance
    • High electrical ratings

Altech Busbar Systems, UL489 and UL1077/508

Altech Corp., a leading supplier of busbar systems in the US Market, has expanded its Busbar System Line and added a new Power Distribution System to its broad range of products.

Altech has an established line of UL1077/ UL508 Busbars with ratings up to 200A. They are UL recognized and listed for use with most competitor’s supplementary protectors and manual motor controllers.

Altech has added a new line of UL489 Busbars to its product range with ratings of up to 115A. They are UL recognized for use with most of Altech’s competitor’s UL489 Miniature Circuit Breakers.

Altech’s new Power Distribution System is a new way to simplify existing wiring methods inside a panel. It is modular, highly efficient and cost effective.

The Distribution Blocks are already established and the line was expanded for a greater variety. They are rated up to 310A. A new range of Input connector Blocks up to 800A was introduced to complete Altech’s Power Distribution Block line.



Altech UL489
Busbar System

The Altech Busbar System is an innovative way to jumper up to 57 poles of Miniature Circuit Breakers (MCB).

The advantages of this busbar
system are:

  • 30% Installation time savings
  • Panel space savings
  • Reduced maintenance
  • High electrical ratings
UL489
Busbar System Features
  • Every pin configuration is possible by combination of existing 6, 12 and 18 pin busbars.
  • Power Feeding:
    Power Feed Lug (115A), Direct Power Feed (115A)
  • UL listed for Altech’s L-Series of Miniature Circuit Breakers
  • UL listed for use with most popular UL489 Miniature Circuit Breakers in the market.


Altech UL1077/508
Busbar System

The Altech Busbar System is an innovative way to jumper up to 57 poles of Manual Motor Controllers (MMC) and Supplementary Protectors (SP).

The advantages of this busbar system are:

  • 30% Installation time savings
  • Panel space savings
  • Reduced maintenance
  • High electrical ratings

Click here for UL1077/508 pdf file.

UL1077/508
Busbar System Features
  • 1-57 different pin configurations
  • 1/2 pole spacing (auxiliary switch) available
  • Power Feeding:
    Power Feed Lugs (115A), Direct Power Feed (115A), Power Feed Block (200A)
  • UL recognized and listed for Altech’s R-Series, V-EA Series and MA Series of
    Manual Motor Controllers and Supplementary Protectors
  • UL recognized and listed for use with most popular UL1077 supplementary
    protectors and UL508 Manual Motor Controllers in the market.
  • Customers can cut the Busbar without losing the UL approval
  • Line/Load reversible

UL489 Busbar Power Feed Devices and Accessories
Power Feed Lugs Modular Direct Power Feed Insulation Caps

UL1077/508 Busbar Power Feed Devices and Accessories
Power Feed Lugs Modular Direct Power Feed Power Feed Block
End Caps Insulation Caps





Modular
APD System

Altech’s modular Power Distribution (APD) System is a new way to simplify existing wiring methods!

The modular APD system provides flexible solutions for busing common power to many different electrical components. Components can be easily added or removed using quick disconnects saving valuable time and cost during installation and maintenance. The APD system also provides an organized method of wiring, that would simplify the wiring schematics for troubleshooting, while reducing the use of excessive wires and cables.

The APD system allows multiple connections per phase for many applications, such as:

  • Supplying separate voltages to auxiliary circuits and control circuits for relays, contactors, timers, etc.
  • Supplying power to circuit breakers, motor starters, switches, contactors, etc.

Two conductors are housed within a rigid plastic insulation housing suitable for voltages up to 600VAC. The conductors have current ratings of 25A, 63A or 80A.

The entire system is touch proof (IP20).

Click here for Modular APD System pdf file.


Brass and Aluminum
One Phase Power
Distribution Blocks

  • Quick mounting and wiring
  • IP20 Finger Safe
  • DIN Rail or Panel Mount
  • Blocks fit with other DIN Rail mountable modular devices (height 95mm, depth 44.5mm)
  • Accessories increase the number of outputs with only one input (applies only to 38041 and 38032)
  • No caps to open or remove
  • Material
    Housing: Polyamide
    Metal Body: Brass

Click here for One Phase Brass.

Click here for One Phase Aluminum


Brass and Aluminum
Three Phase Power
Distribution Blocks

  • Quick mounting and wiring
  • IP20 Finger Safe
  • DIN Rail or Panel Mount
  • Blocks fit with other DIN Rail
    mountable modular devices
  • Same compact size for both ratings
  • No caps to open or remove
  • Material
    Housing: Polyamide
    Metal Body: Brass

Click here for Three Phase Brass

Click here for Three Phase Aluminum


Splicer Terminal Blocks

  • Quick mounting and wiring
  • IP20 Finger Safe
  • DIN Rail or Panel Mount
  • No caps to open or remove
  • Material
    Housing: Polyamide
    Metal Body: Aluminum

Click here for Splicer pdf file.
