Circuit Protection Selection Page

 DLS8

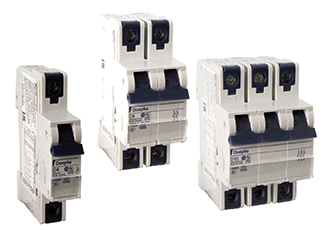

UM Series
UL508 Listed Manual Motor Controllers
“Suitable as Motor Disconnect”
  • DIN Rail Mounted
  • 17.5mm width per pole
  • Thermal Magnetic

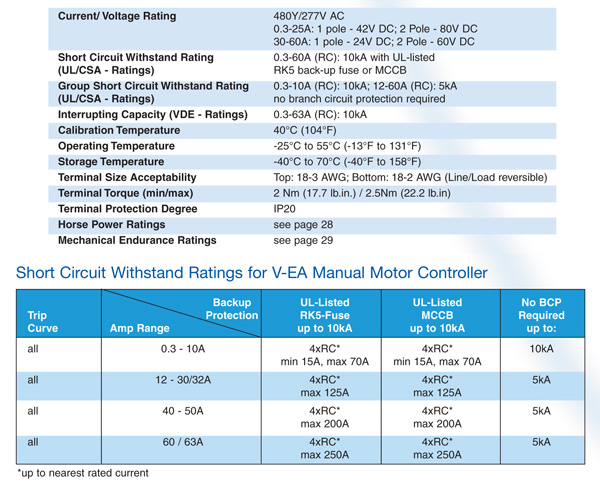

  • 0.3-60A / 480Y/277V AC, 50/60Hz
  • 10kA Short Circuit
    Withstand Capacity
  • Applications Include:
    • AC Motor Starting, Across the Line
    • AC General Use
    • AC Resistance
    • AC Discharge Lamps (Ballast)
    • AC Incandescent Lamps (Tungsten)
Altech L Series Circuit Breakers
Altech L Series Circuit Breakers

Single Page PDF Data Sheets

1 Pole 2 Pole 3 Pole
UL508
click here for the older model UL508 data sheets

Drawing Files

1 Pole 2 Pole 3 Pole
UL508

1st - Right click and save target file to your computer.
2nd - Open with your CAD application.
