Metal Body Limit Switches

Altech Switch Catalog

TYPES

  • Keyed Safety Switches
  • Solenoid Locking Safety Switches
  • Hinged Safety Switches
  • Non-Contact Safety Switches
  • Safety Rope Pull Switches
  • Standard Rope Pull Switches
  • Double Sided Rope Pull Switches
  • Safety Relays

For other Safety Products click below:

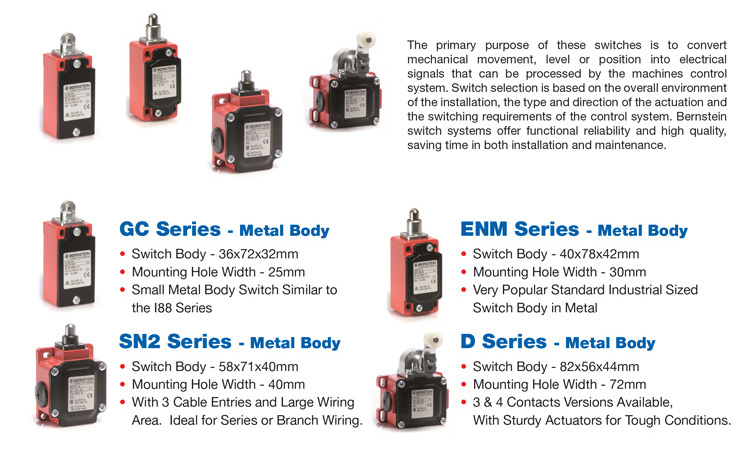

Metal Body Limit Switches - click for introduction PDF
for Position, End of Travel, Production Detection & Safety Application
M49

M49 Series

  • Flat and compact design
  • Pre-installed connecting cable (1m length) for quick and easy installation
  • Top-mounting versions available
  • Cable or M12 outlet on the side or at the bottom
  • High protection class IP67
  • For safety applications to DIN EN 60947-5-1 (positive break)

Click to download this catalog section

M49 drawing
GC

GC Series

  • Protection class IP65 to VDE 0470 T1
  • Enclosure: Die-cast aluminium
  • Cover: Sheet aluminium
  • Actuator can be repositioned by 4 x 90°
  • Cable entry M20 x 1.5
  • Connection designation to DIN EN 50013
  • Metal actuators for high loads
  • Graduated adjustment of the AH lever

Click to download this catalog section

GC drawing
MN78

MN78 Series

  • 2 or 4 Contact versions available
  • Protection class IP66 and IP67 to EN 60529
  • Enclosure: Die-cast aluminium
  • Cover: Aluminium
  • Actuator rotatable by 8 × 45°
  • Cable entry M20 × 1.5

Click to download this catalog section

Click to download separate
switches and actuators

Click to download Old Series
/ New Series Cross Reference

MN78 drawing
SN2

SN2 Series

  • Protection class IP65 to VDE 0470 T1
  • Enclosure: Die-cast aluminium
  • Cover: Sheet aluminium
  • Actuator can be repositioned by 4 x 90°
  • Cable entry 3 x M20 x 1.5
  • Connection designation to DIN EN 50013
  • Metal actuators for high loads
  • Graduated adjustment of the AH lever

Click to download this catalog section

SN2 drawing
D

D Series

  • Protection class IP65 according to VDE 0470 T1
  • Enclosure: Die-cast aluminium
  • Cover: Sheet aluminium
  • Actuator rotable by 4 x 90° (depending on type)
  • Cable entries 2 x M20 x 1.5
  • Connection designation conforming to DIN EN 50013
  • Sturdy contacts
  • Hard wearing guide bushes

Click to download this catalog section

D drawing
Accessories

Accessories



Click to download Connector Kits

Click to download Cable Glands & Adpters



Technical Information

Click to download this catalog section





For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
